Machine Retrofits 1 - Forest-Liné gantry mill

An easy on the eyes Centroid HMI with an uncluttered functional layout

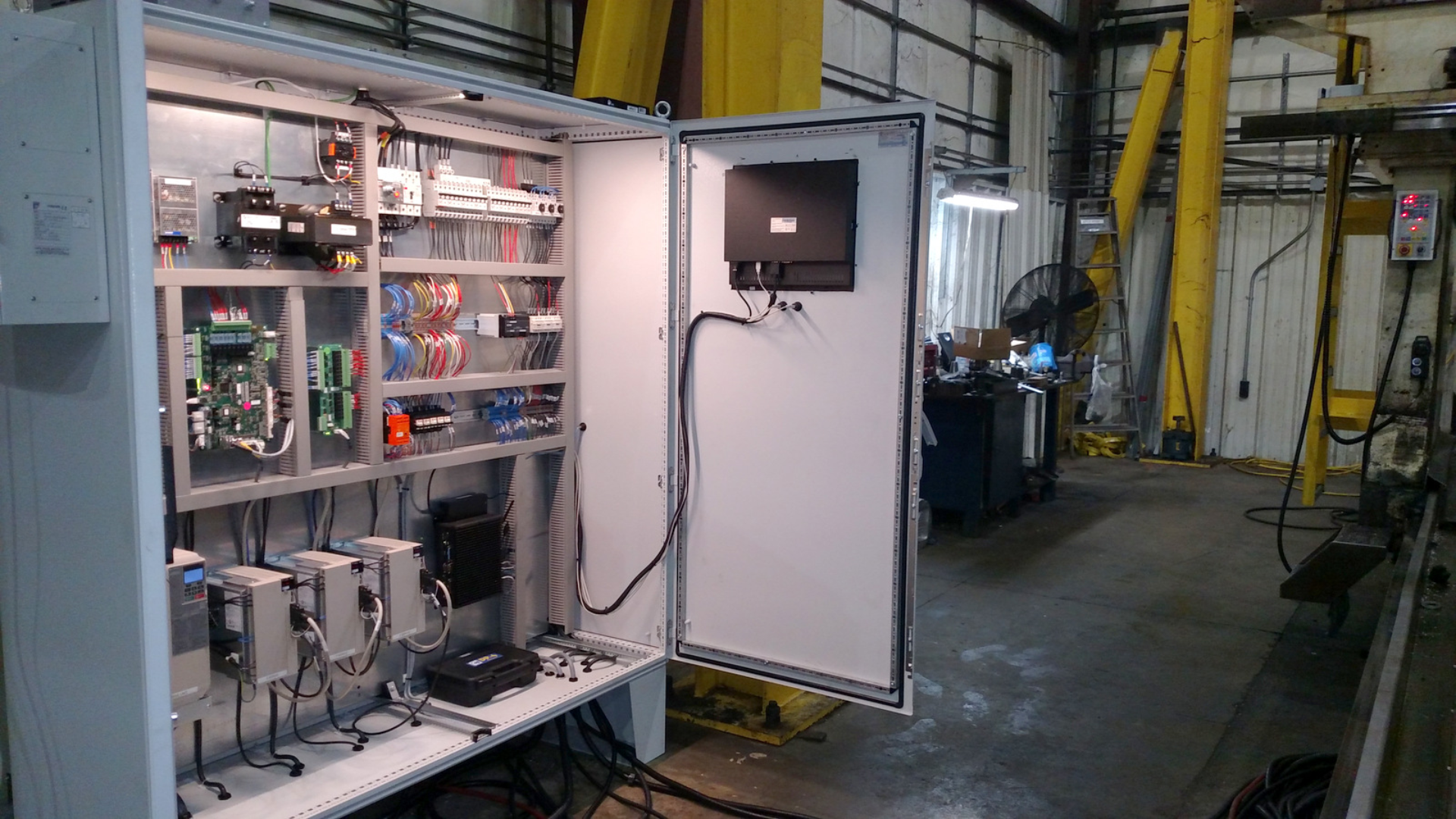

Neat wiring with plenty space for maintenance & expansion
Layout for ergonomic access to both HMI & controller

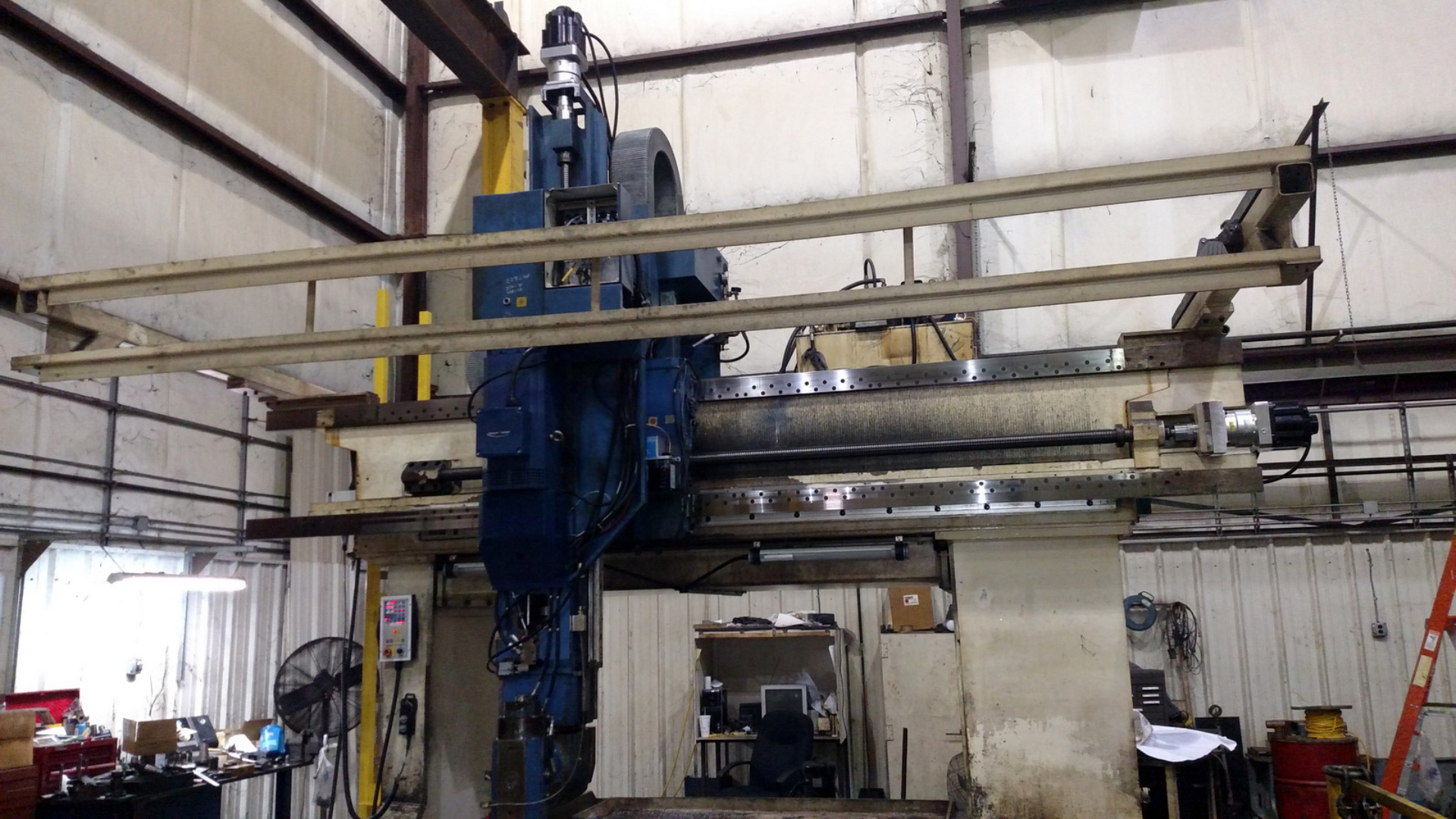

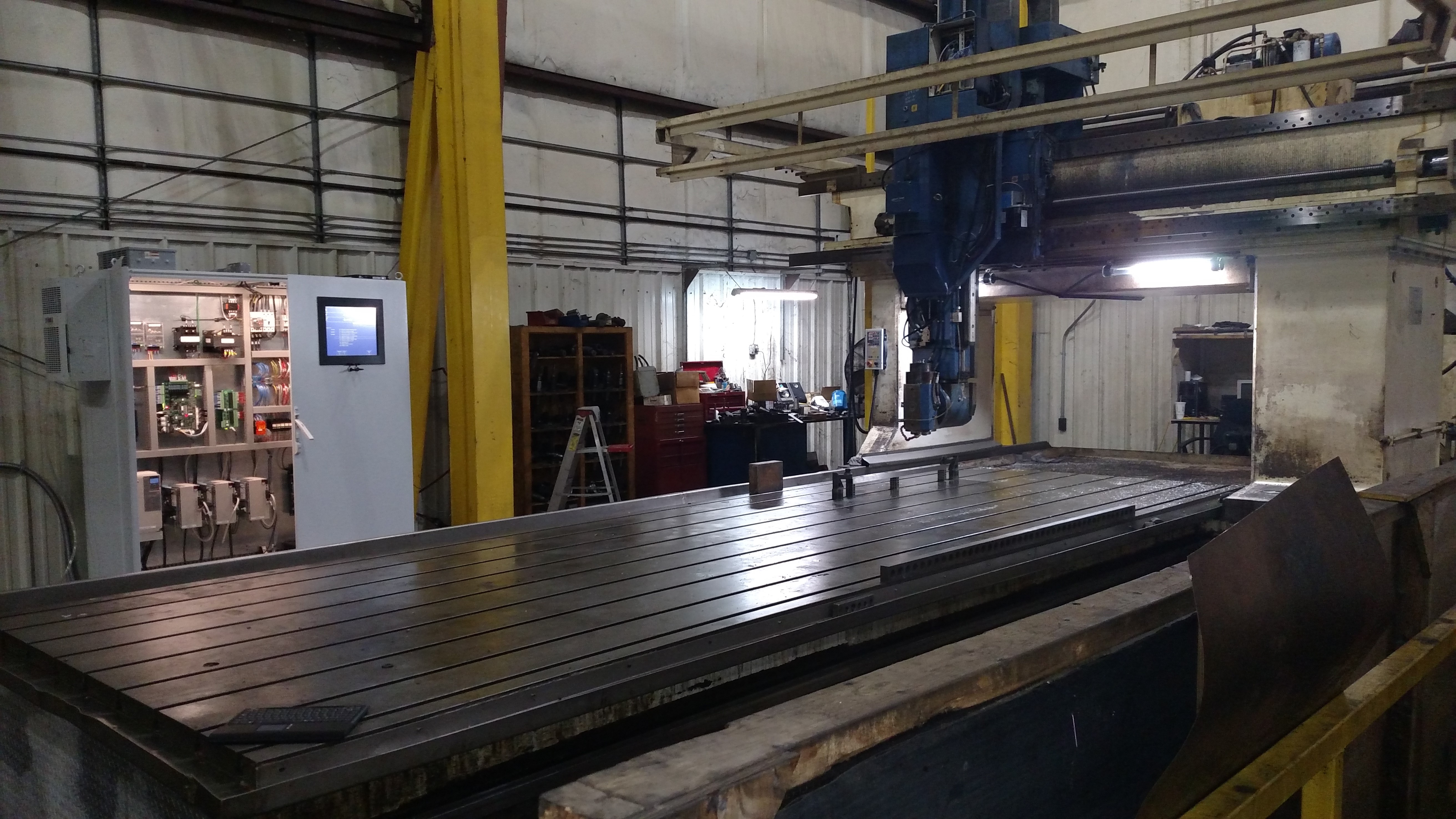

A large Forest-Liné gantry mill after a full retrofit

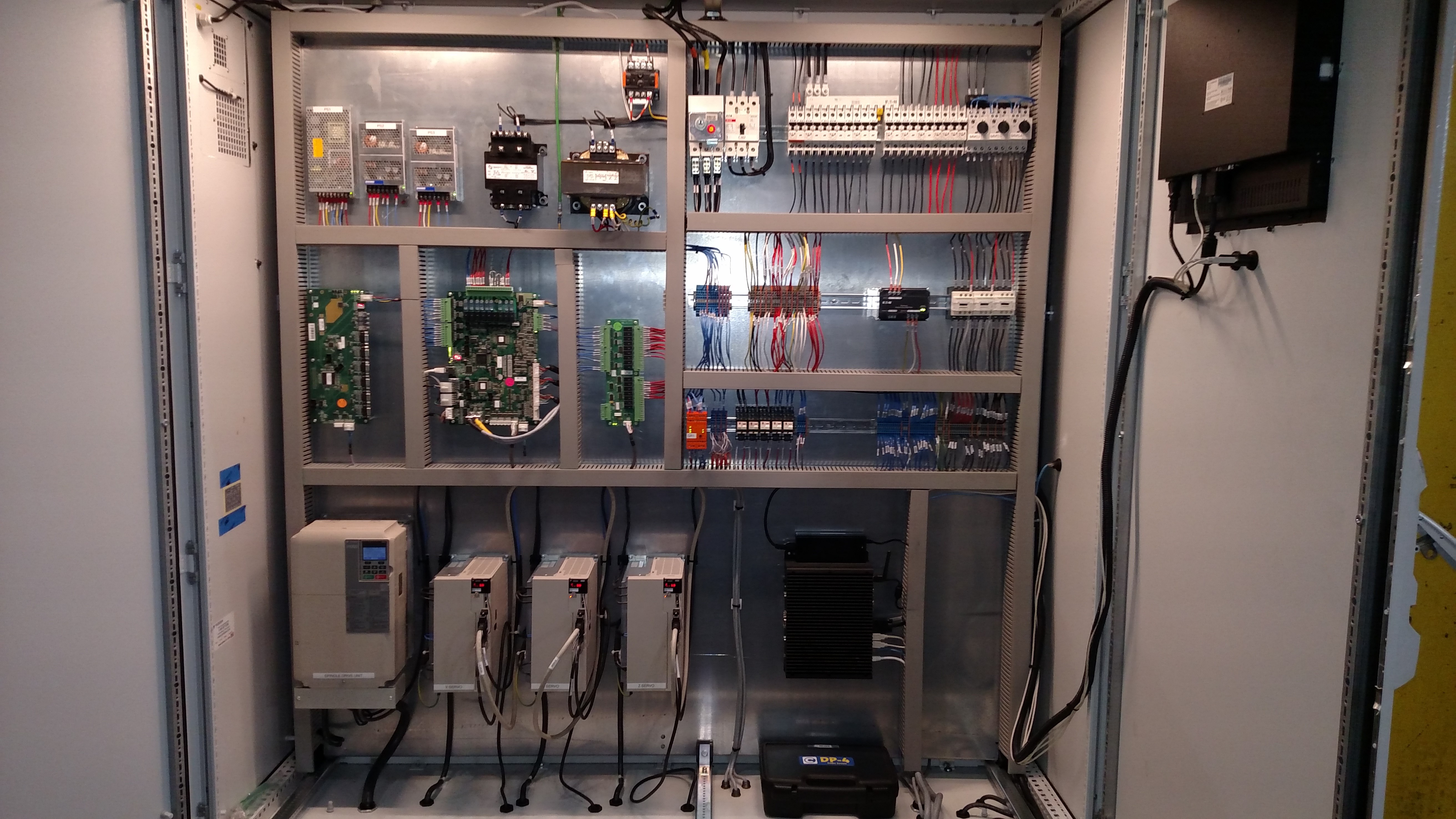

A spacious cabinet layout with plenty of room for heat removal and expansion

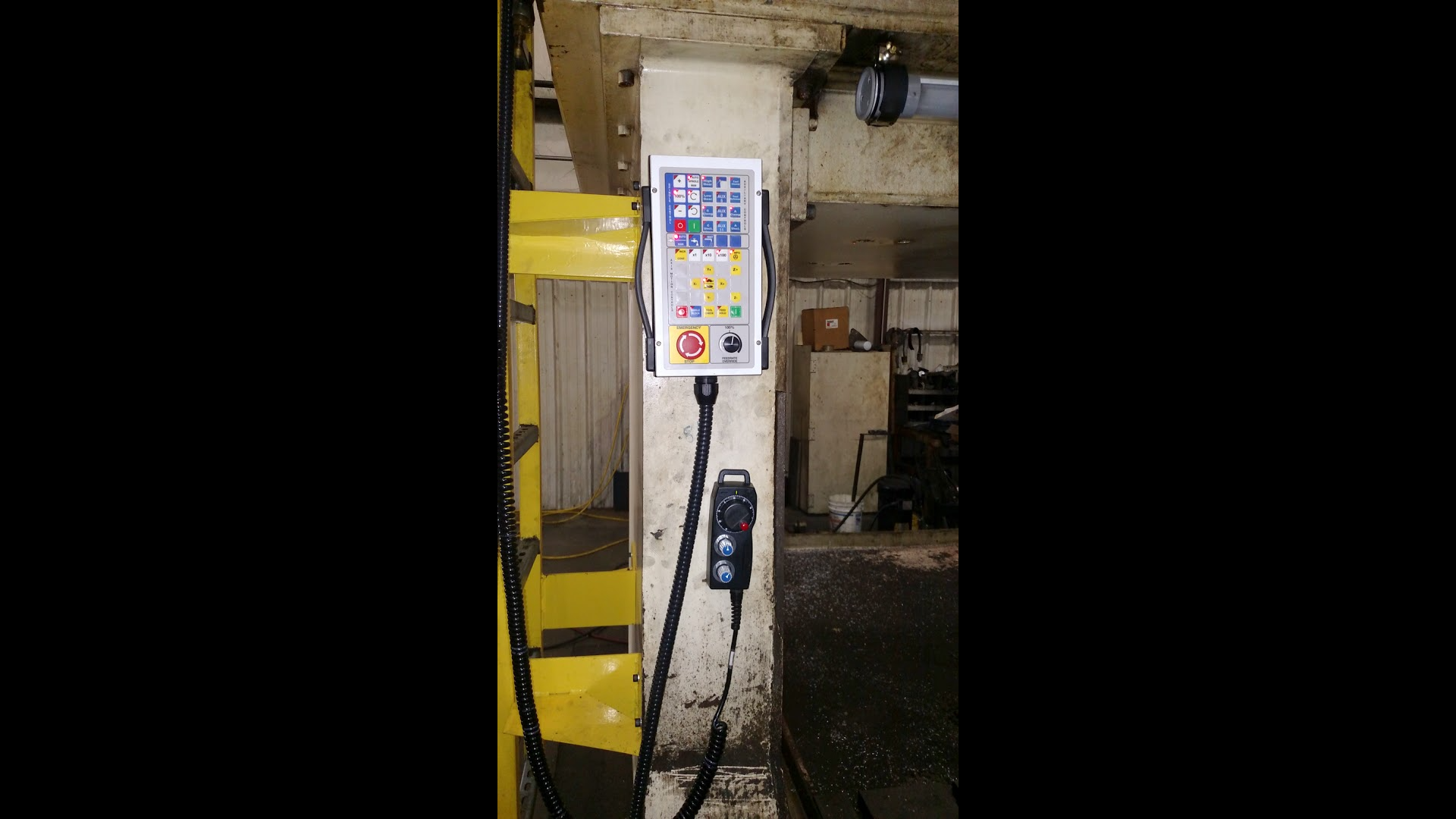

The handheld controls for operator mobility

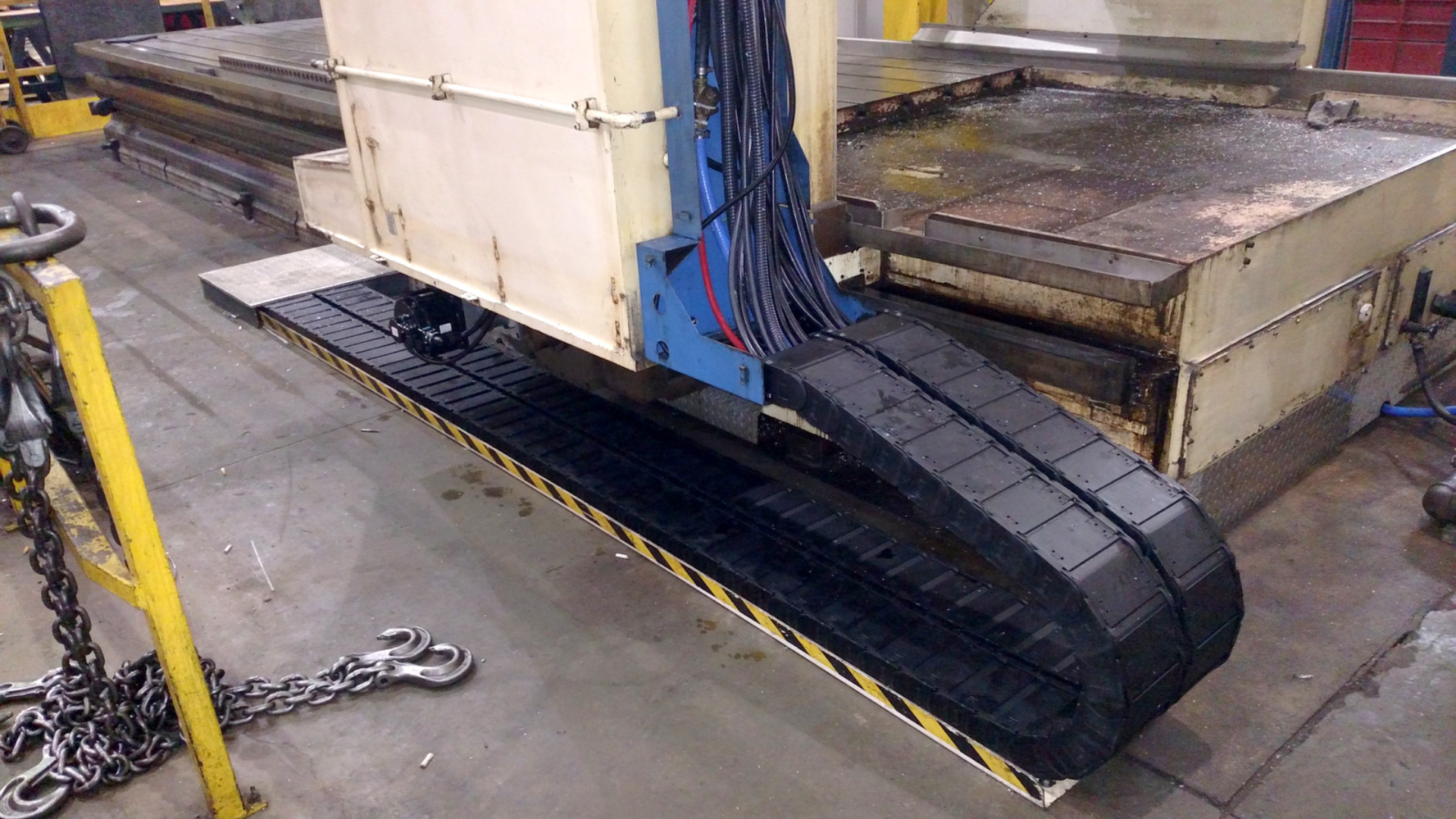

The flexible cable protectors that extend cable life and Overall Equipment Effectiveness

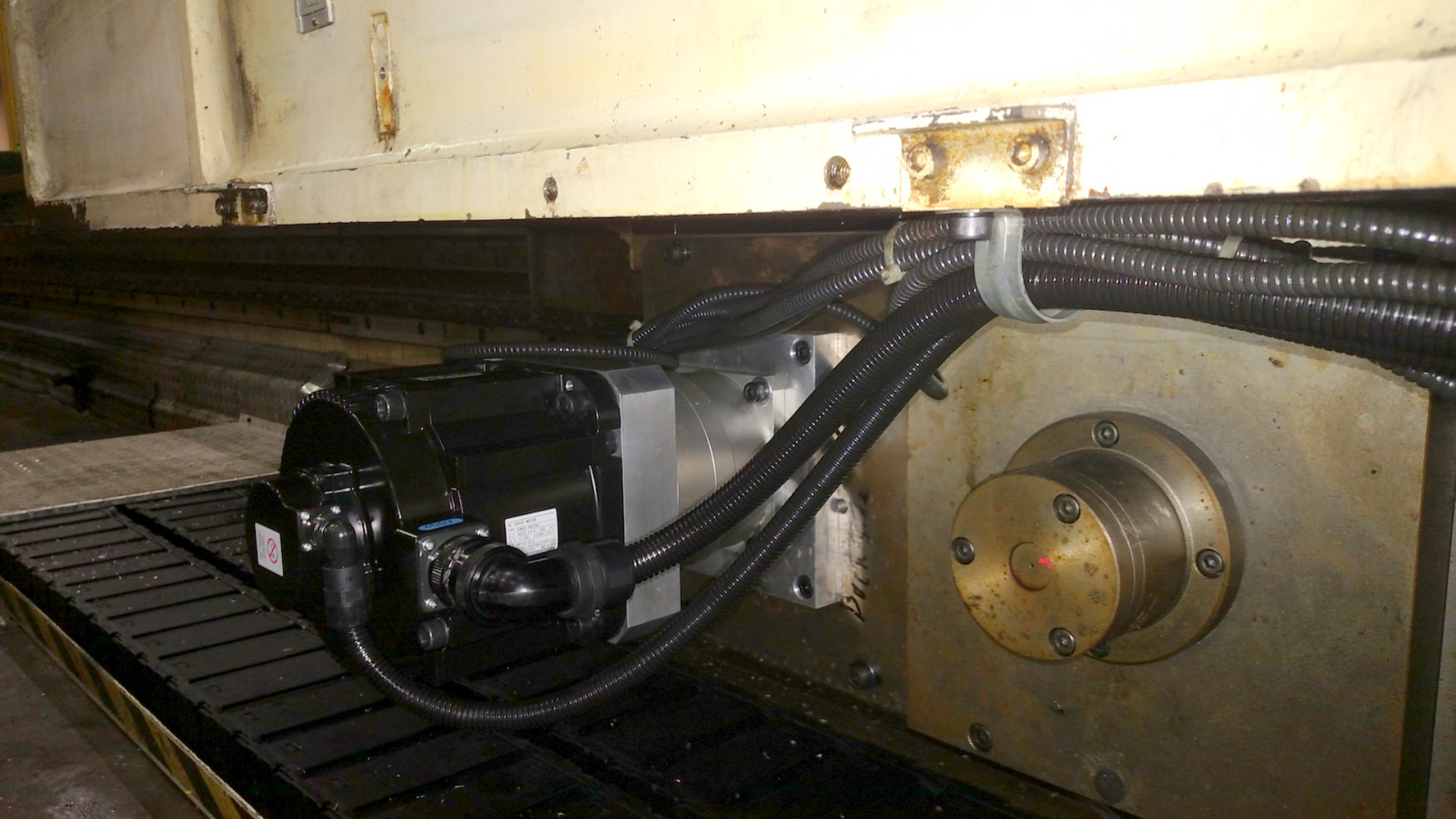

New Y axis motor, encoder and gearbox
Close-up of the new Z axis motor, encoder and gearbox

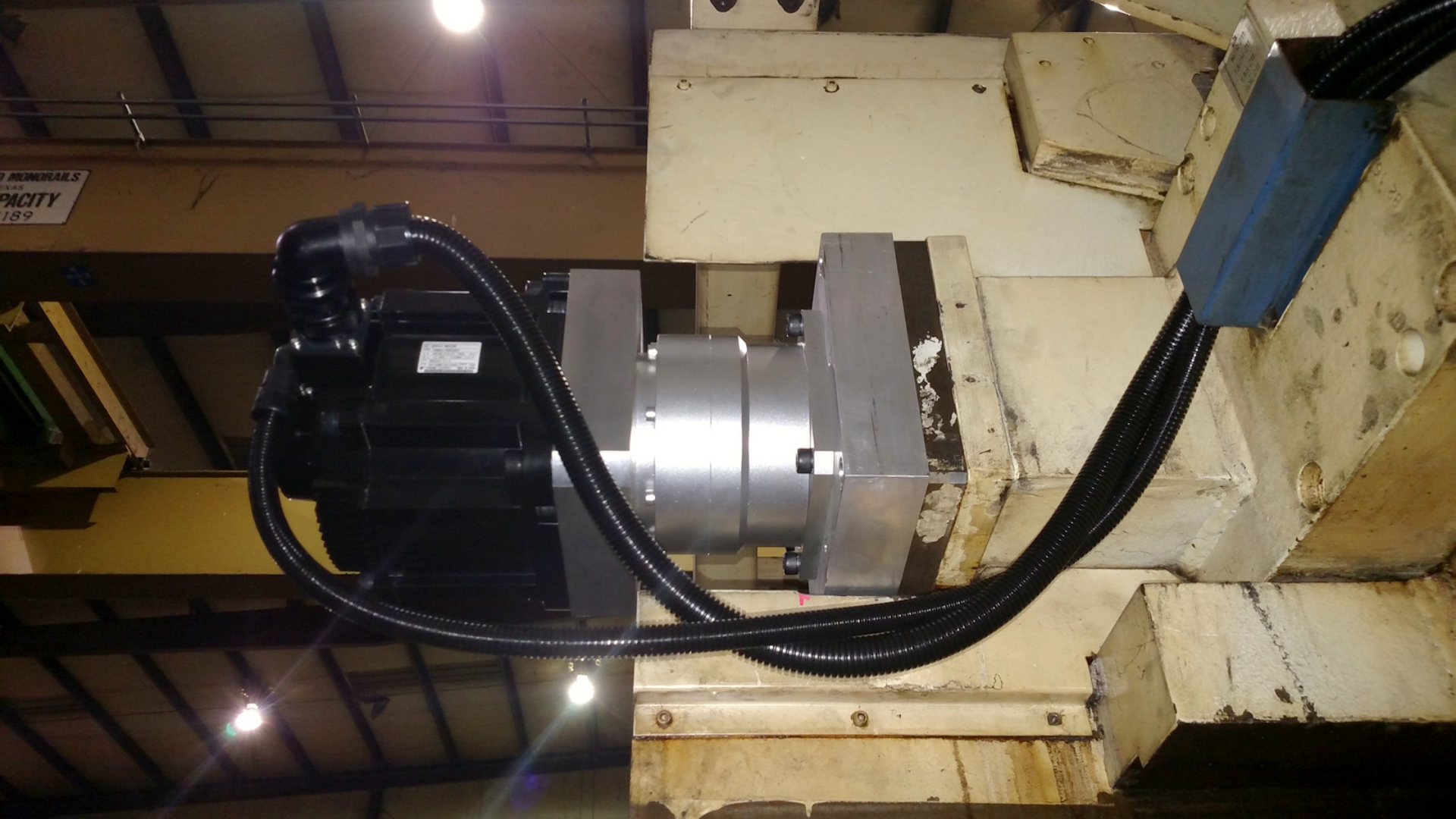

New X-axis & Z-axis motors, encoders and gearboxes

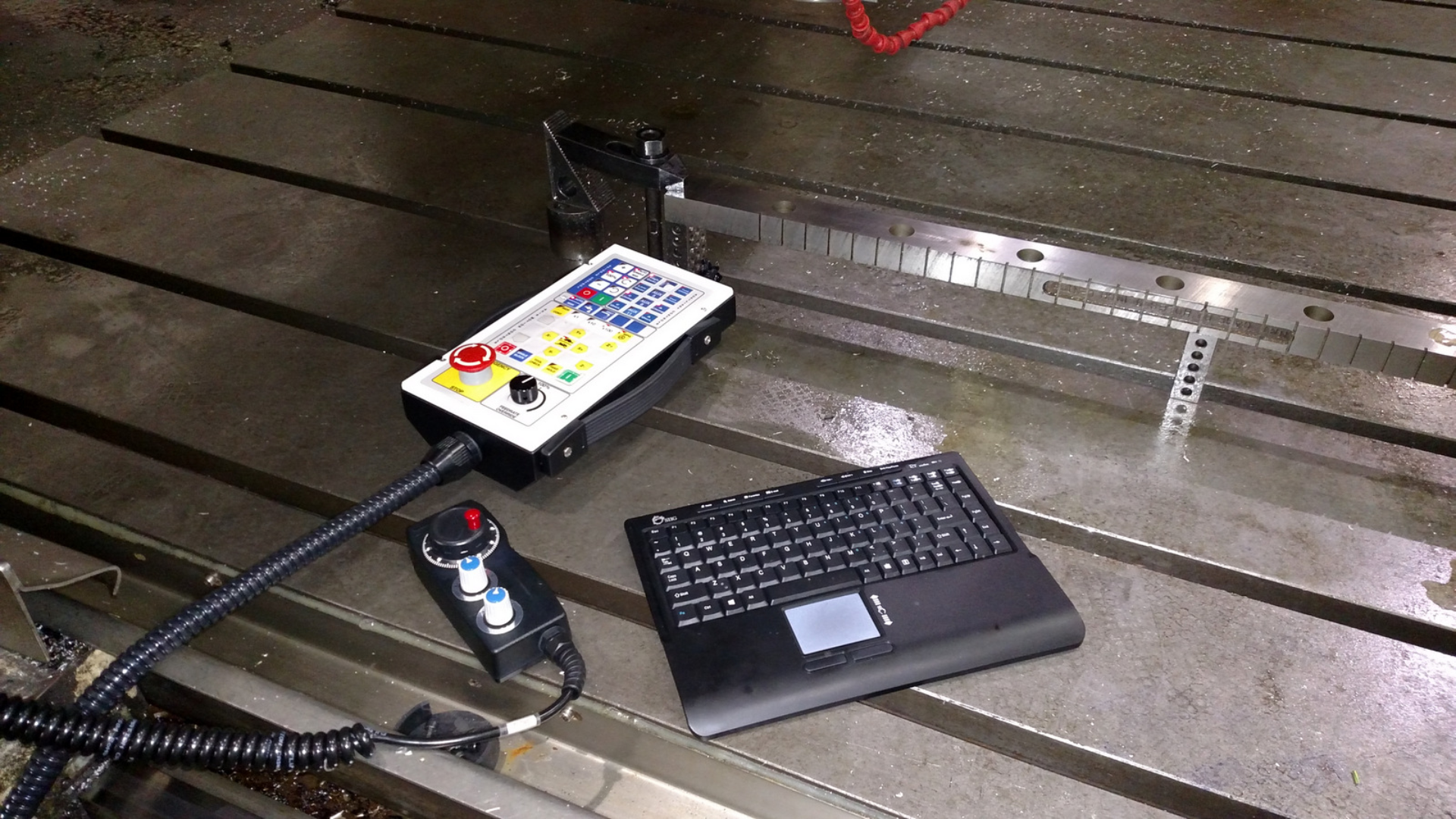

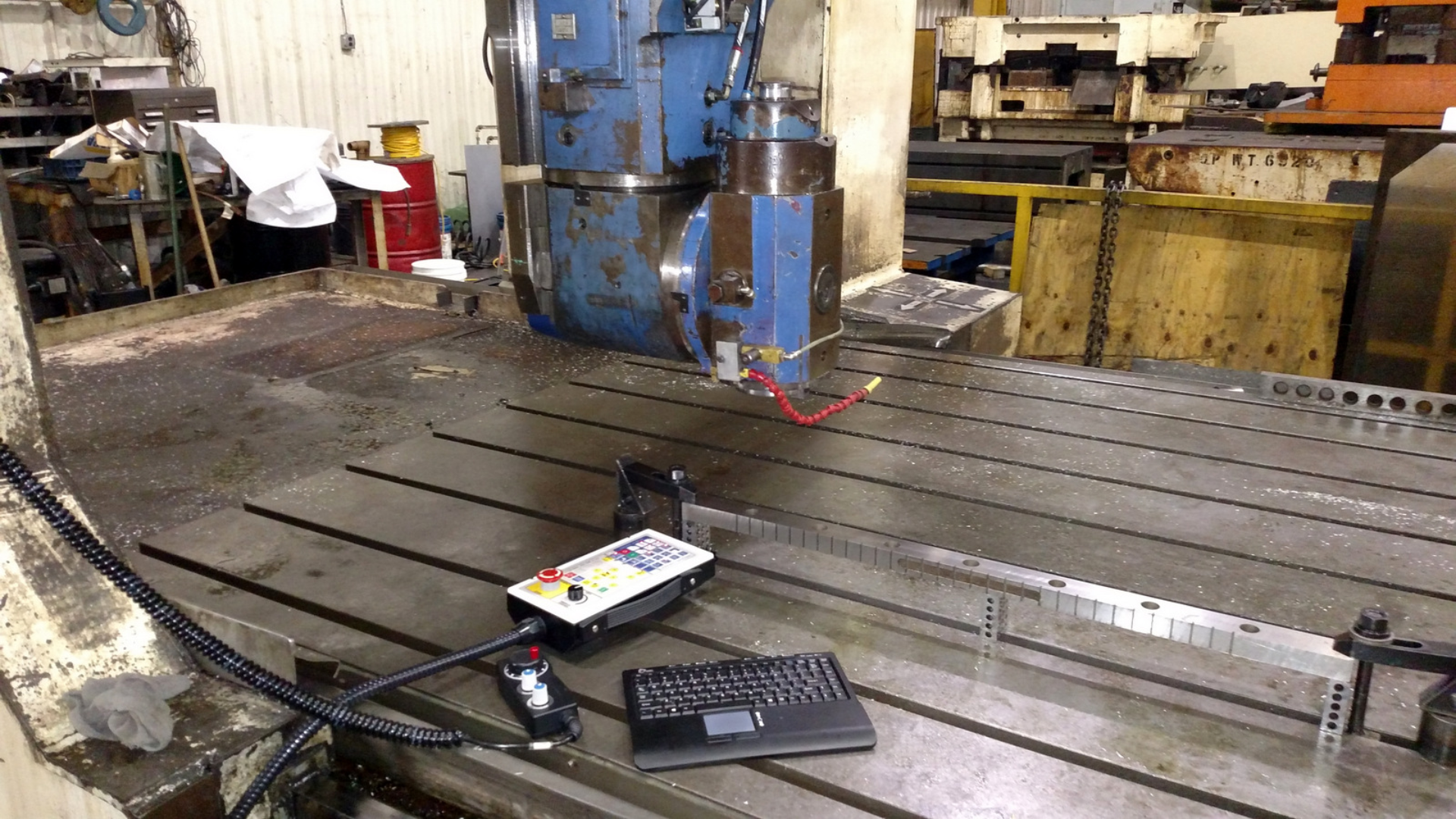

The remote tools available for the operator to control and program the machine
The spindle head. Ready to make chips fly.
Protected cabling from the control to the tool. Will be further enclosed in a cable ramp to allow forklift traffic.

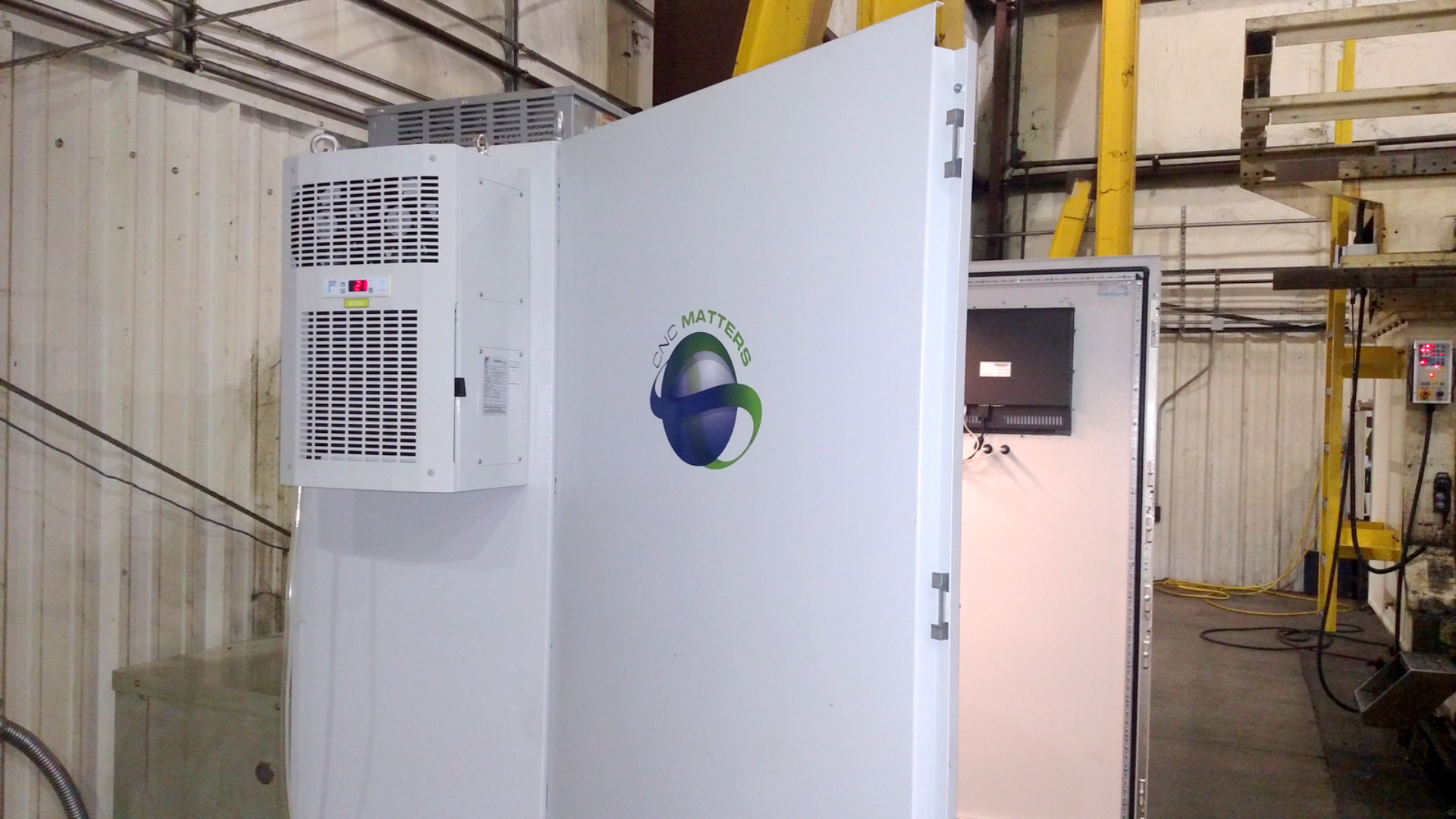

The climate control system for the cabinet, greatly extends the life of all the electronics

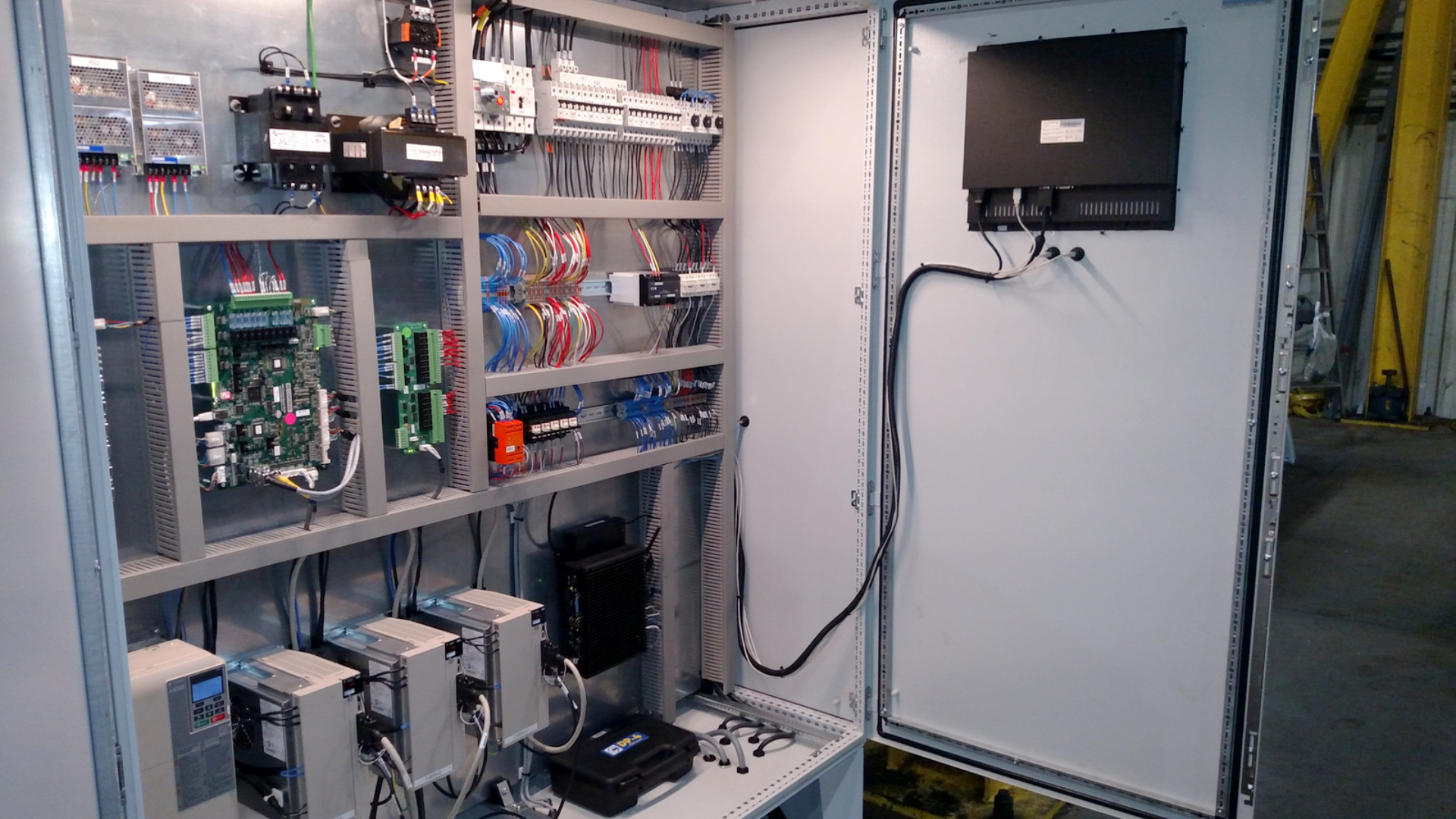

A well lit cabinet for quick easy maintenance
Retrofit undergoing final acceptance testing

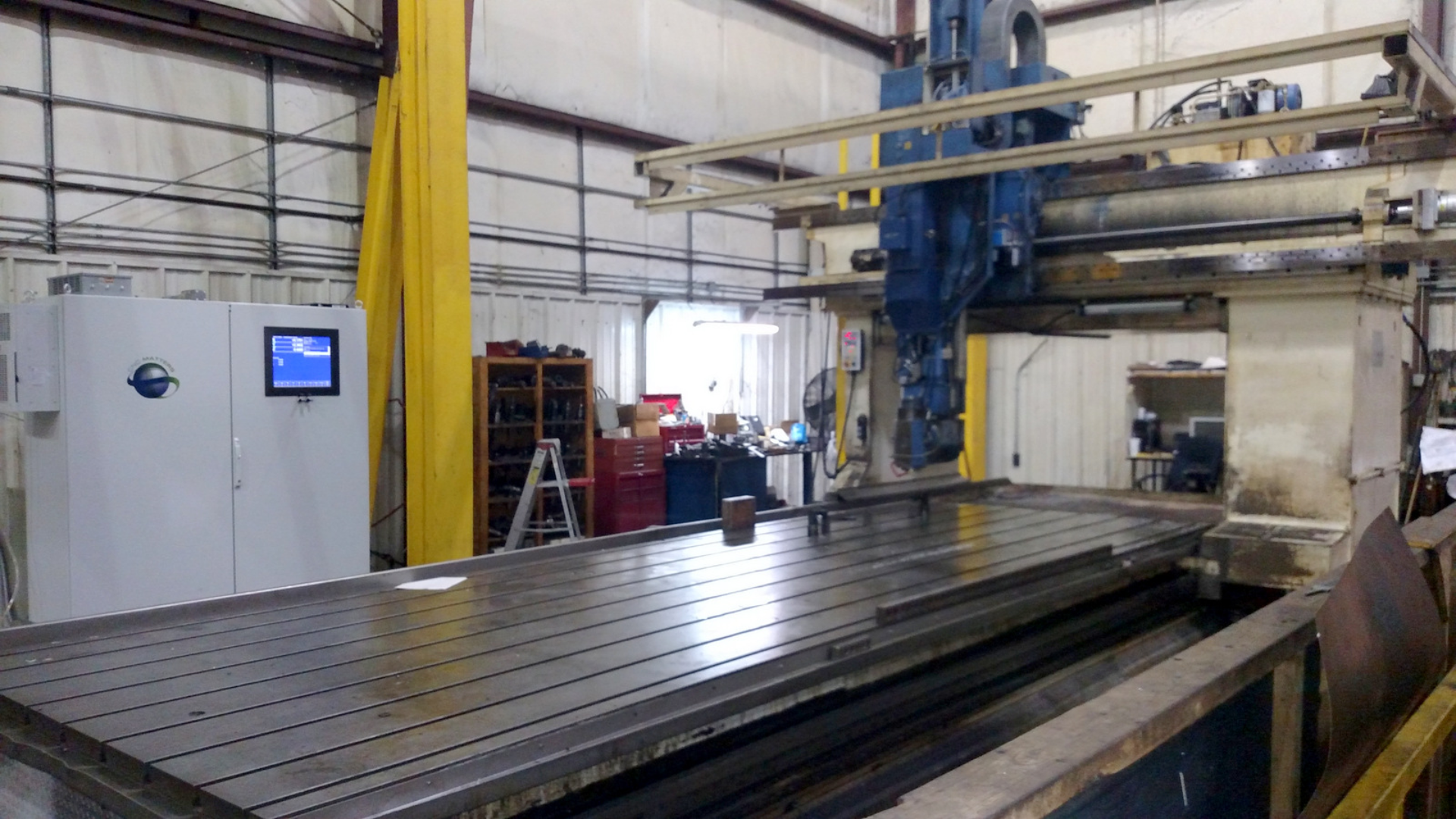

Finished tool retrofit. Ready to make the owners more money.

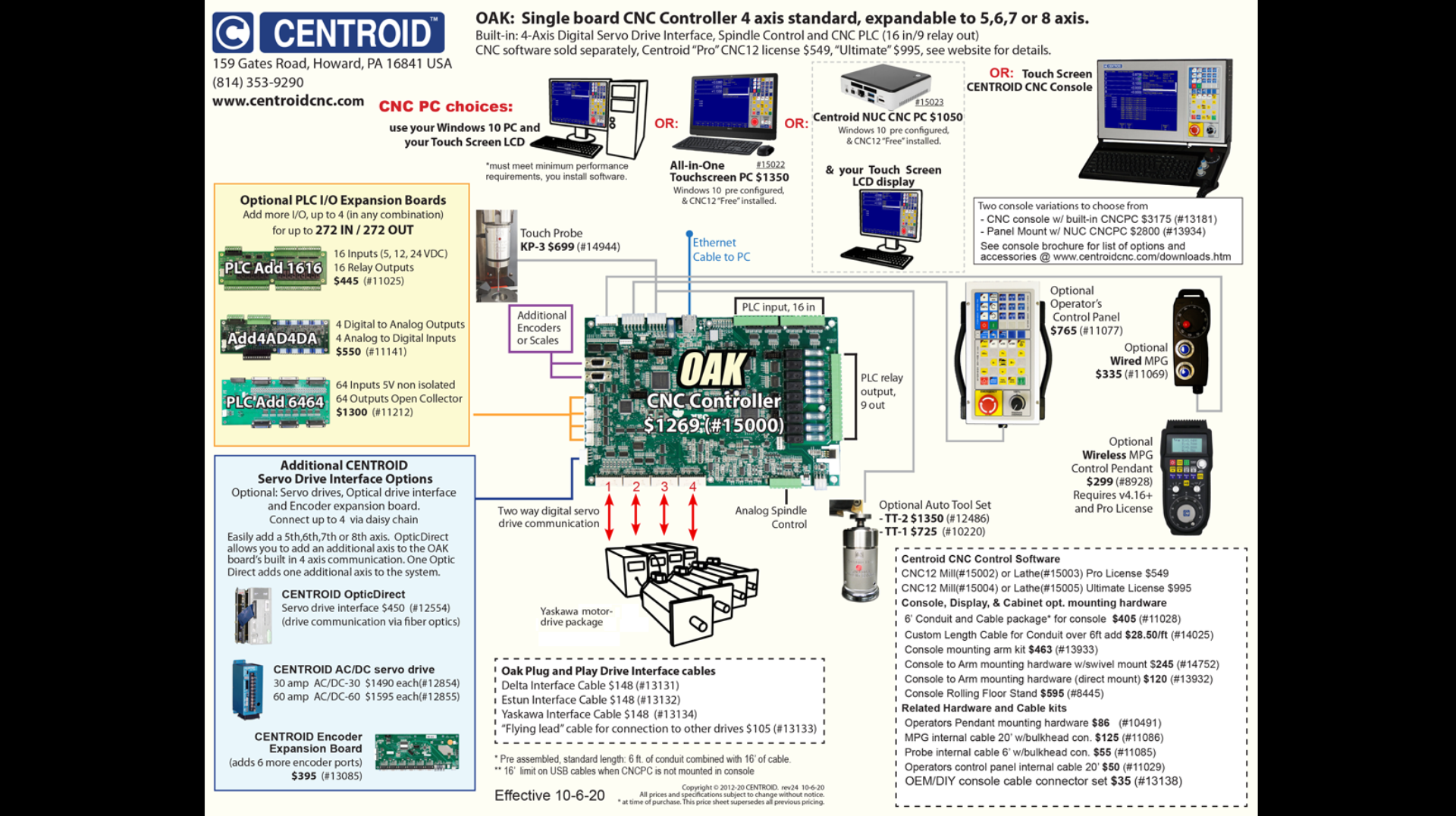

Diagram of the control system design. Note that factory prices may change. Note that factory prices may change. Labor, drives, motors, and other items are not included in the prices listed.
