Machine Retrofits 3 - King Vertical Turret Lathe

An exciting customer to work with. Lifesaving products for the world. www.earthquakeprotection.com

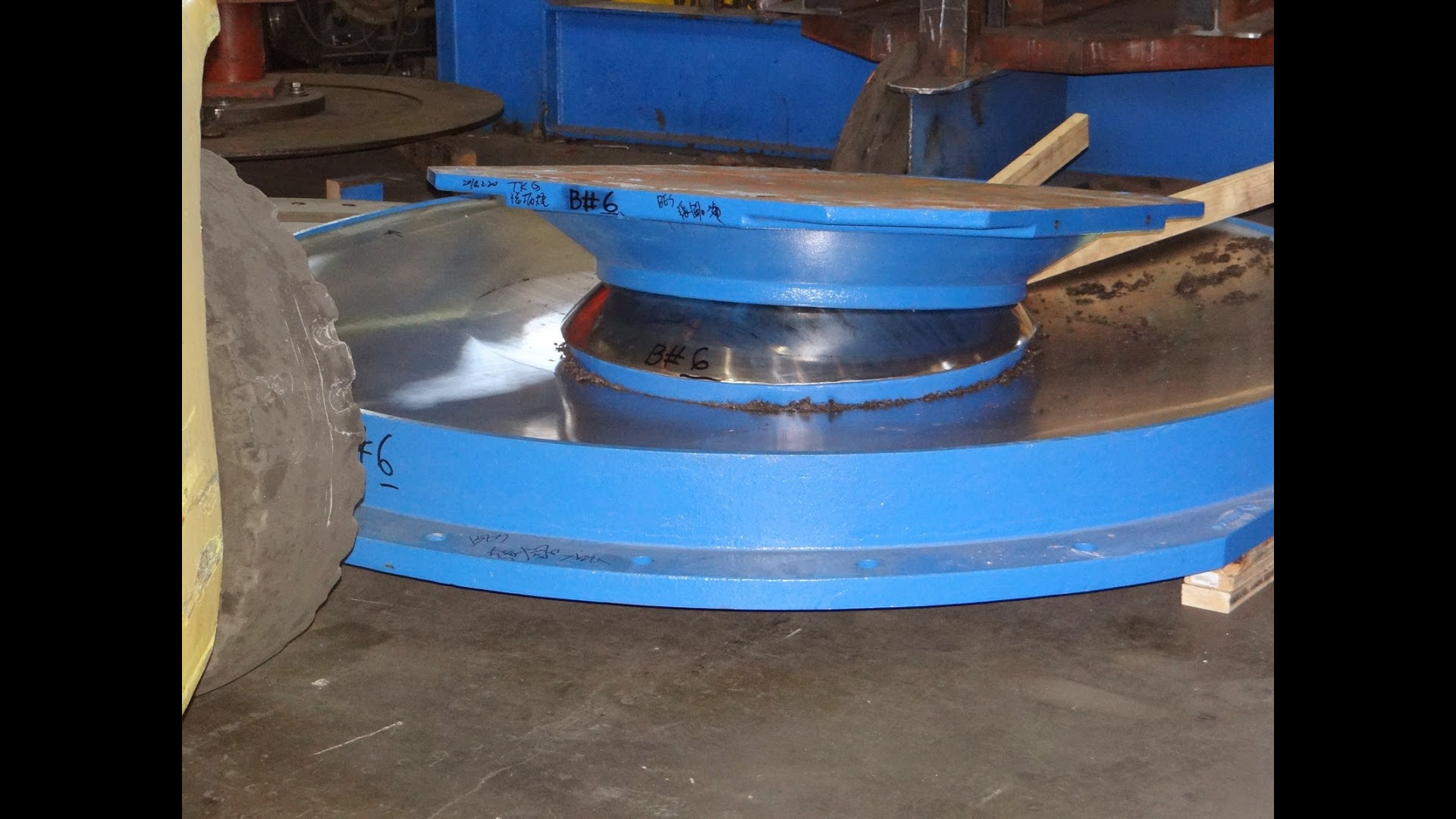

The Triple Pendulum Isolators that are made on the machine to be retrofitted

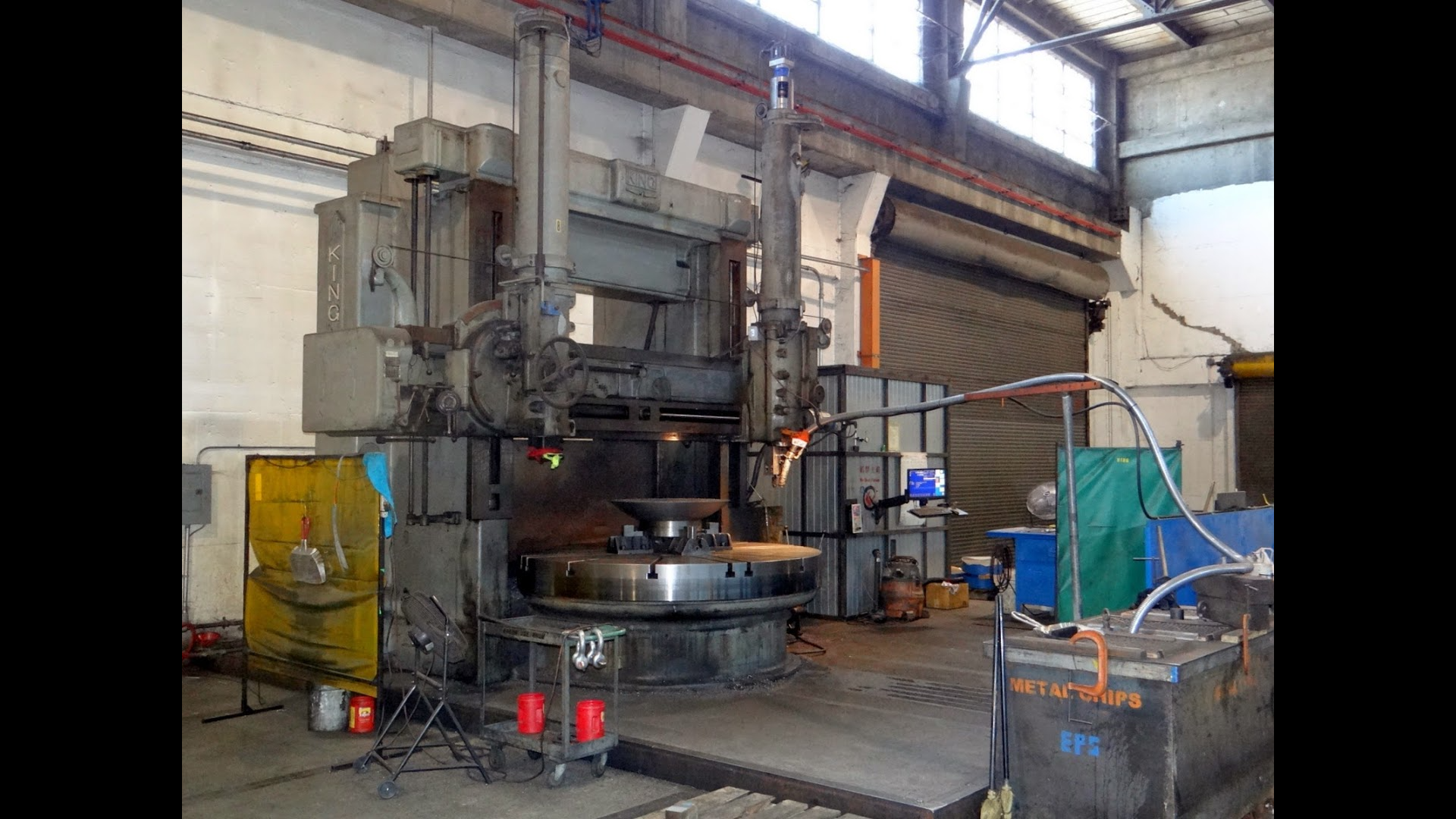

Left oblique view of the machine undergoing final acceptance testing

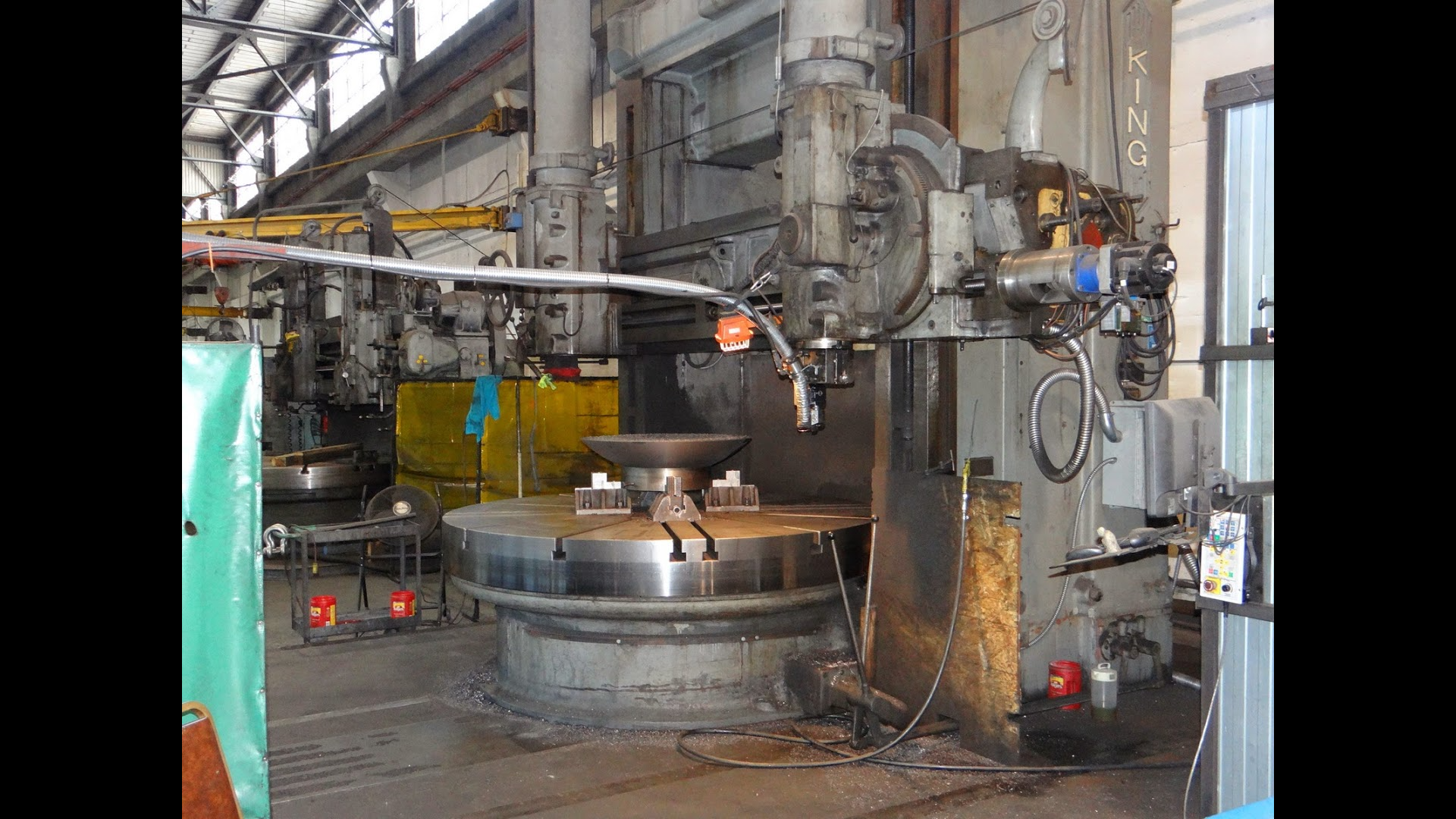

Right oblique view of the machine undergoing final acceptance testing

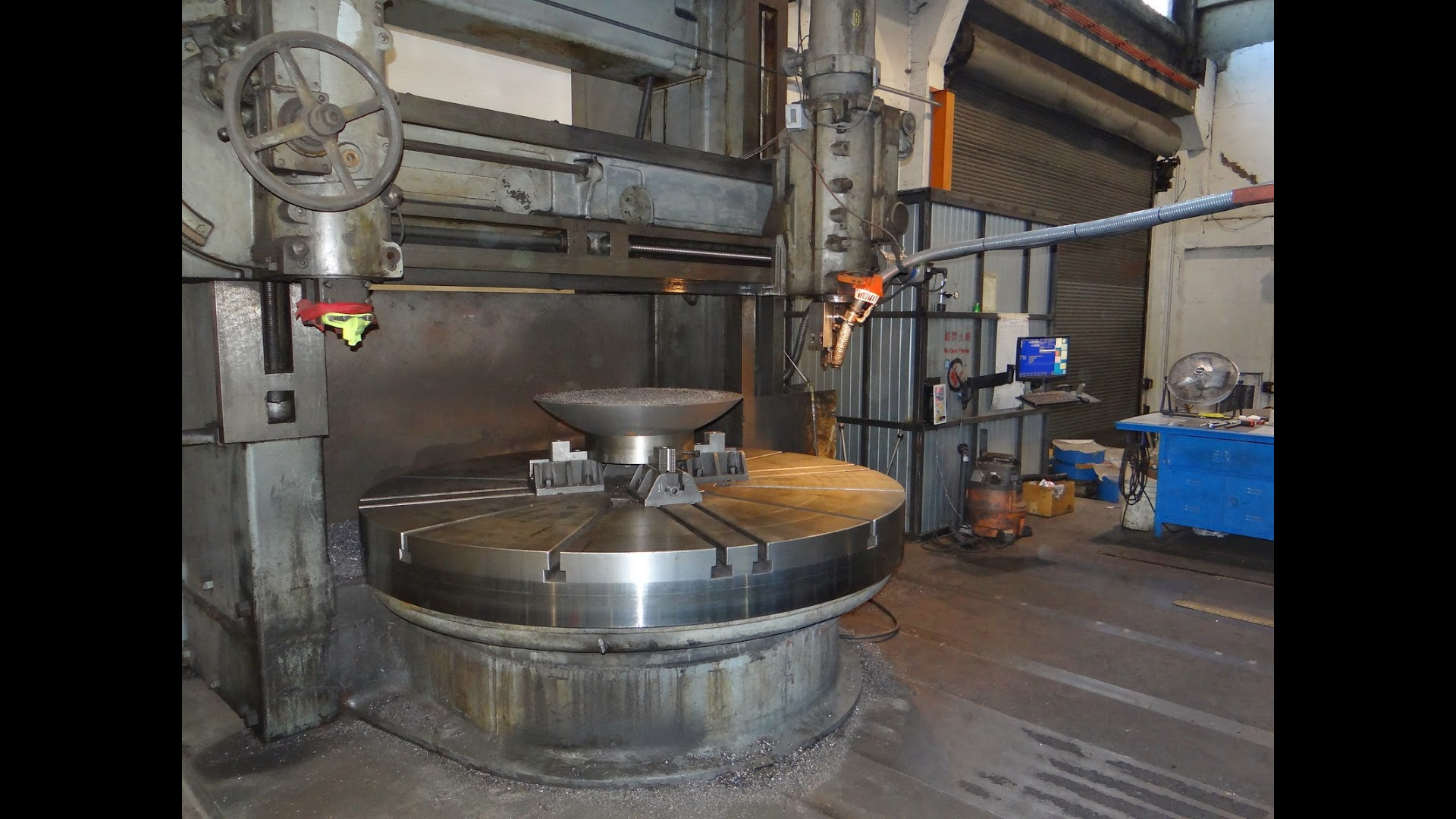

Stainless steel Friction Penlulum being precision machined

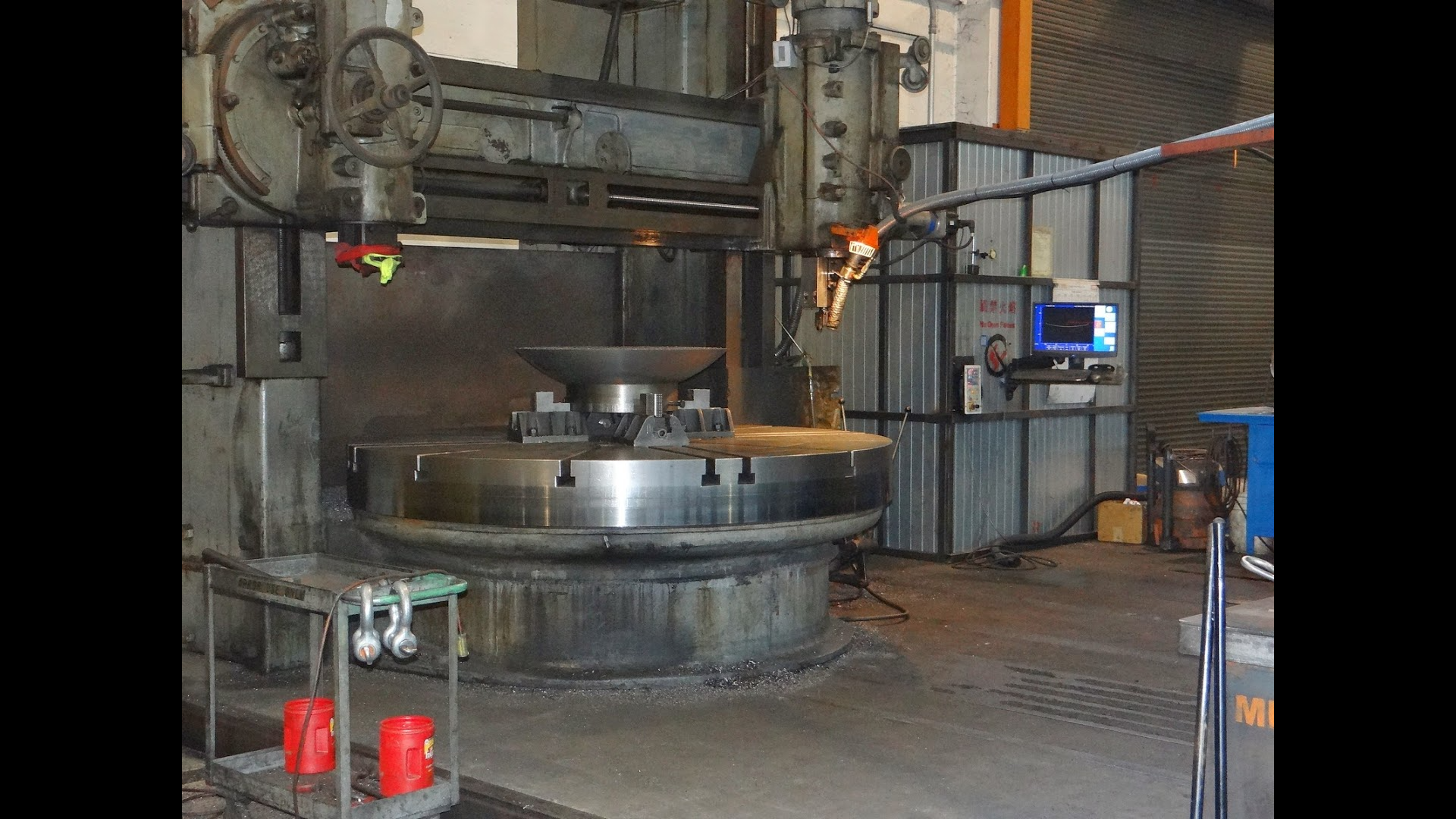

Original design of lathe had two cutters at opposite sides to balance forces on the part. With new controls, accuracy can be controlled even with only one side cutting. This makes setup and programming much easier. Especially since most of the cuts are vertical.

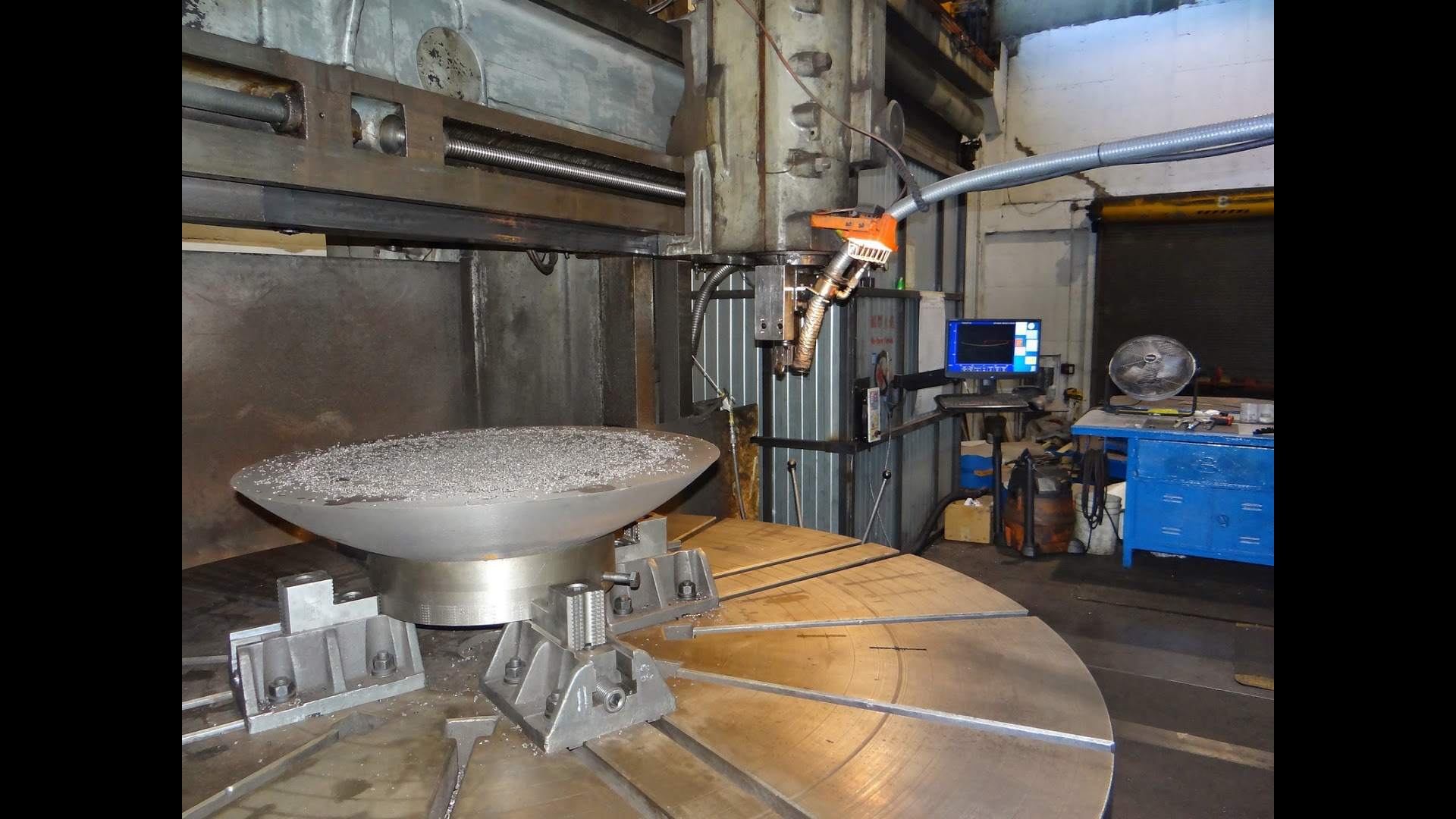

The accuracy of old iron is improved with modern controls

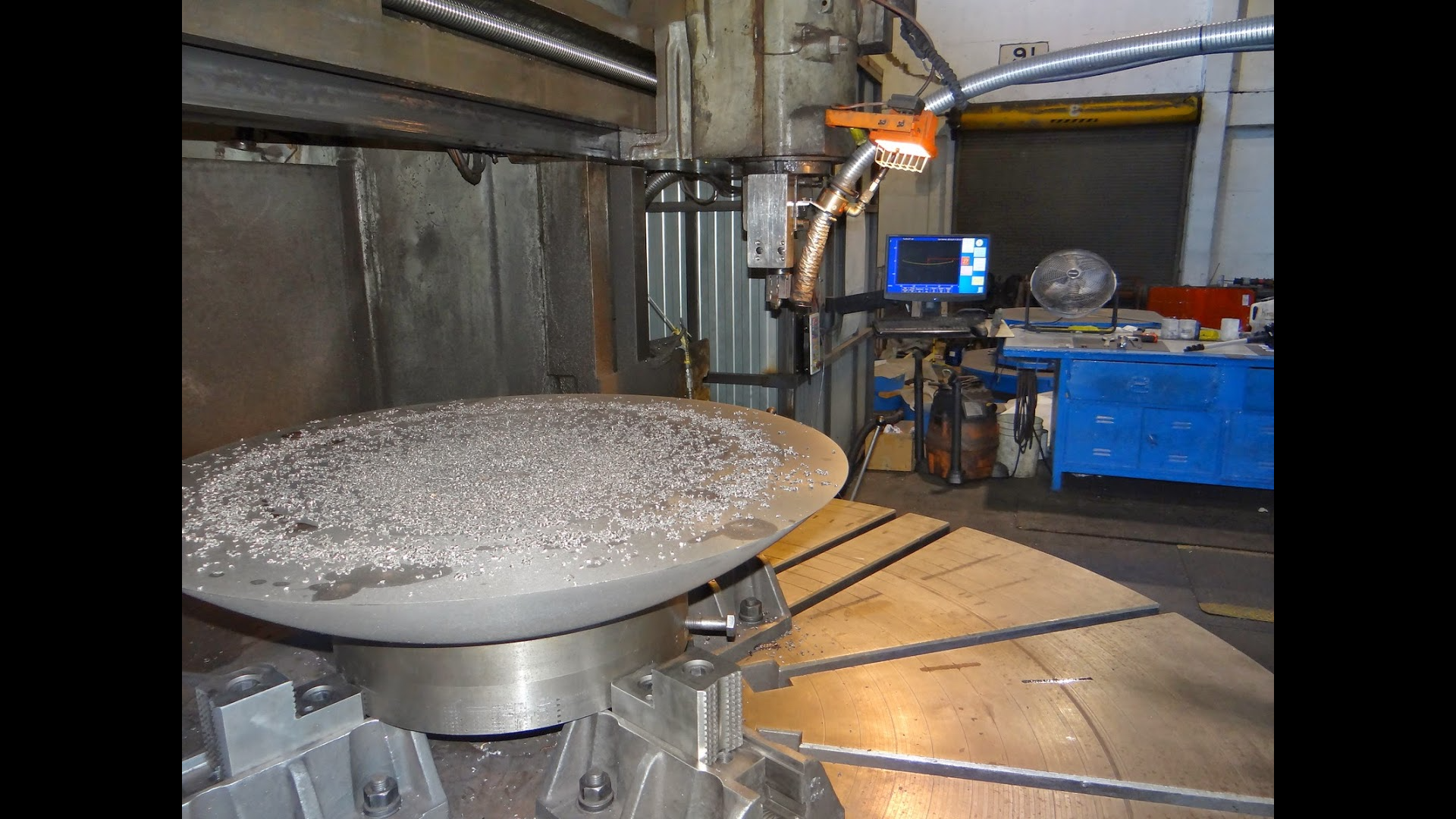

Single cutting head is controlled precisely even with heavy forces involved with turning stainless steel

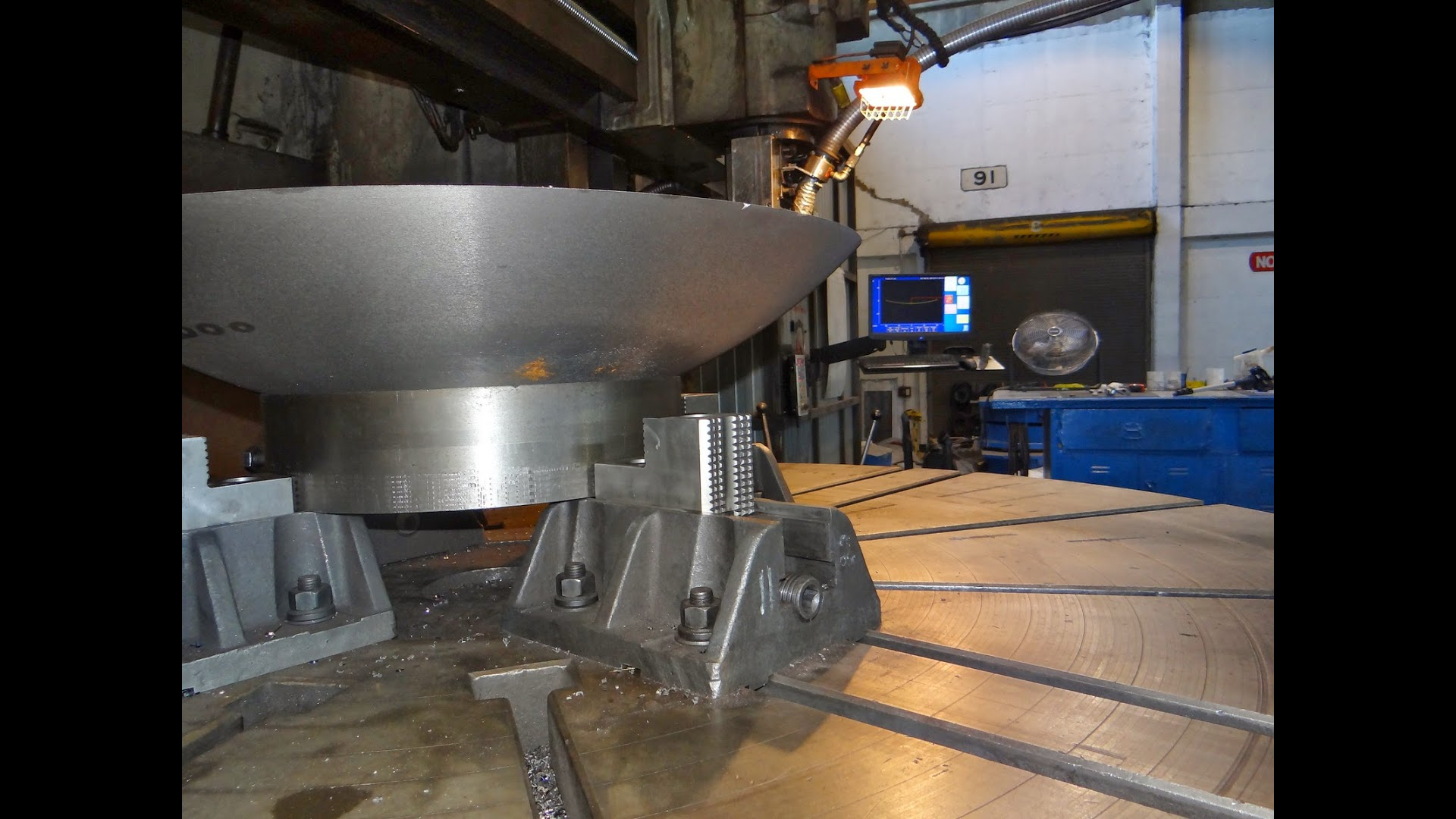

Controller provides easy jogging to position each vise just right for the operator to adjust

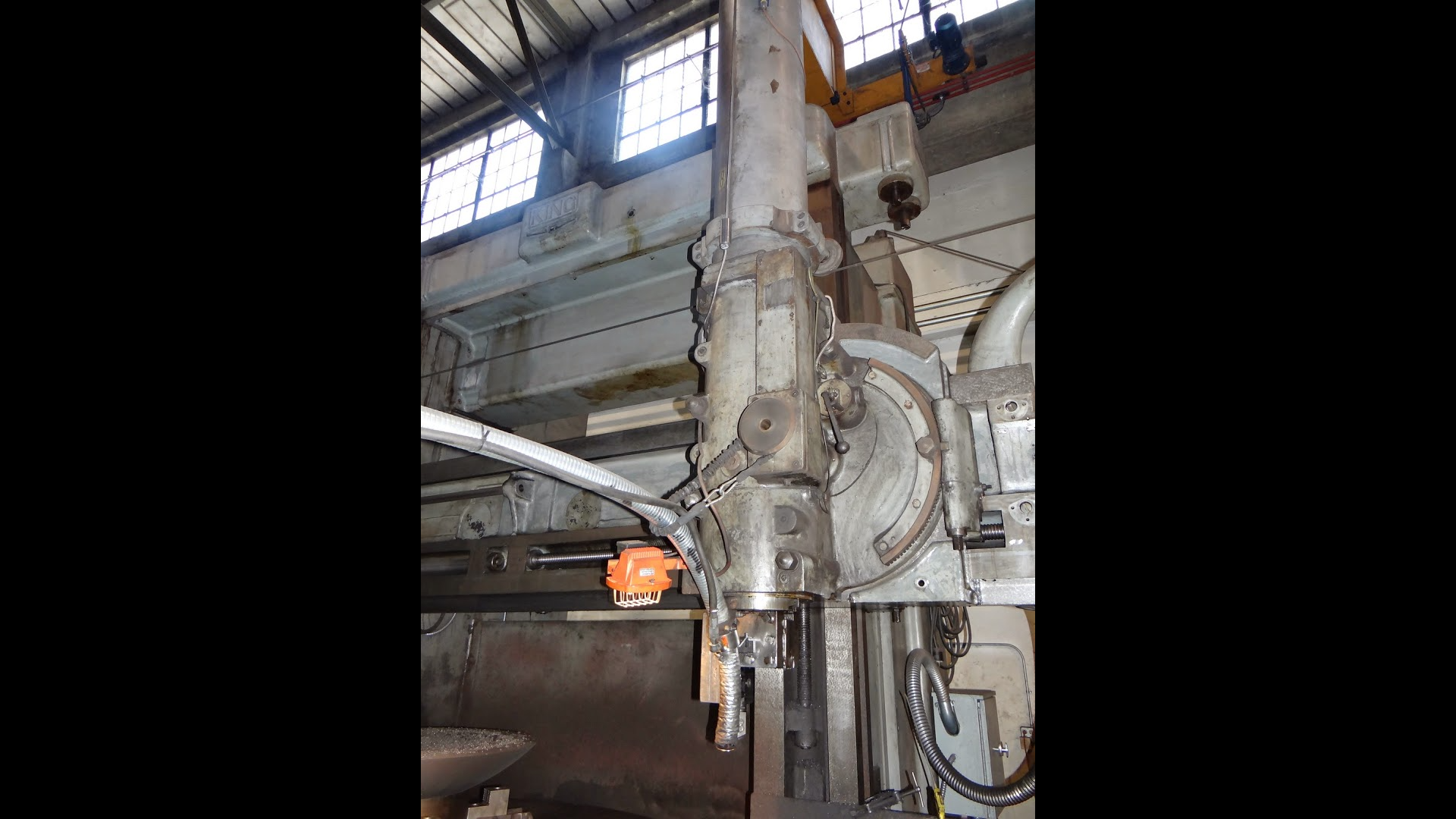

Business end of the vertical axis where the cutting bit is mounted

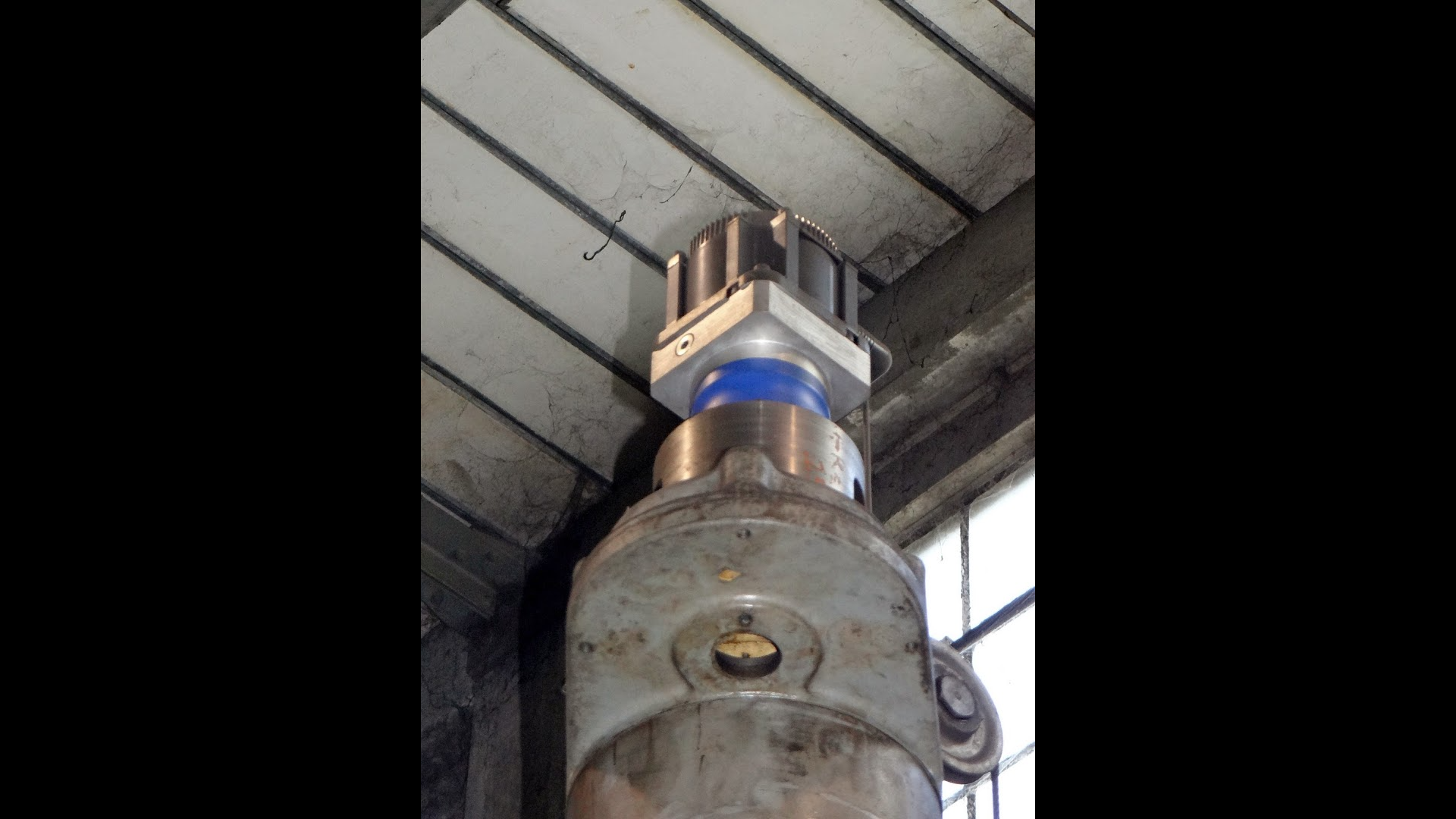

New motor & encoder for the vertical axis

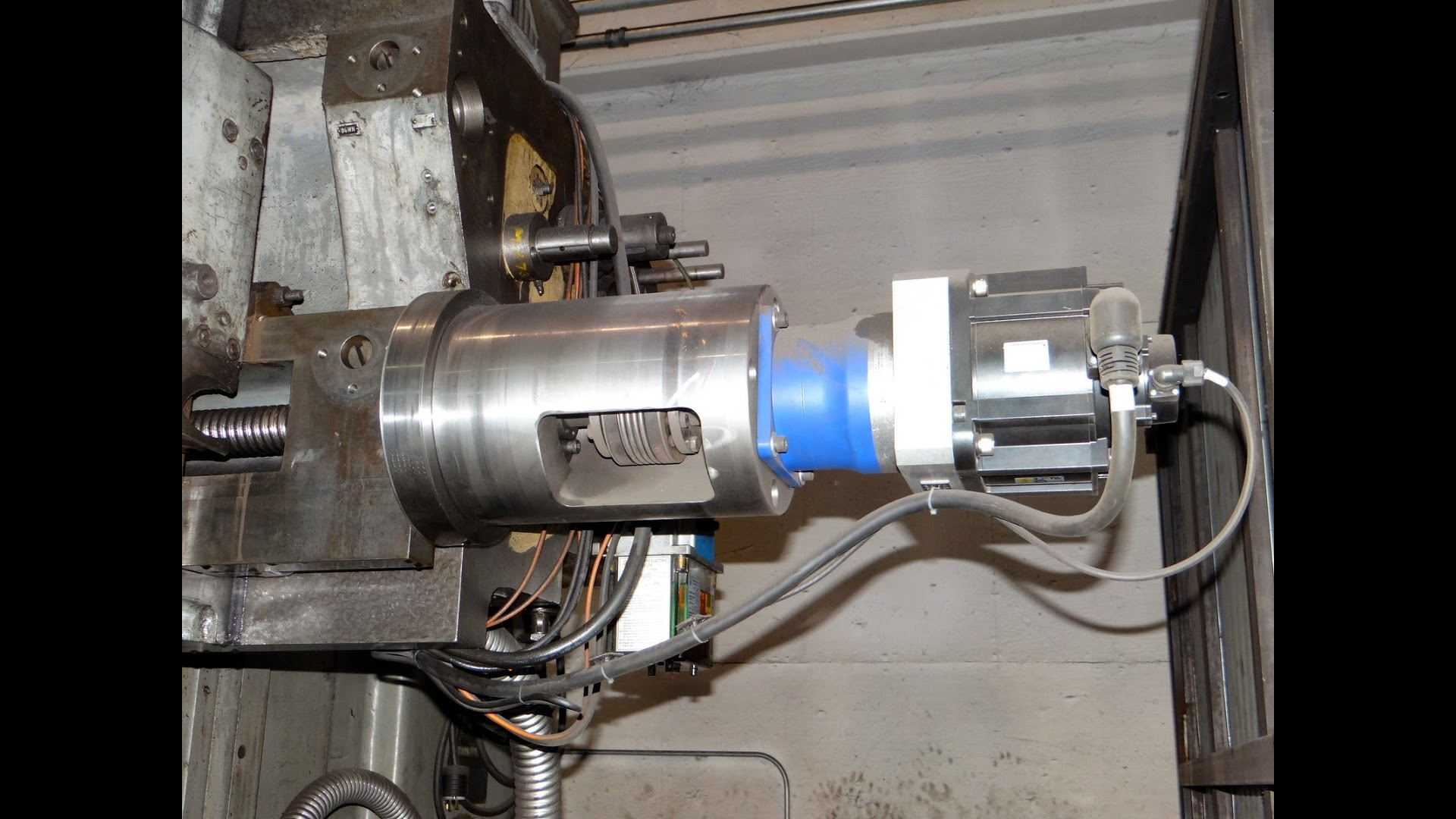

New motor, encoder & coupling for the horizontal axis ball screw

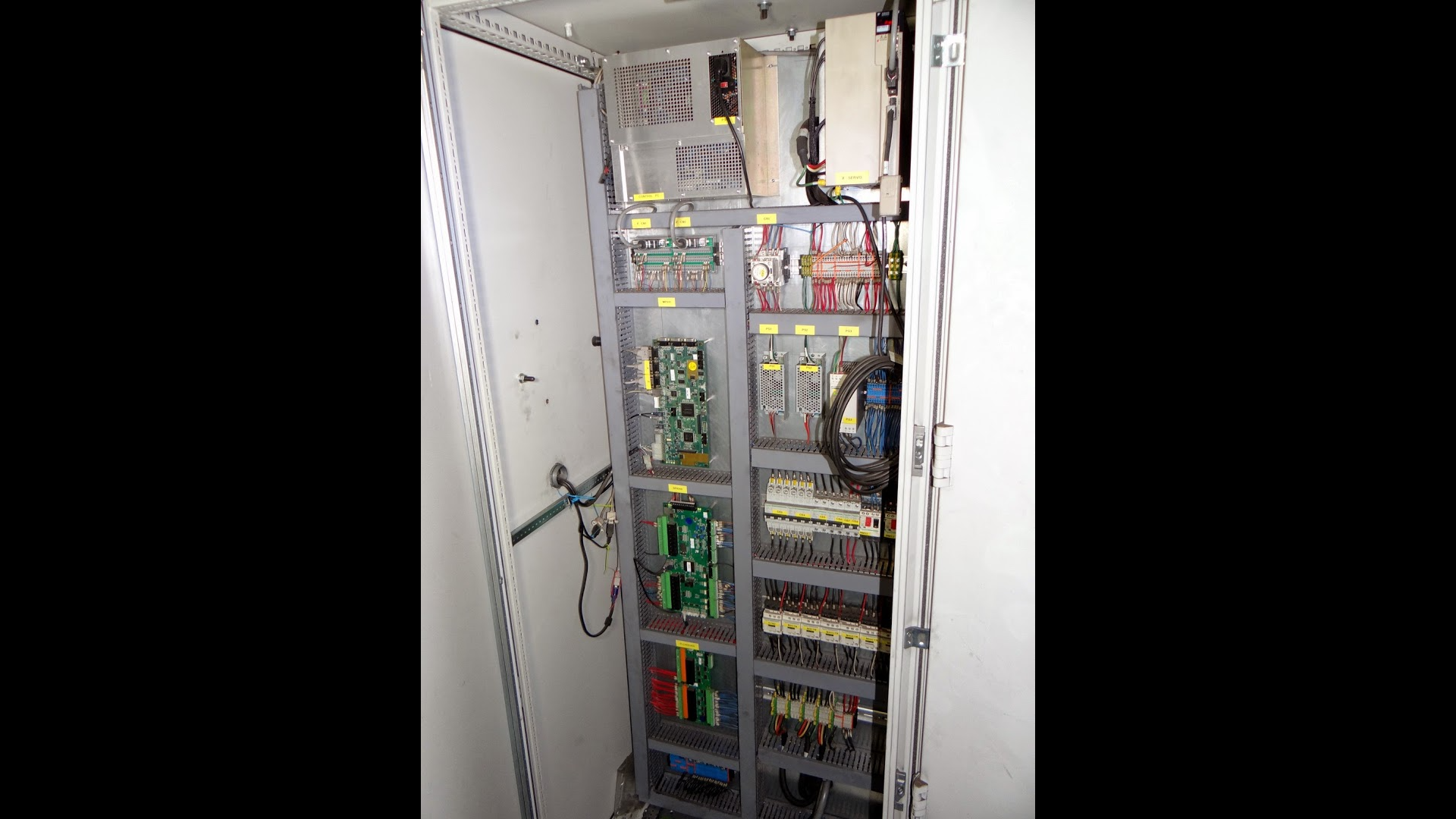

New CNC controls on the left side of the control cabinet

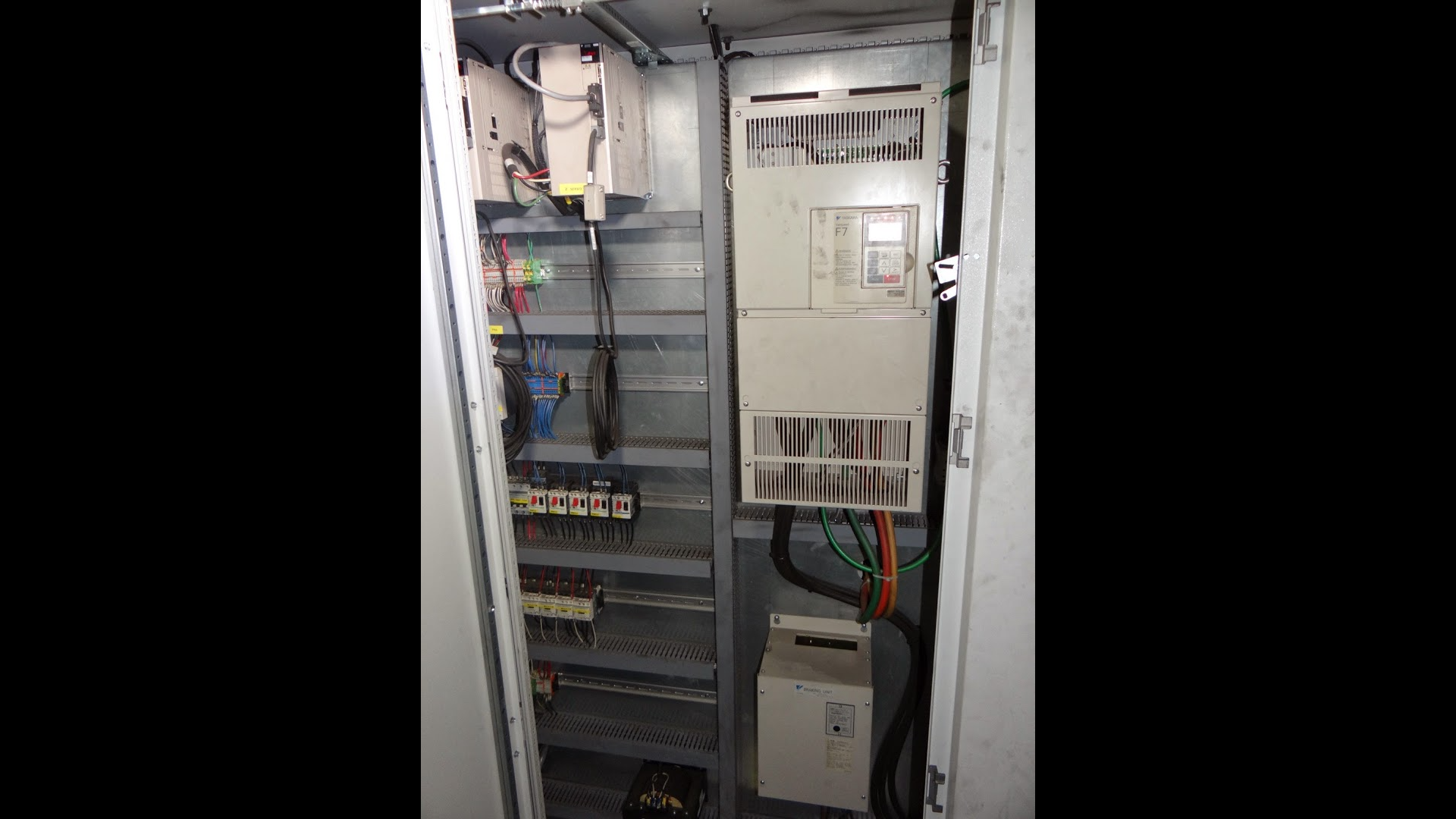

New servos on the top and right edges of the control cabinet. Spacious layout for easy maintenance and heat removal. Still plenty room left for expansion.
Diagram of the control system design. Note that factory prices may change. Labor, drives, motors, and other items are not included in the prices listed.
