Machine Retrofits 2 - Okuma MC-5VA vertical 3-axis mill

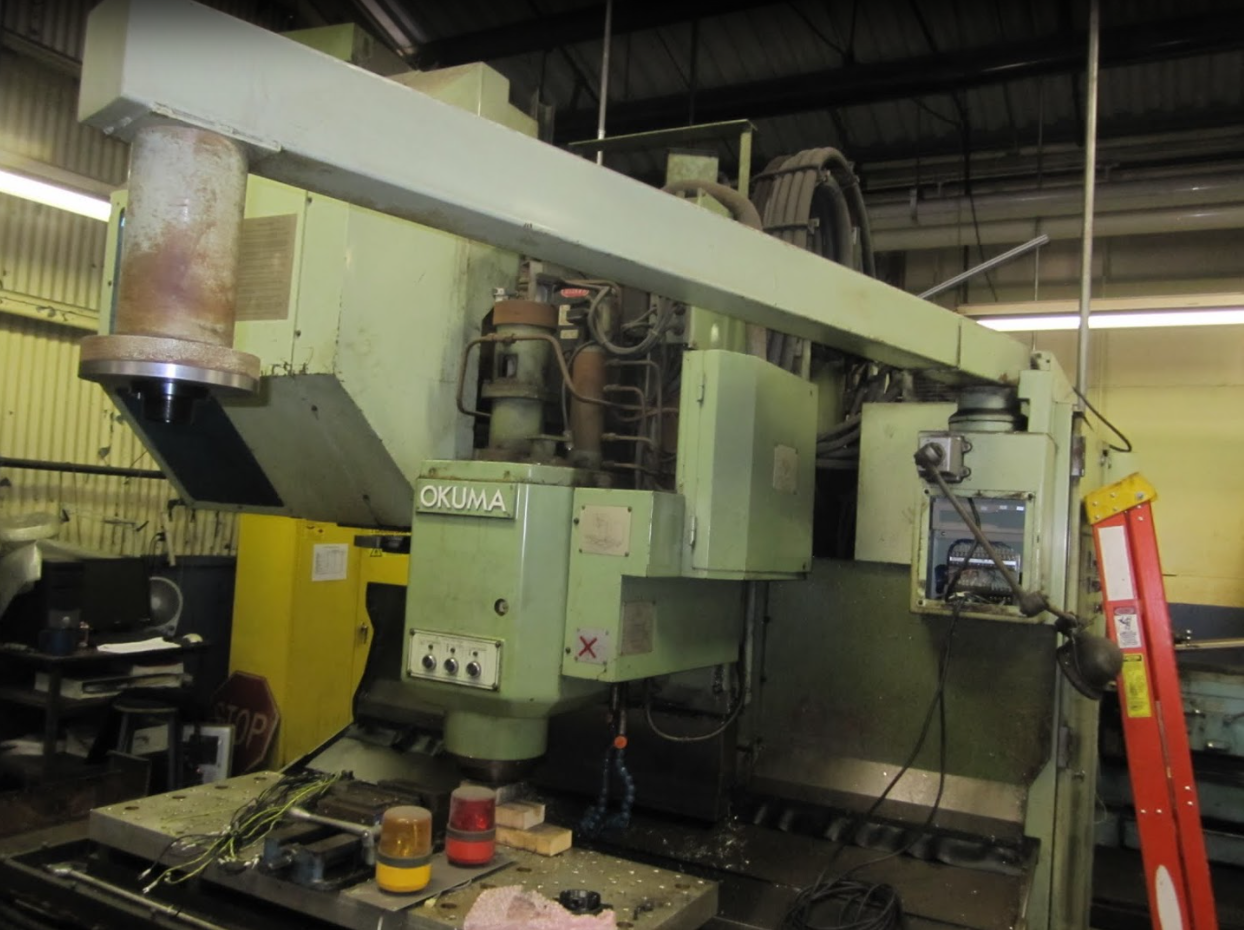

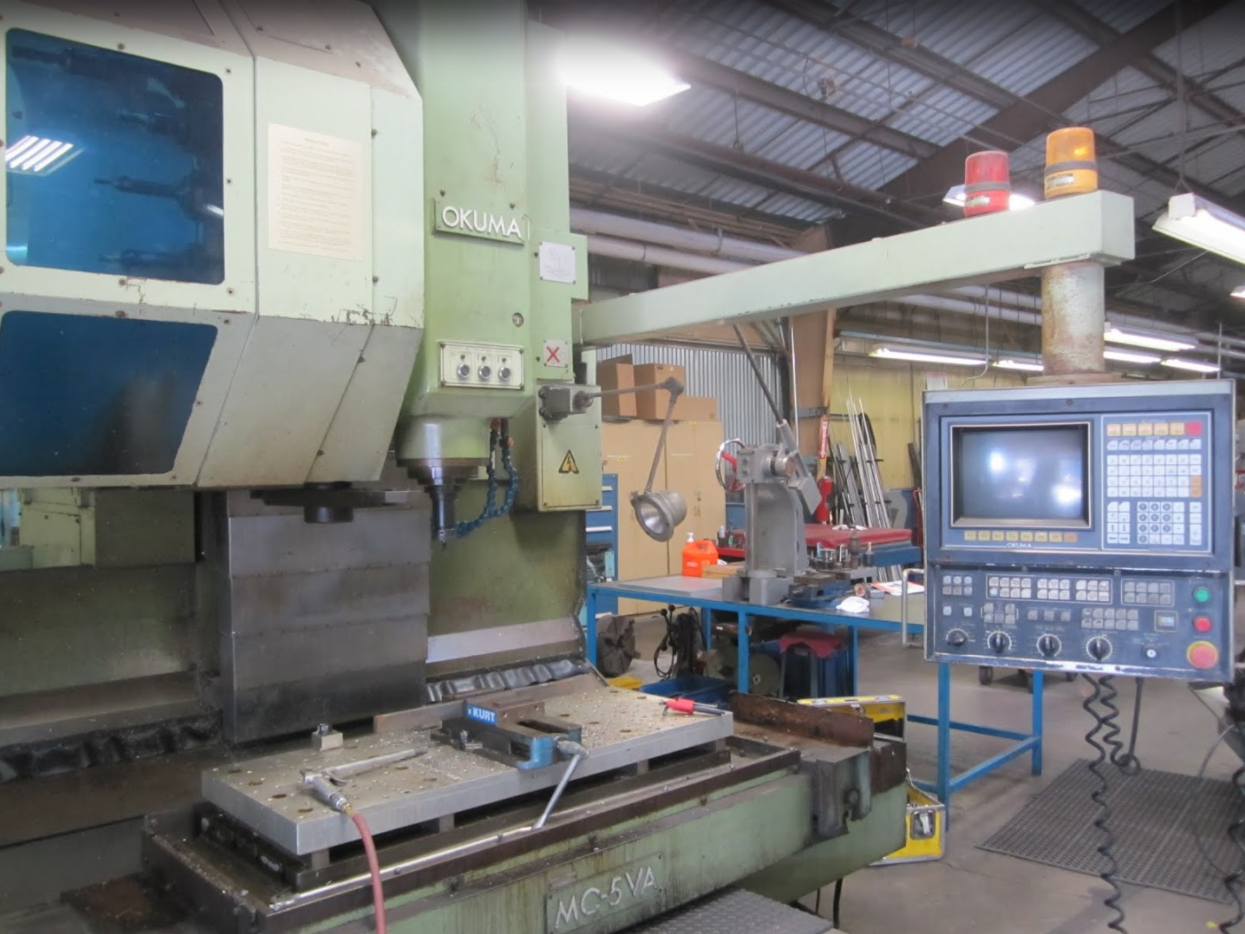

Machine at the beginning of the retrofit

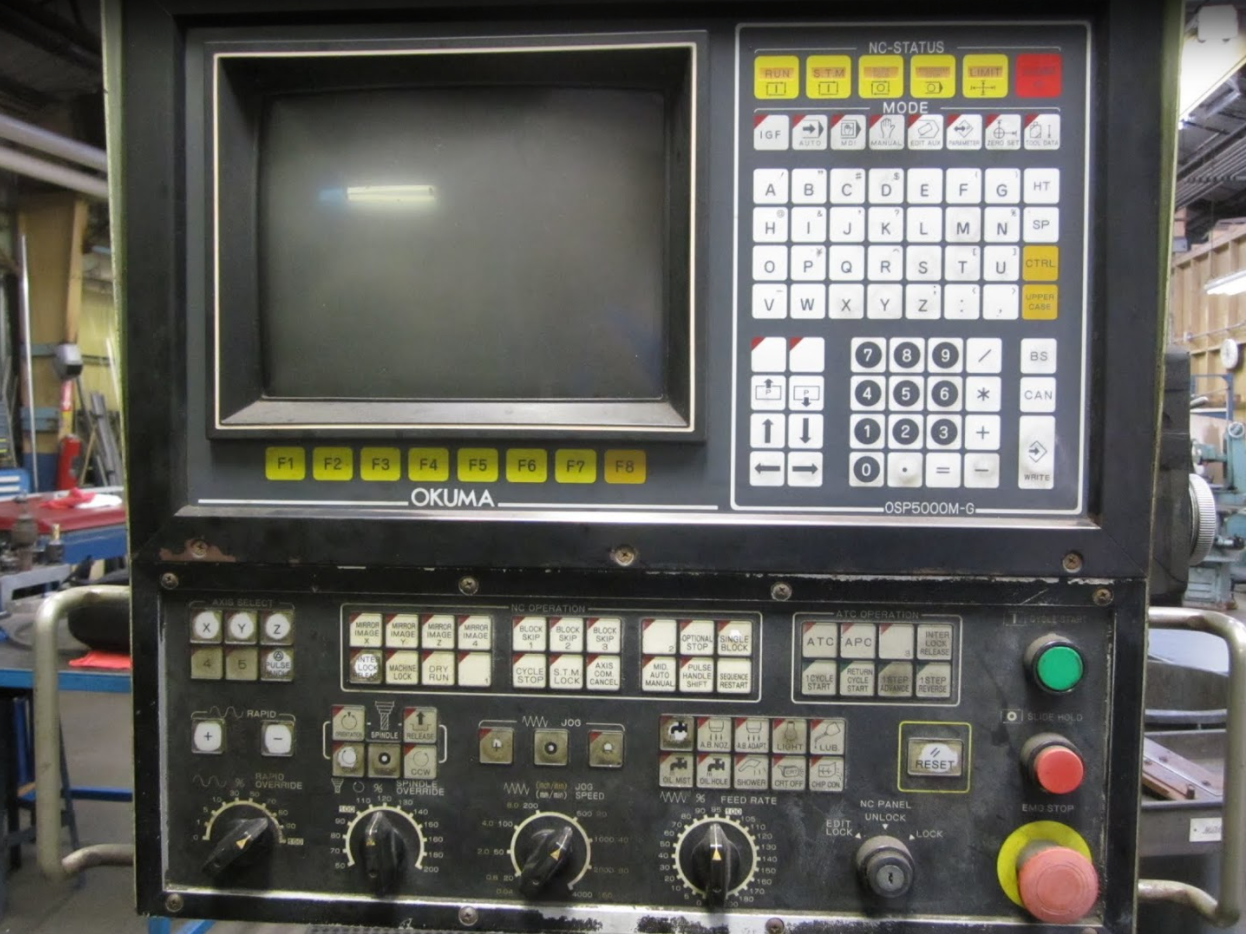

Original Okuma CNC control panel. In its day this was a decent machine. Today these kind of controls are hard for the newer generation to wrap their head around.
This generation of controller still relied on a lot of manual settings and had very little memory

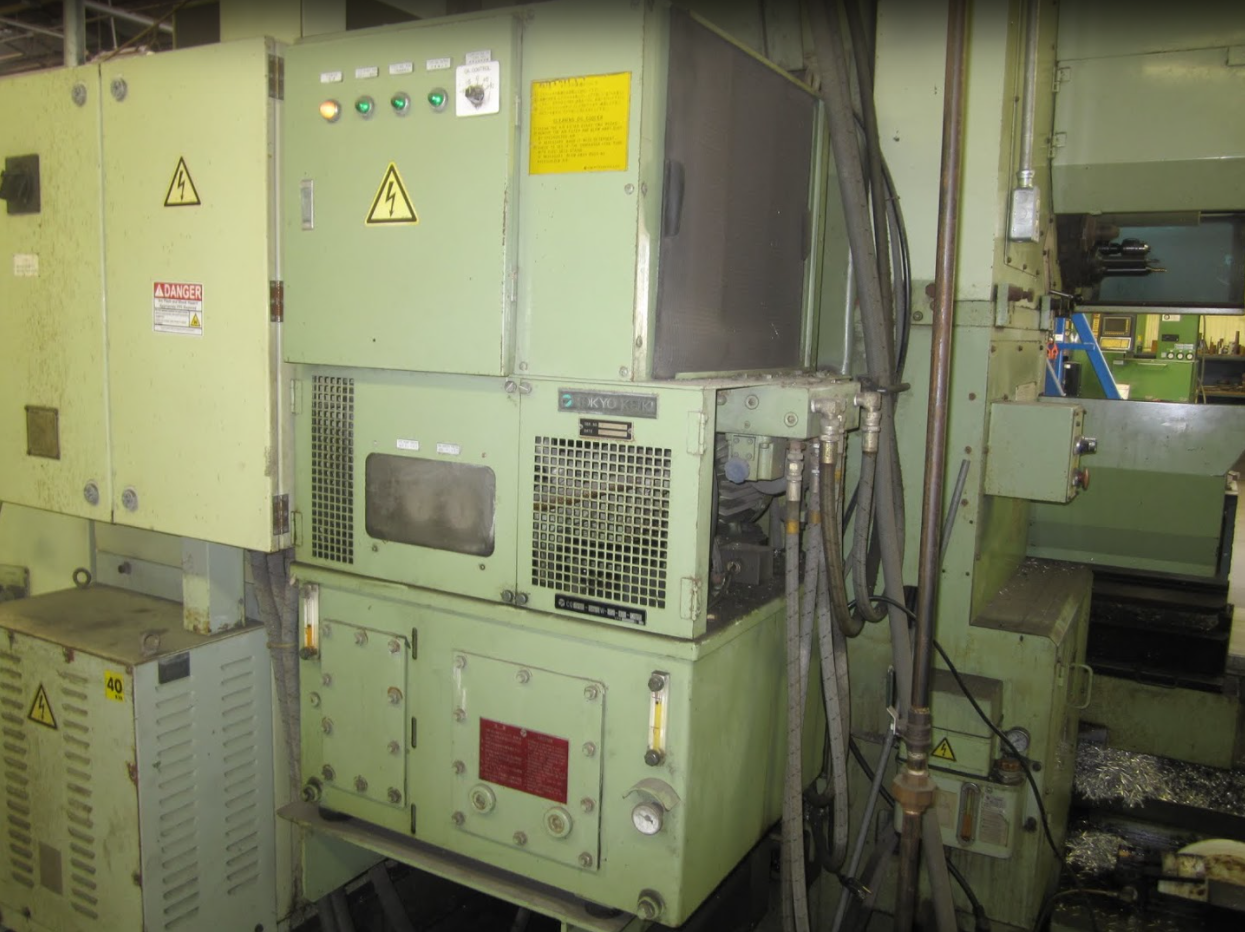

Back of the tool with some of the hydraulic systems

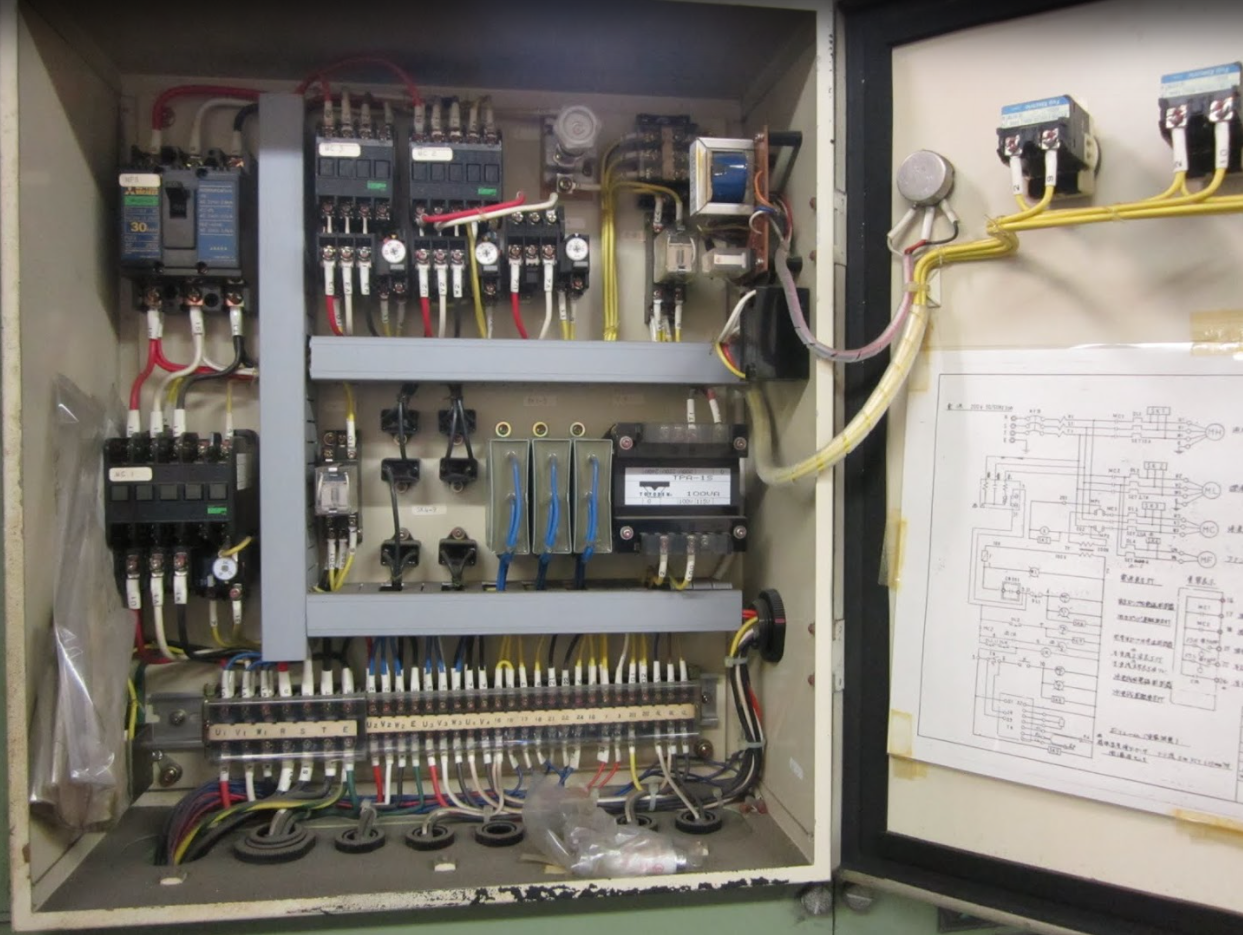

Input power cabinet
Contactor cabinet

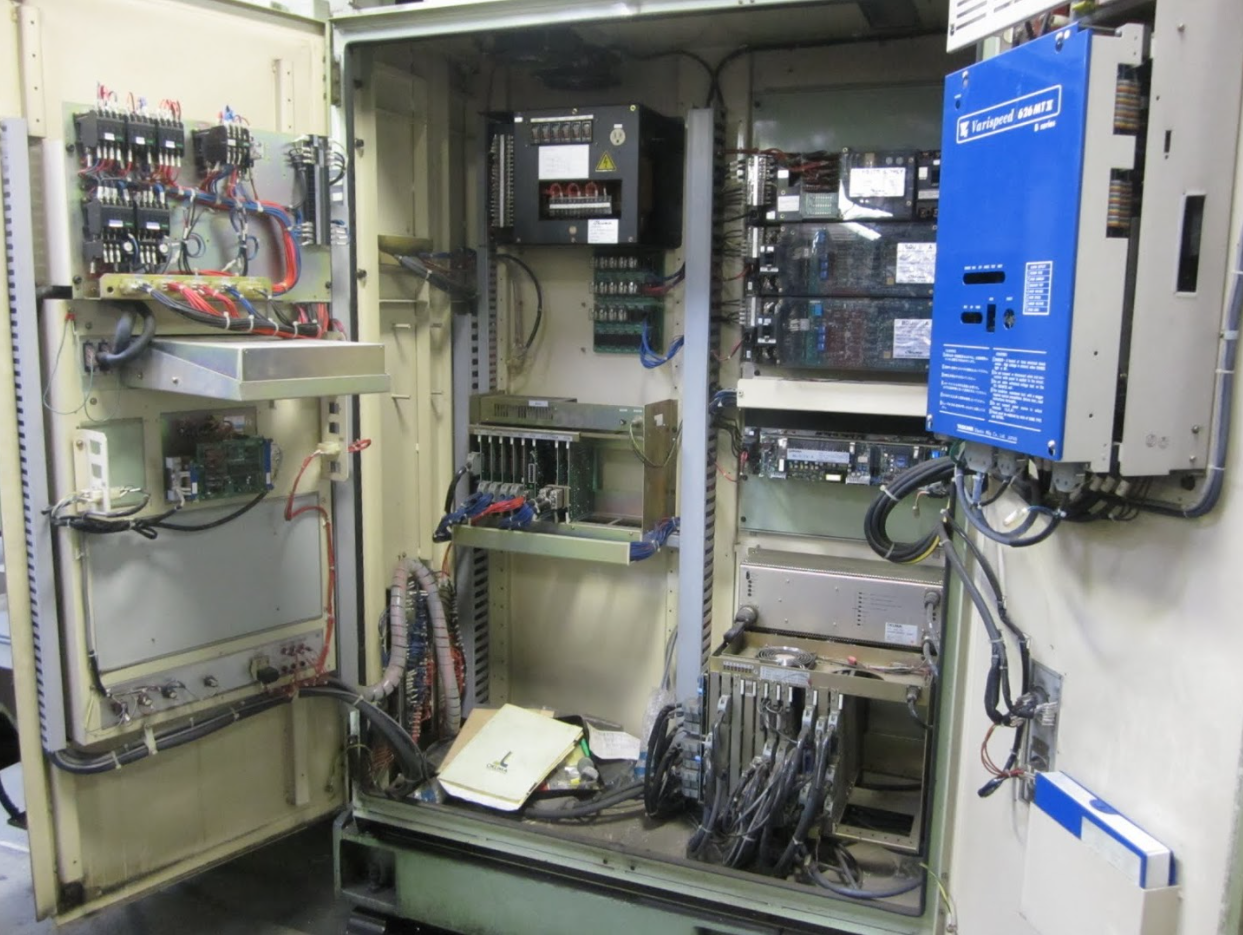

Main control cabinet before retrofit. Fortunately the owner kept the interior clean.

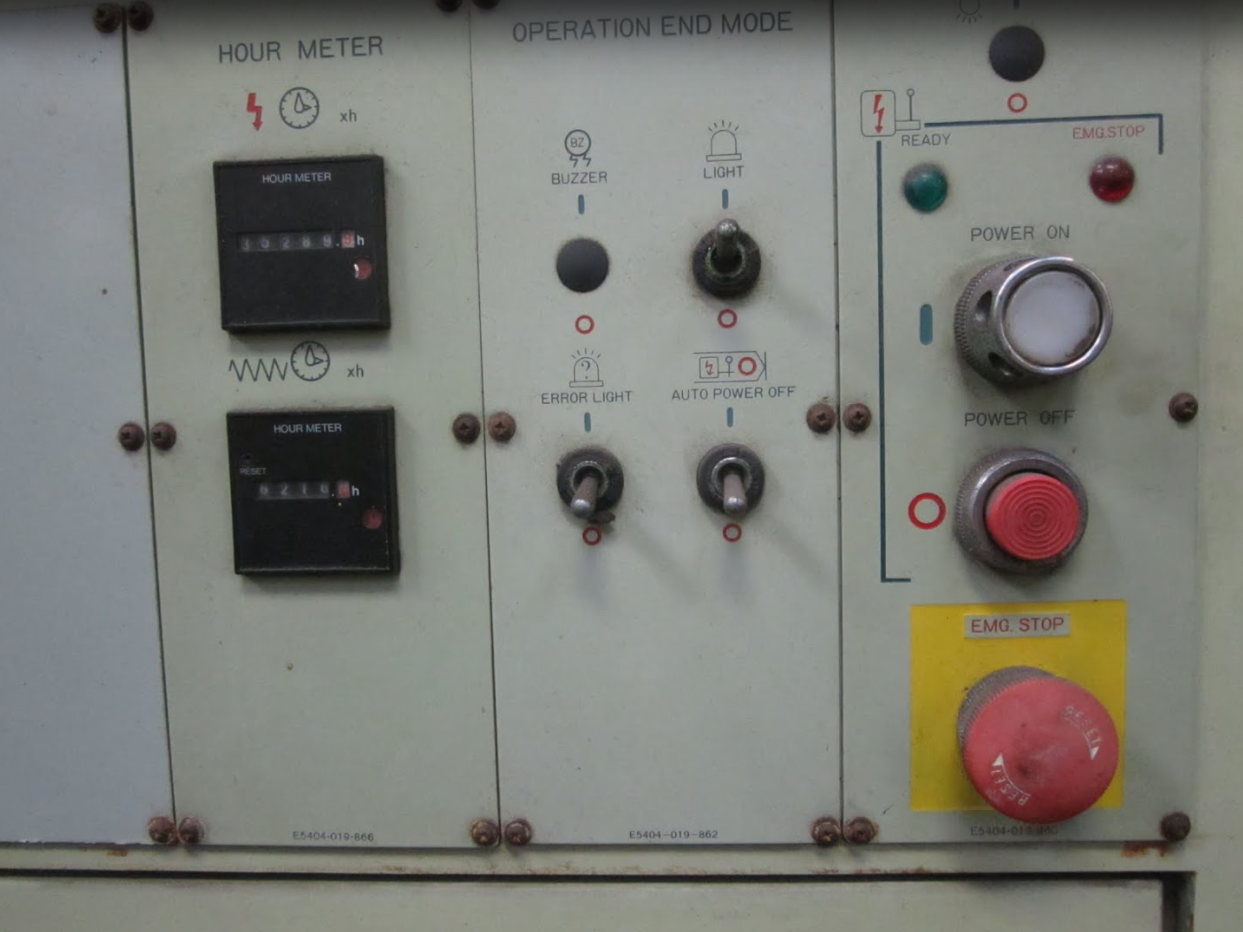

Side of machine controls

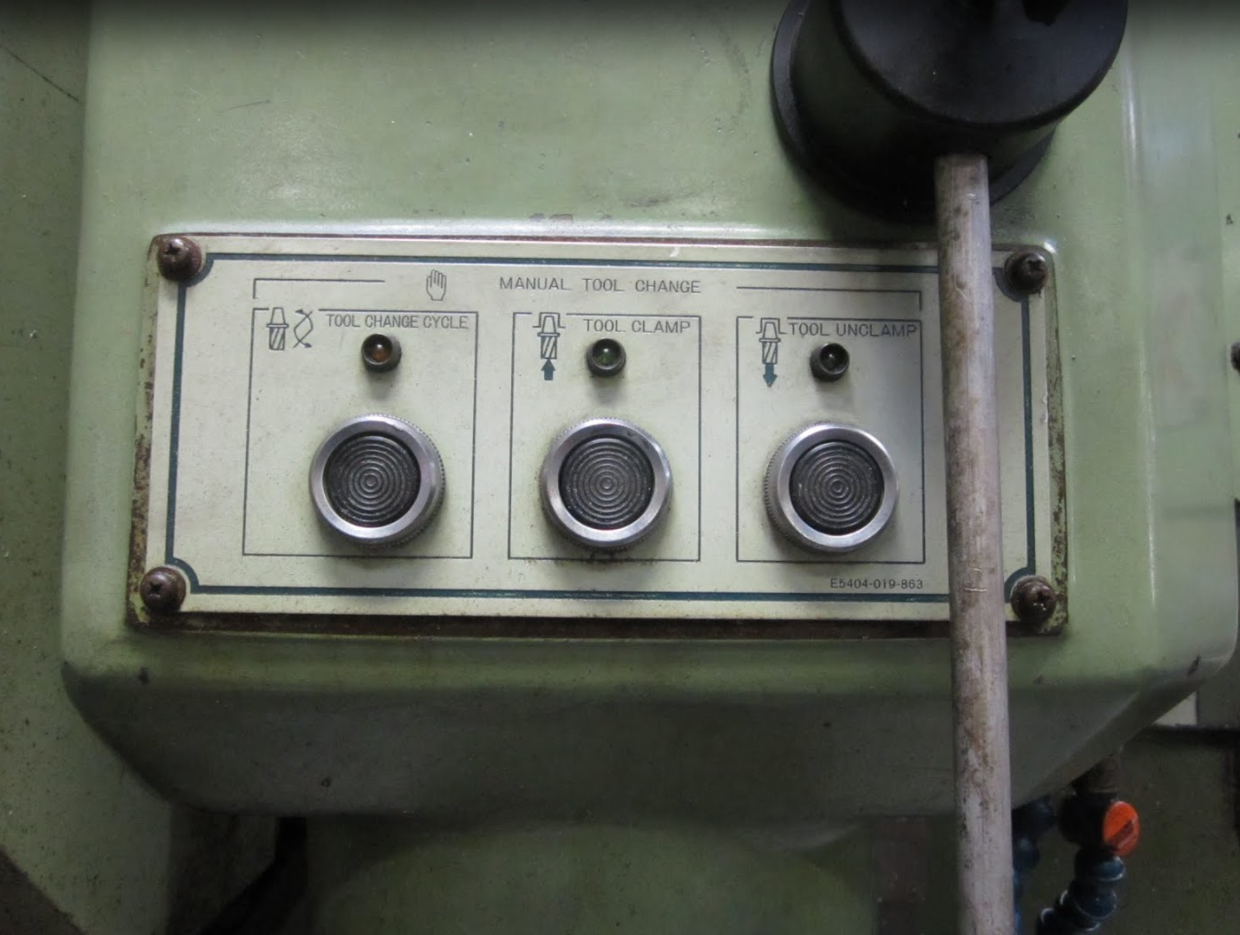

Tool changer controls at front of tool

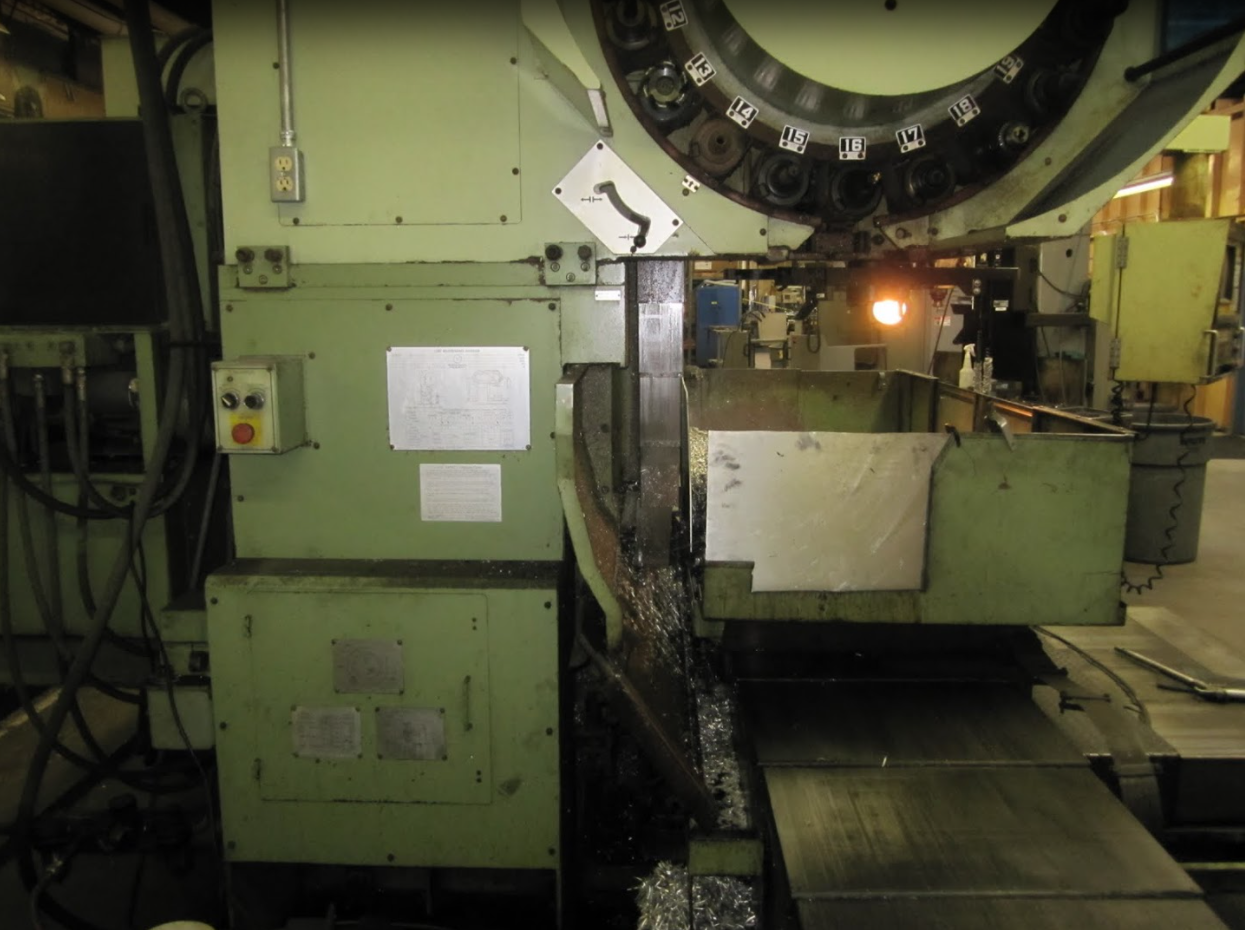

Left side of machine showing tool changer

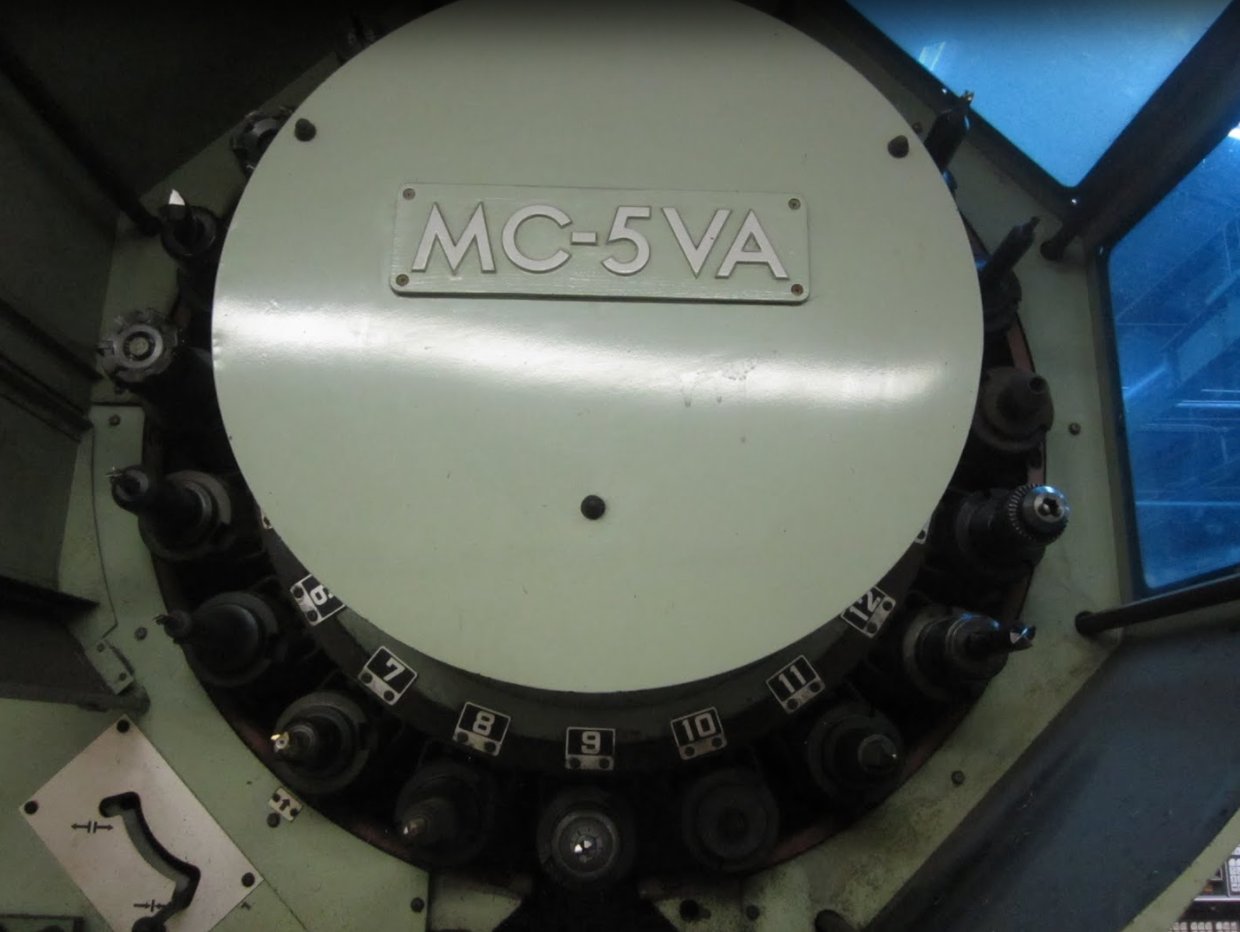

Tool turret

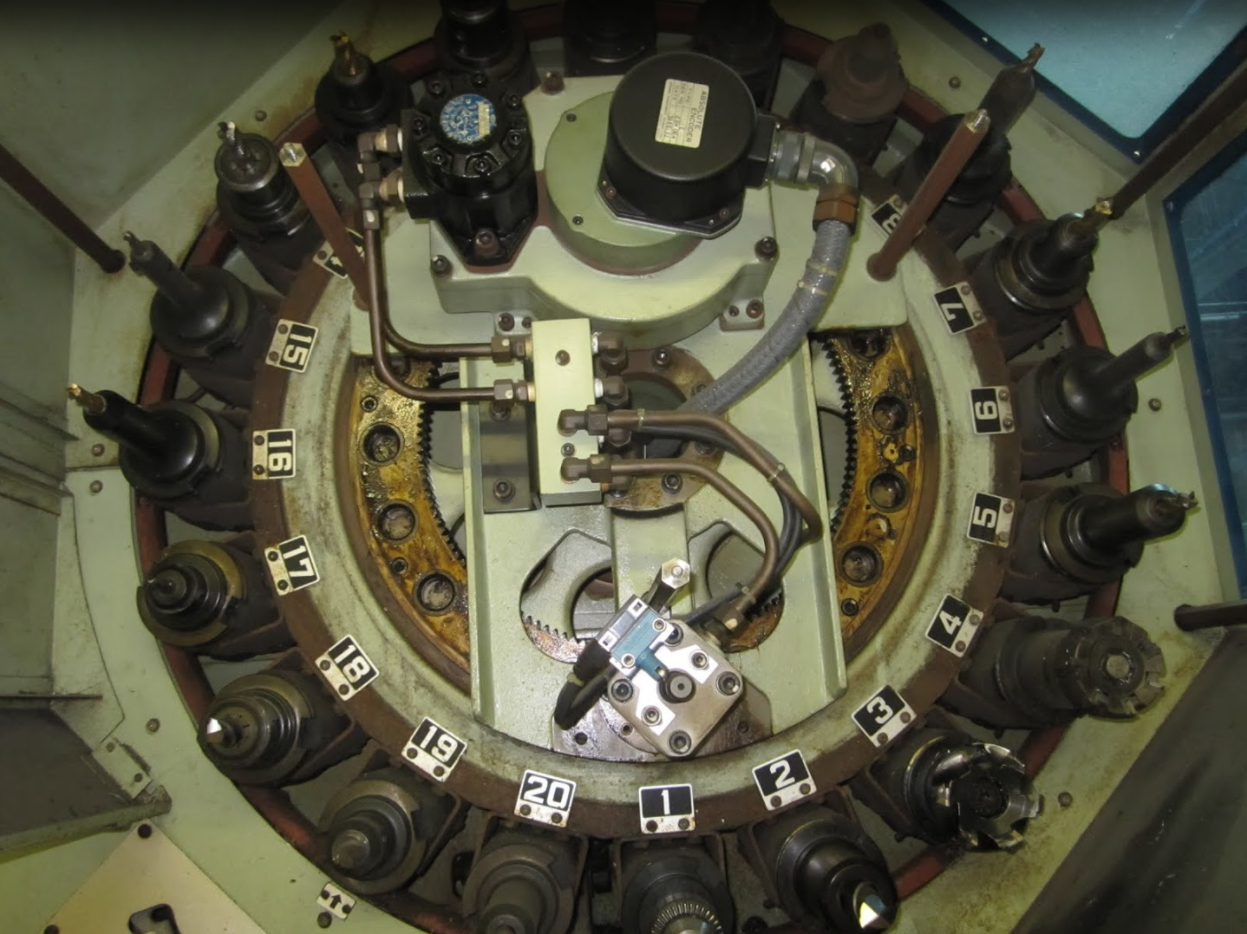

Tool turret with cover removed showing hydraulic actuators & encoders

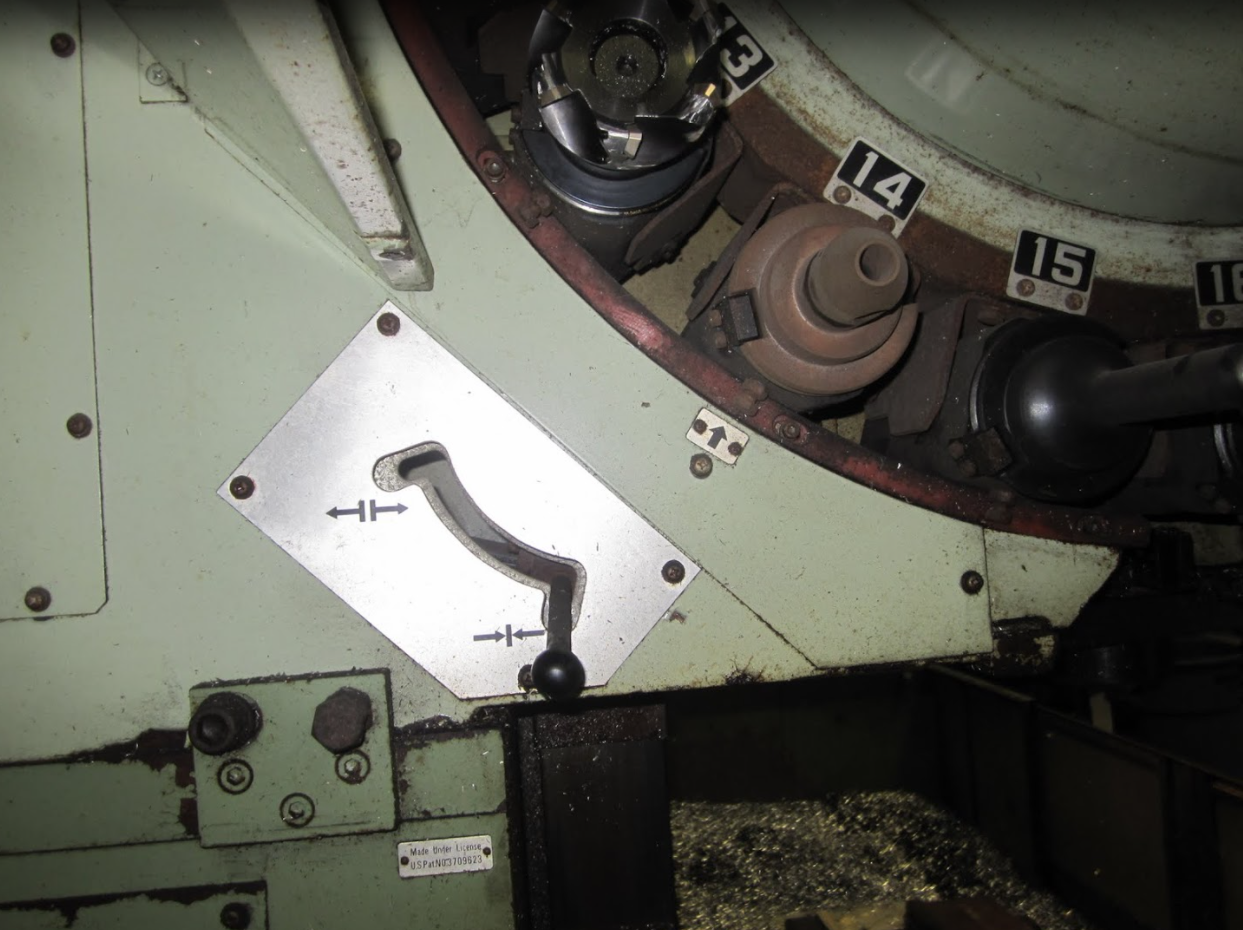

Manual tool loading station

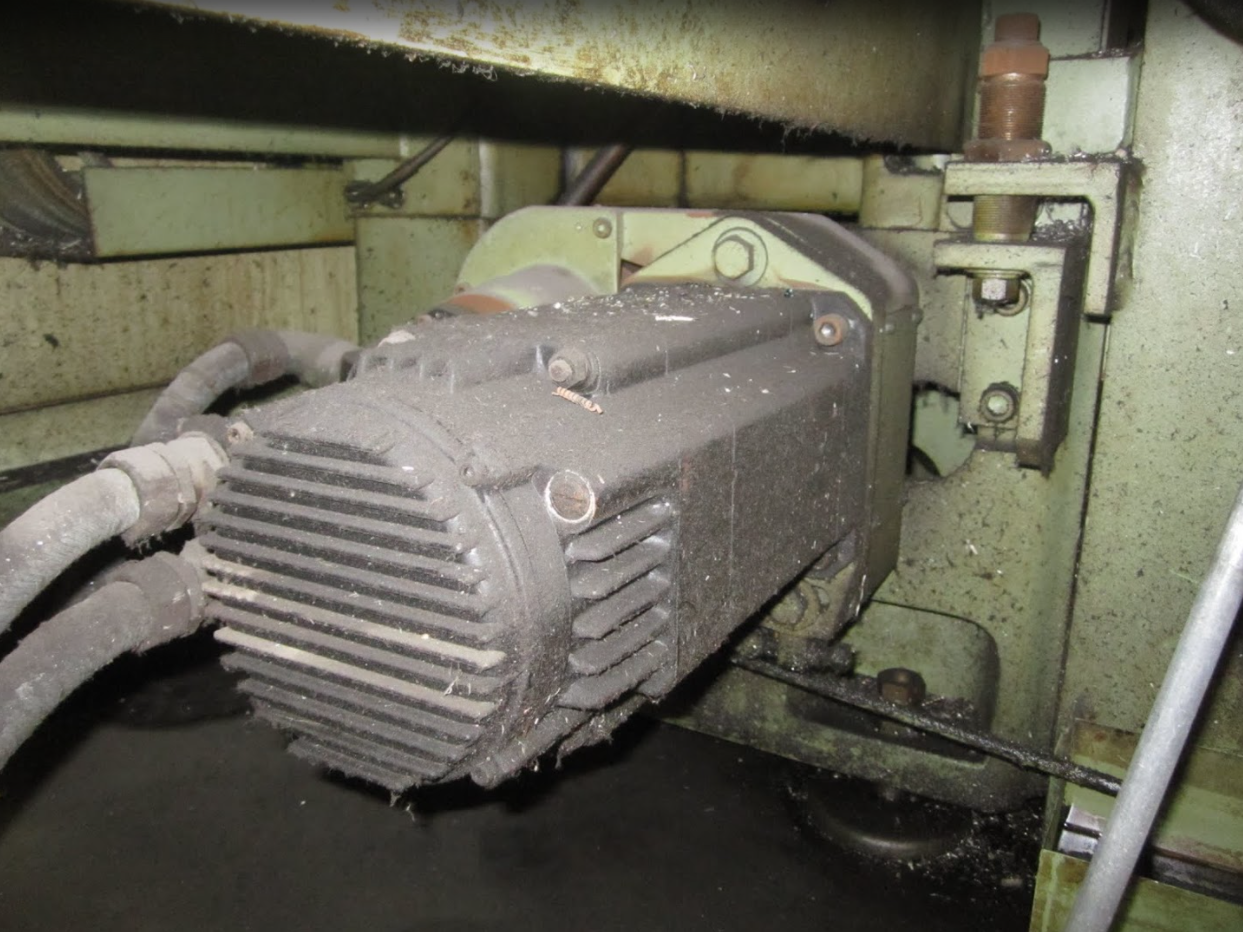

Original axis motor. Motor technology has improved dramatically in the past few decades justifying replacement

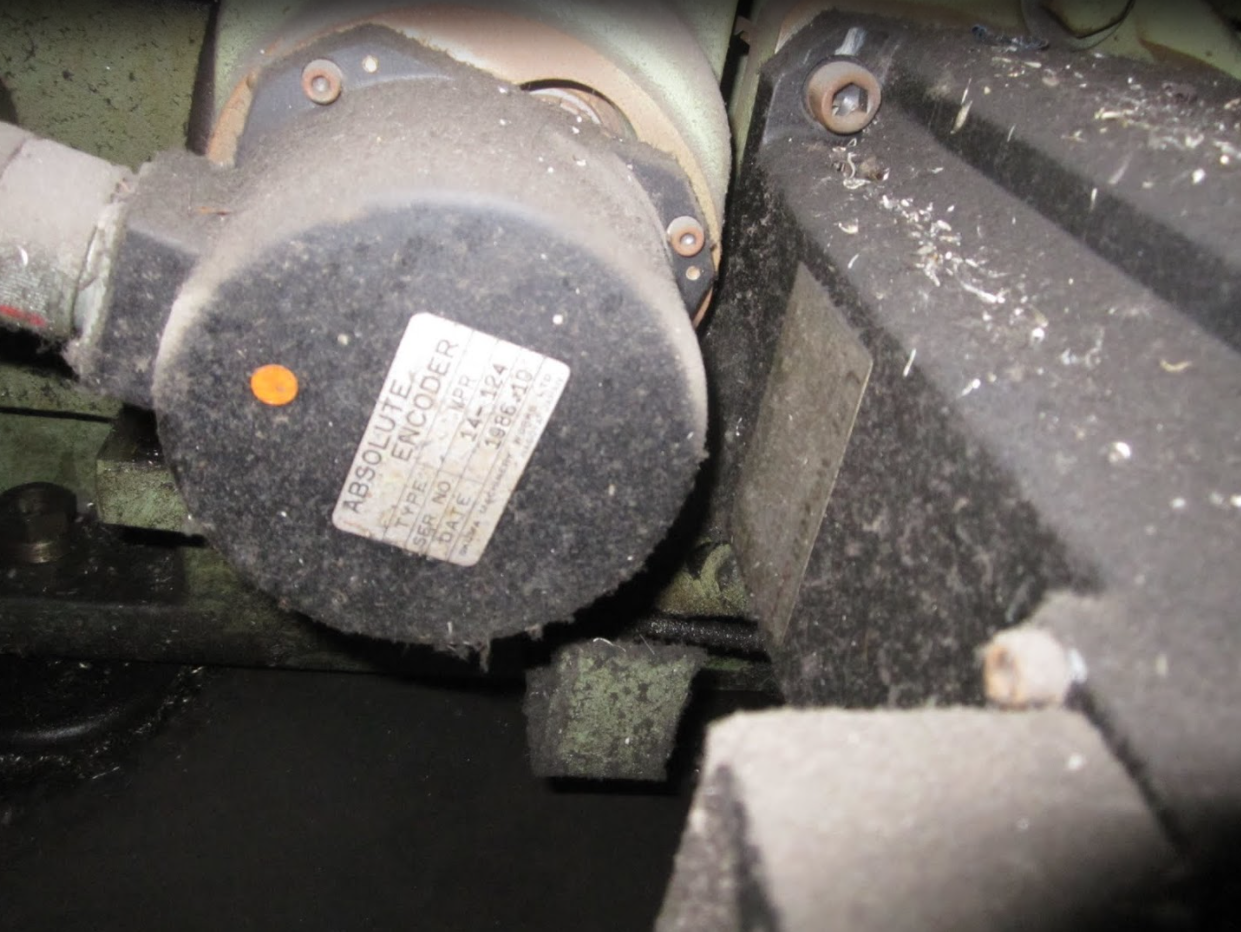

Original axis encoder

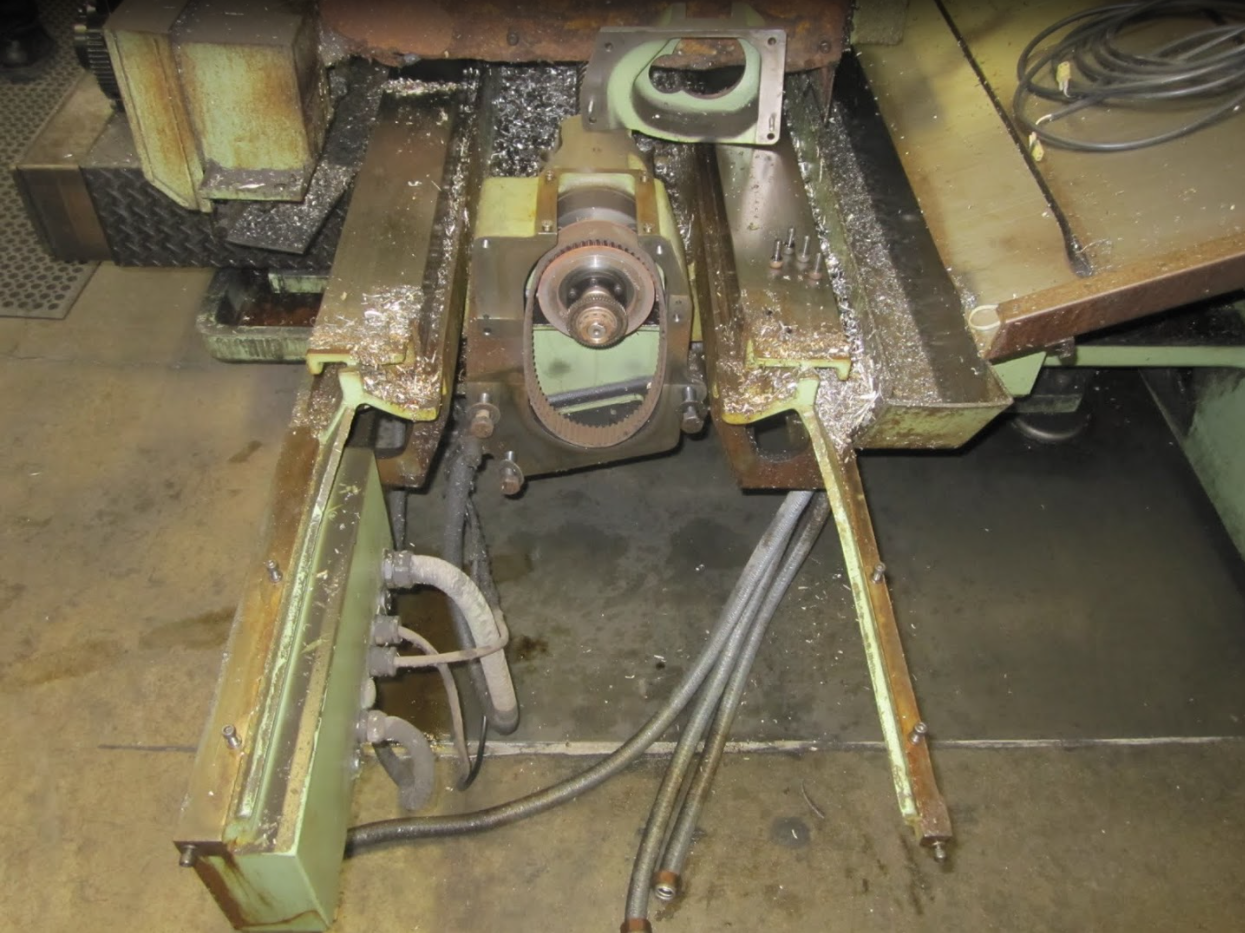

Axis motor removed showing drive gear

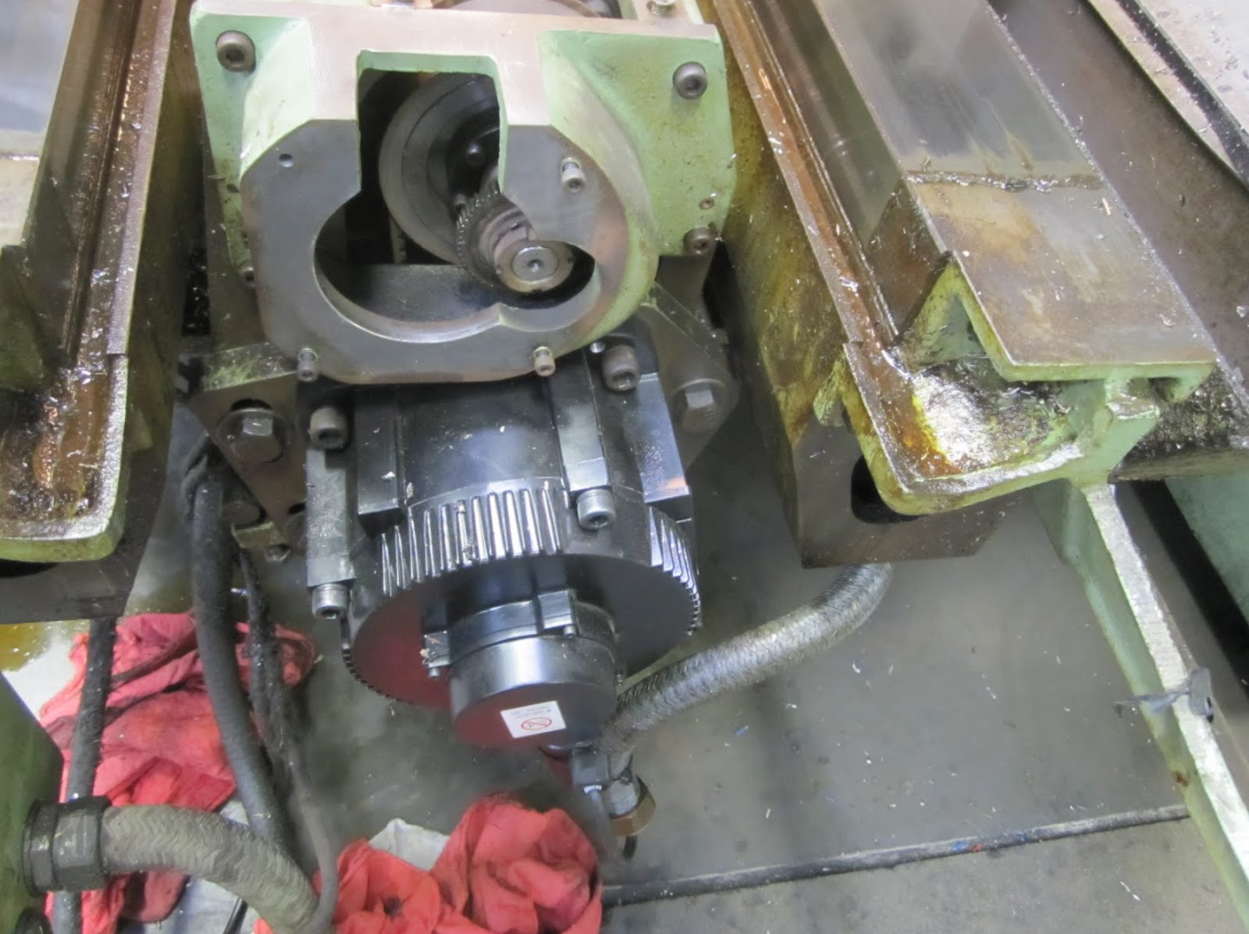

Axis motor mount bracket removed showing business end of the ball screw
CNC control cabinet door stripped of old components

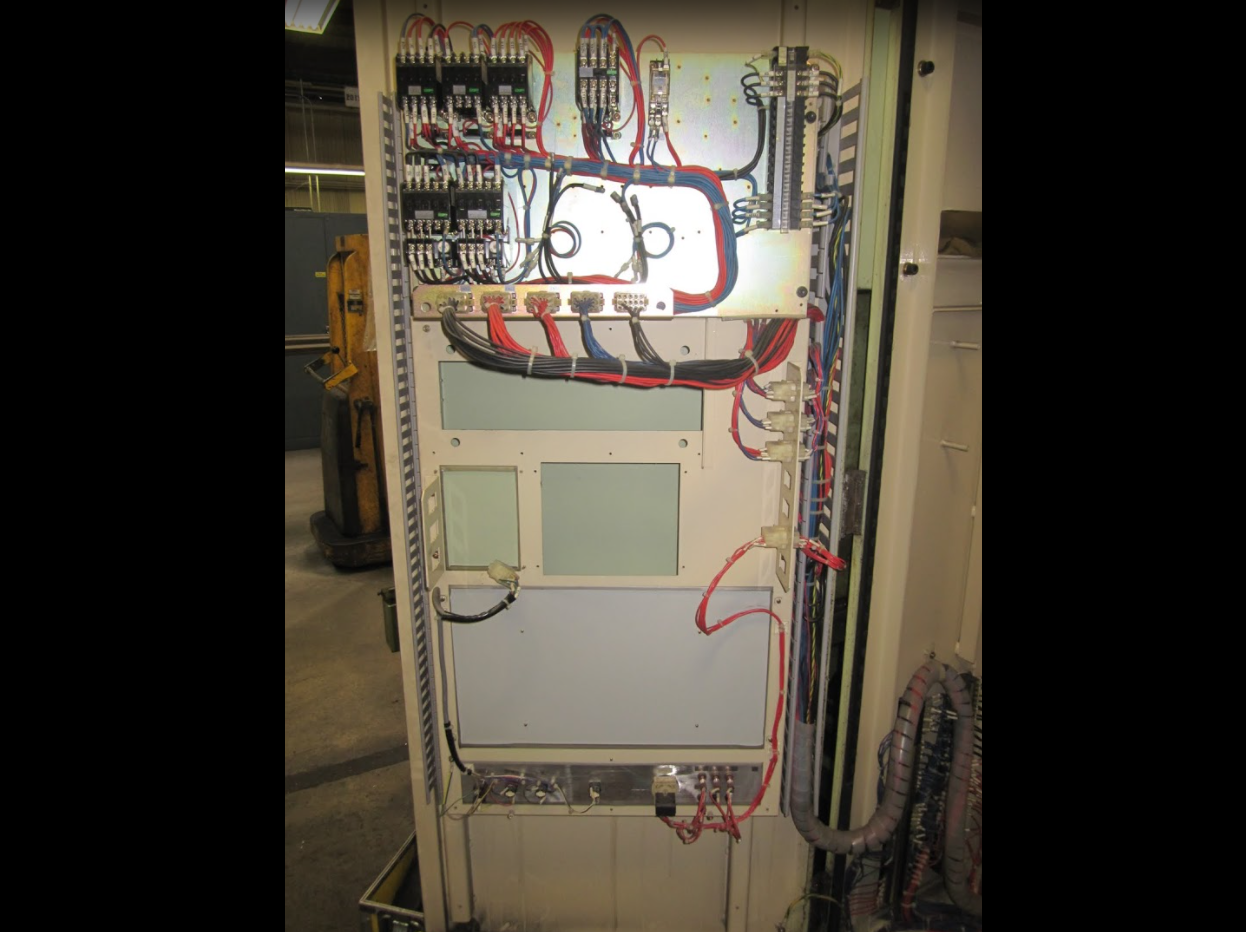

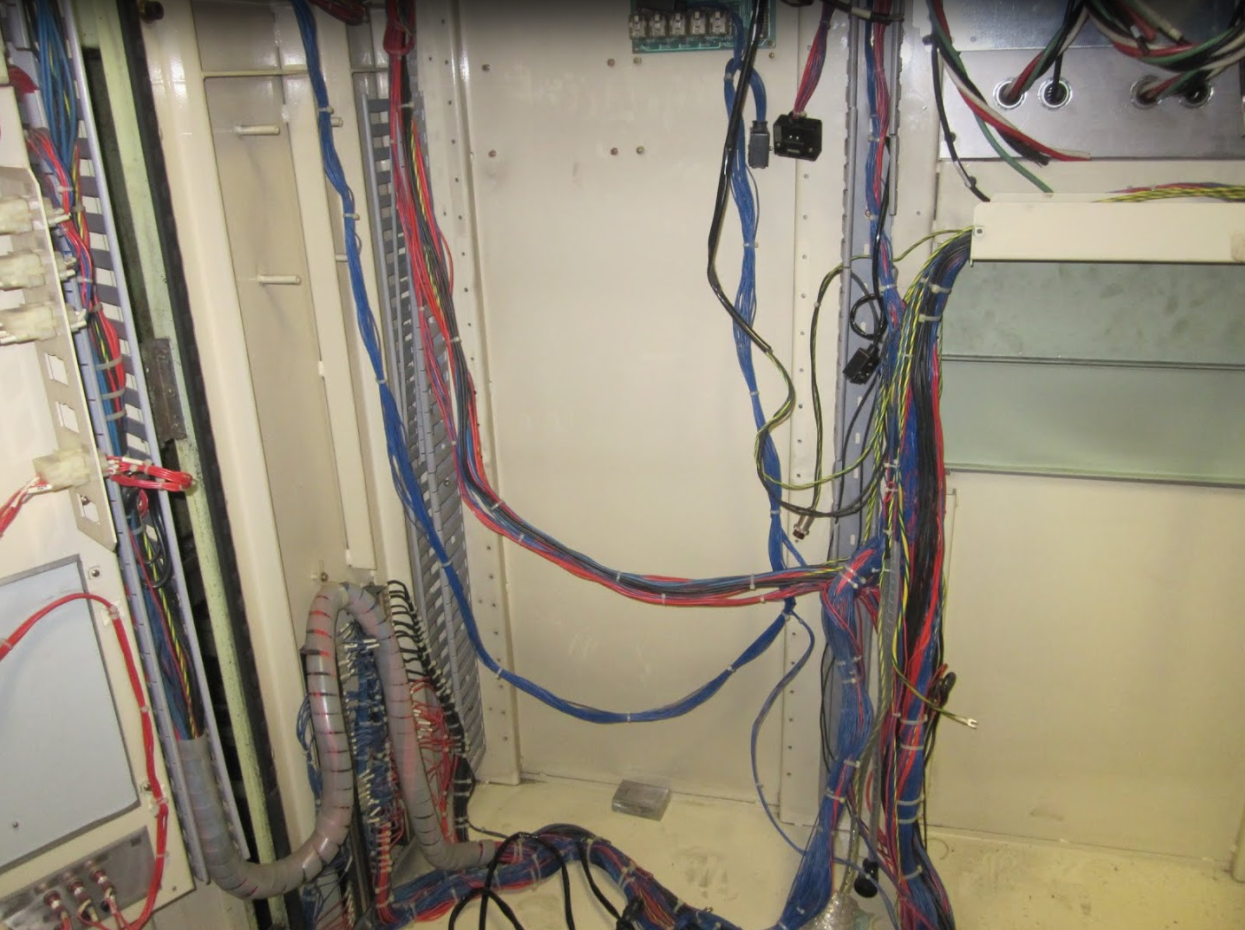

CNC control cabinet subplate stripped of old components

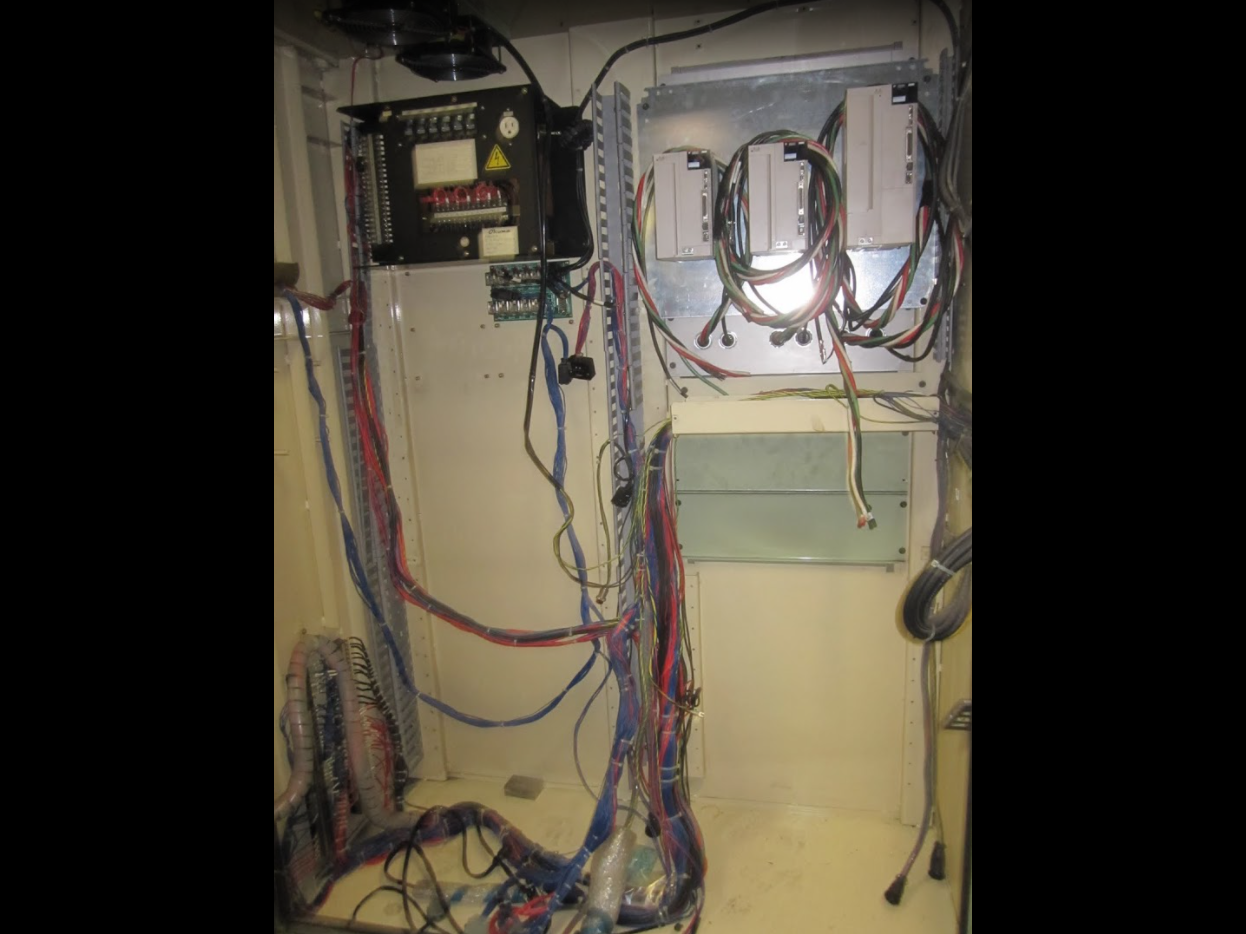

CNC control cabinet subplate stripped of old components. AC servos installed

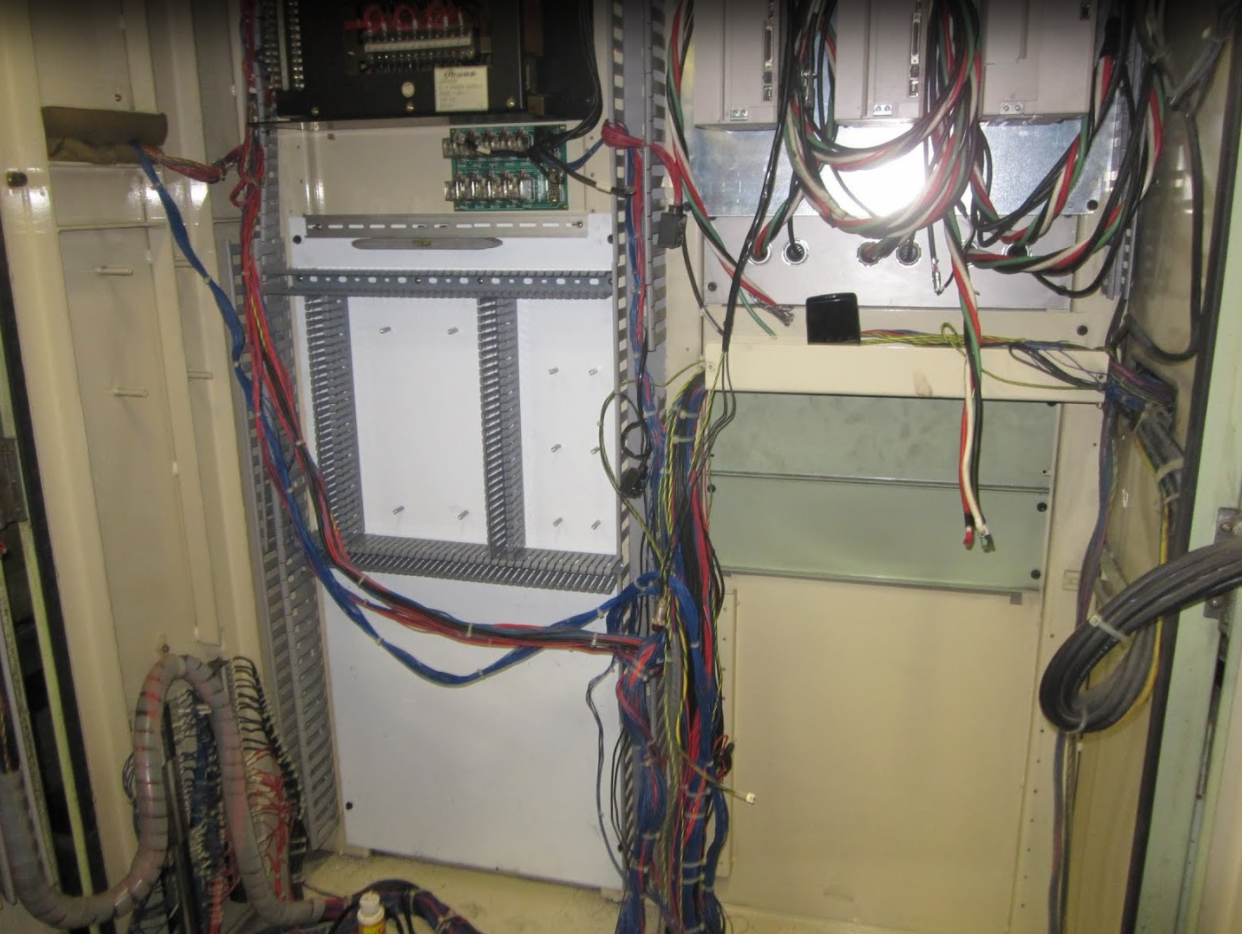

CNC control cabinet subplate rewired and ready for the new brains to be installed

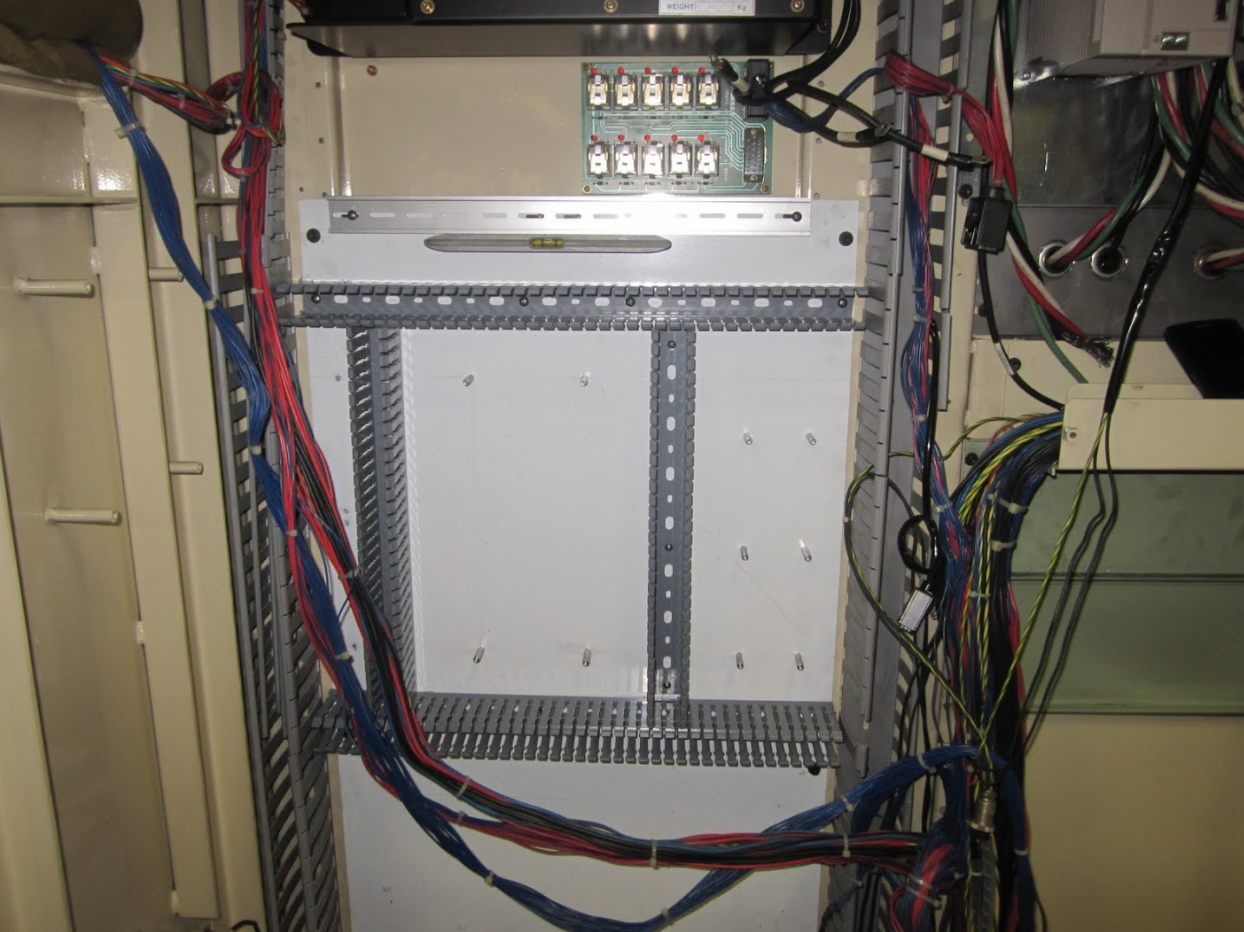

CNC control cabinet subplate rewired and ready for the new components

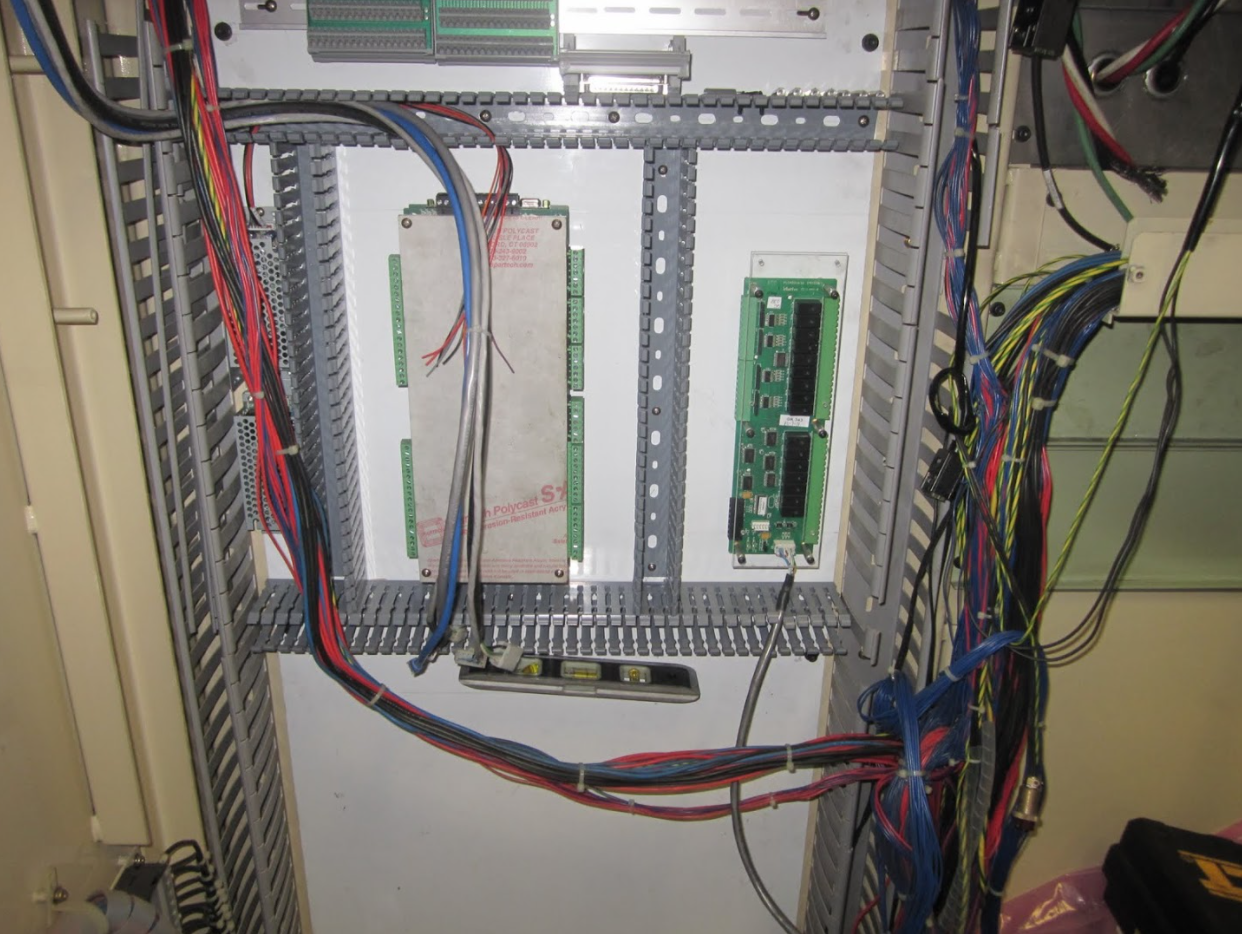

Cable duct in place on the subplate where the new CNC control will go
New CNC installed ready for wiring. Level is used to make sure everything is neat and proper.
New CNC controller partially wired up

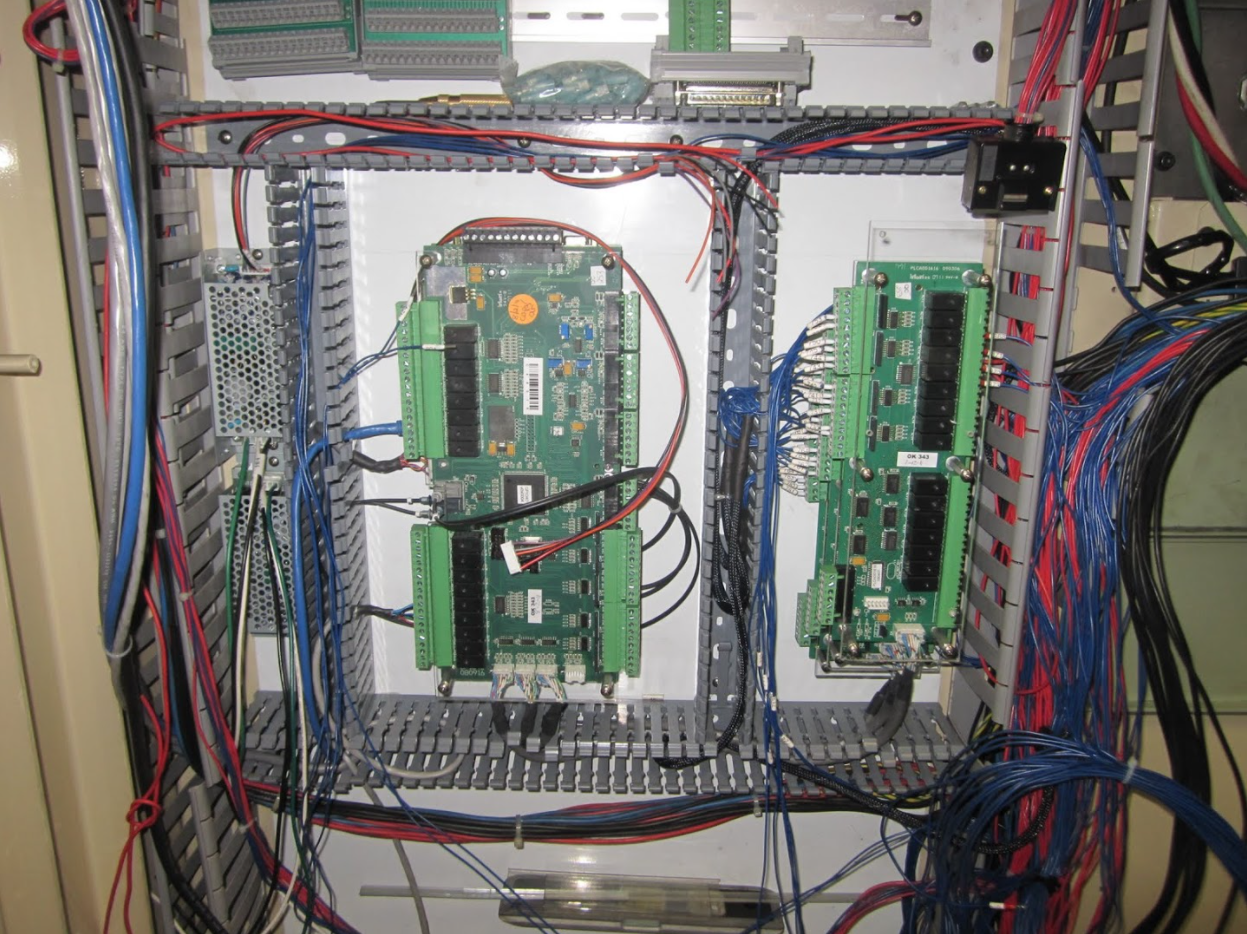

New CNC controller mostly wired up

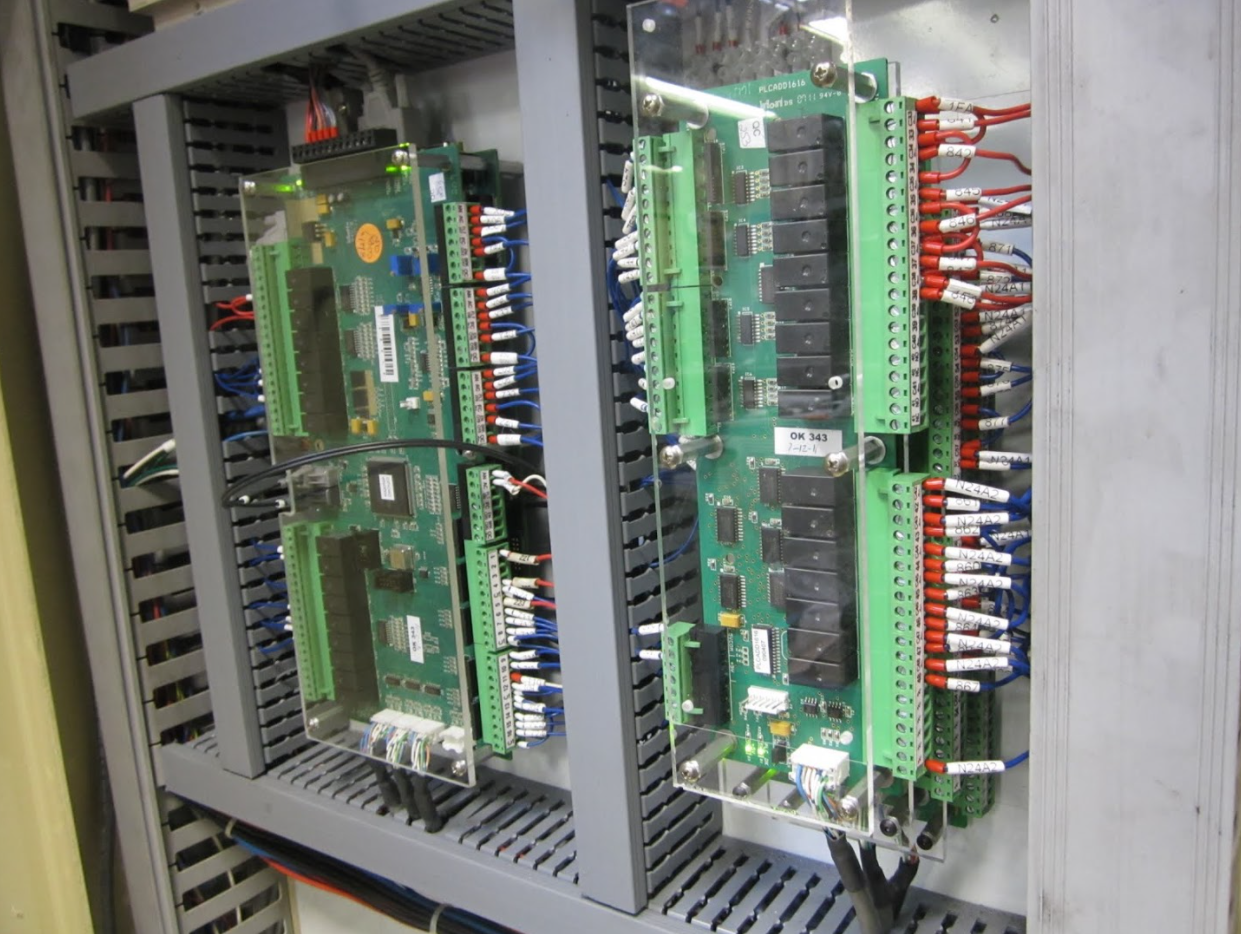

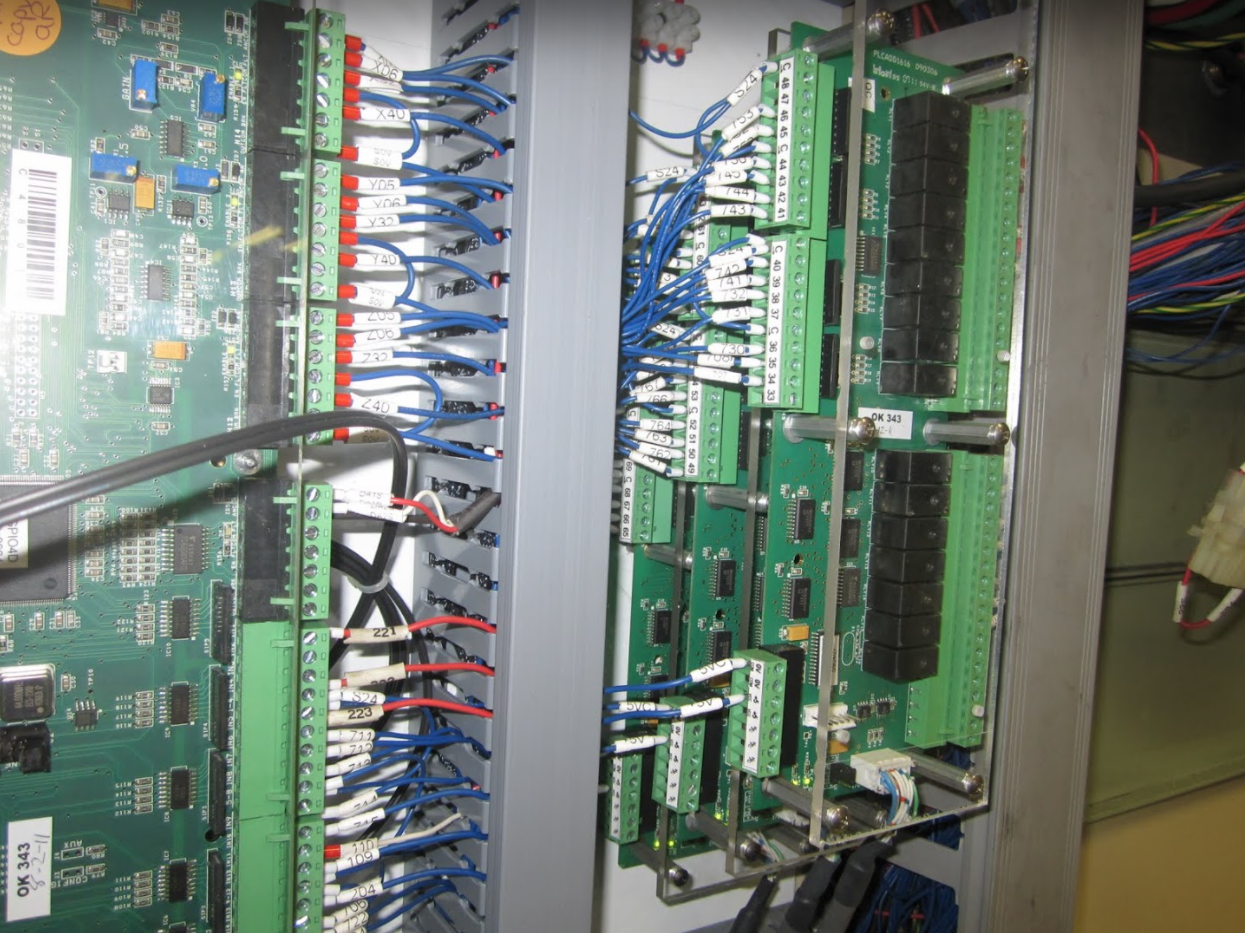

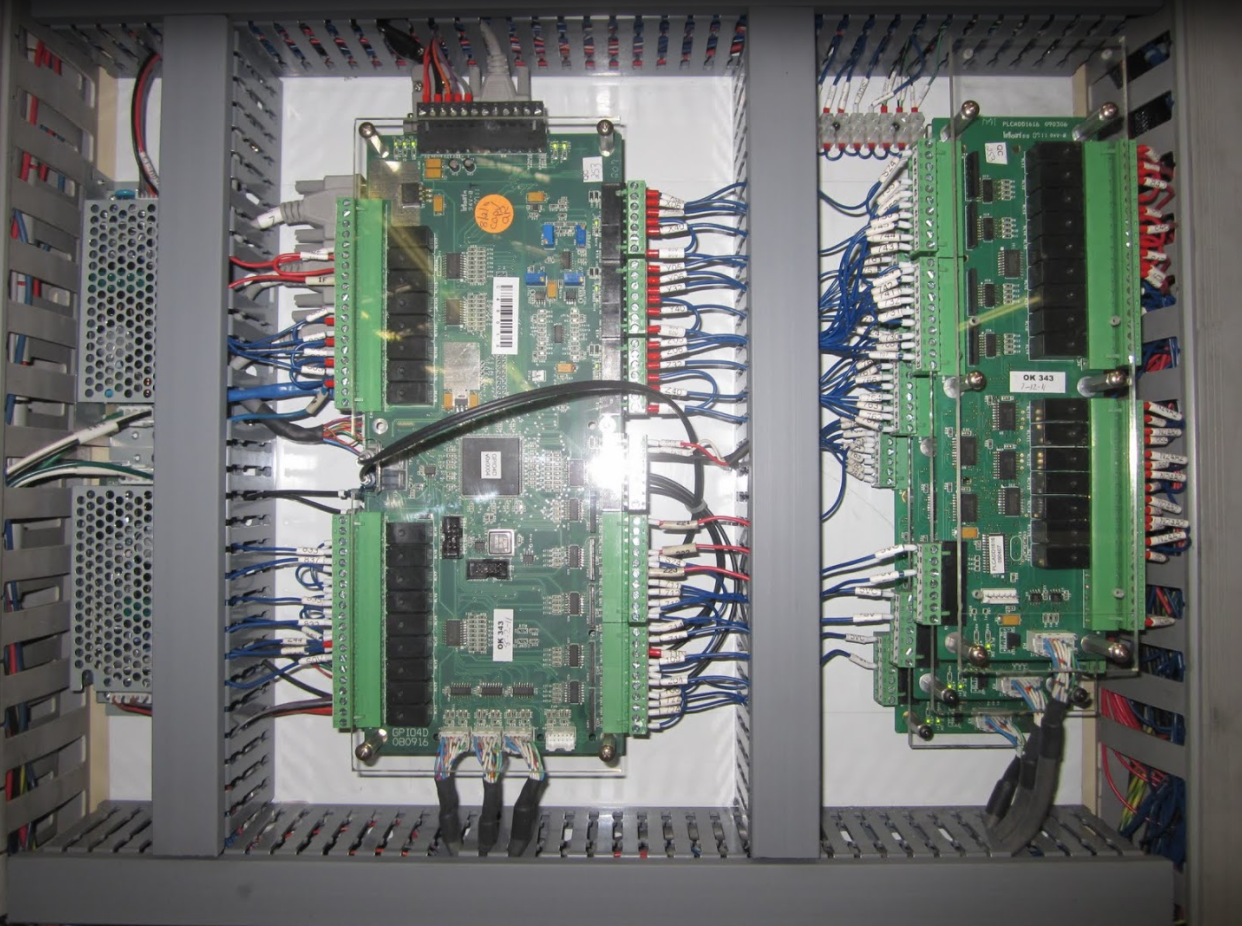

Right oblique view of new CNC control cards
Left oblique view of new CNC control cards

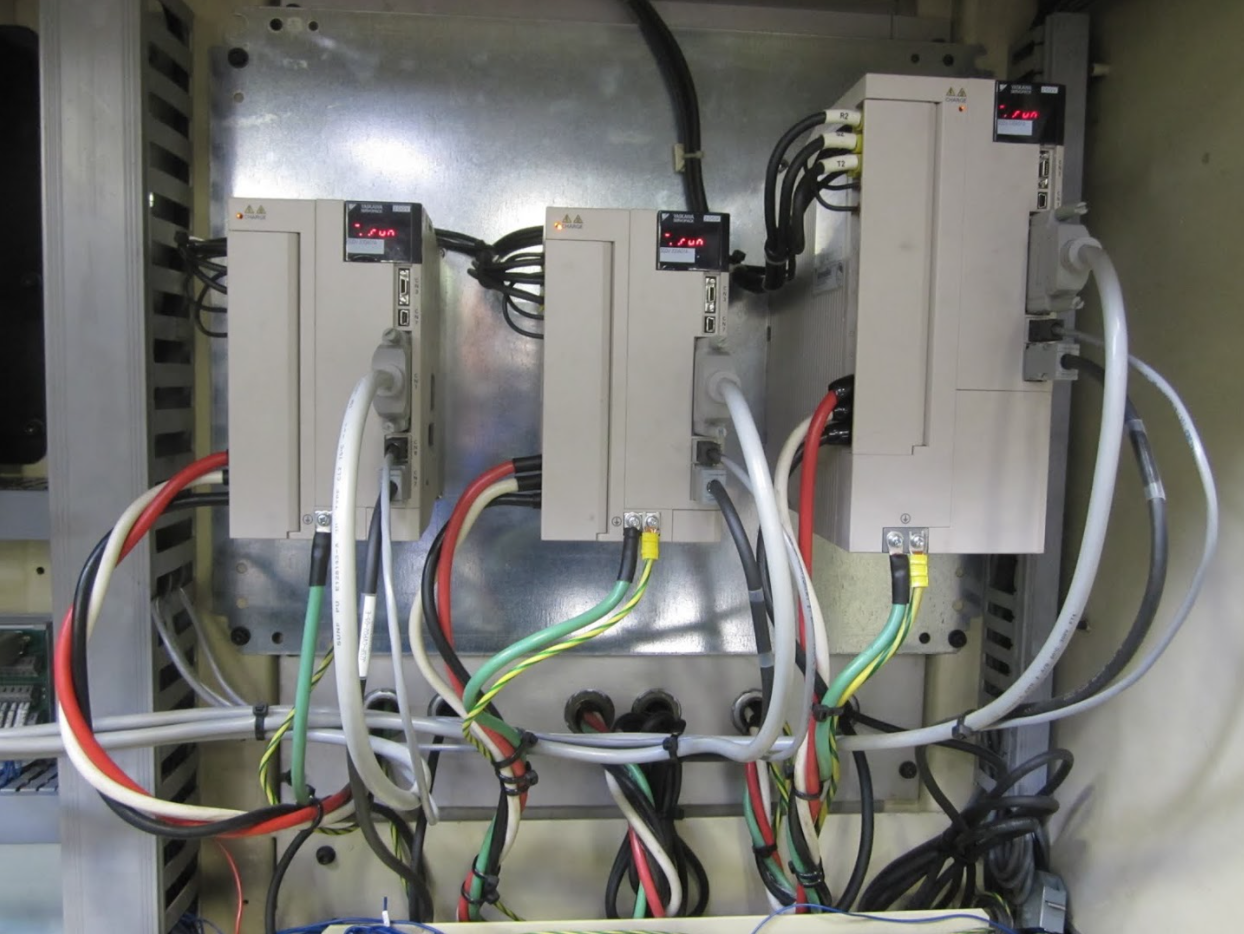

Close up of new Yaskawa AC servo drives. Power electronics has improved efficiency steadily each year justifying replacements.

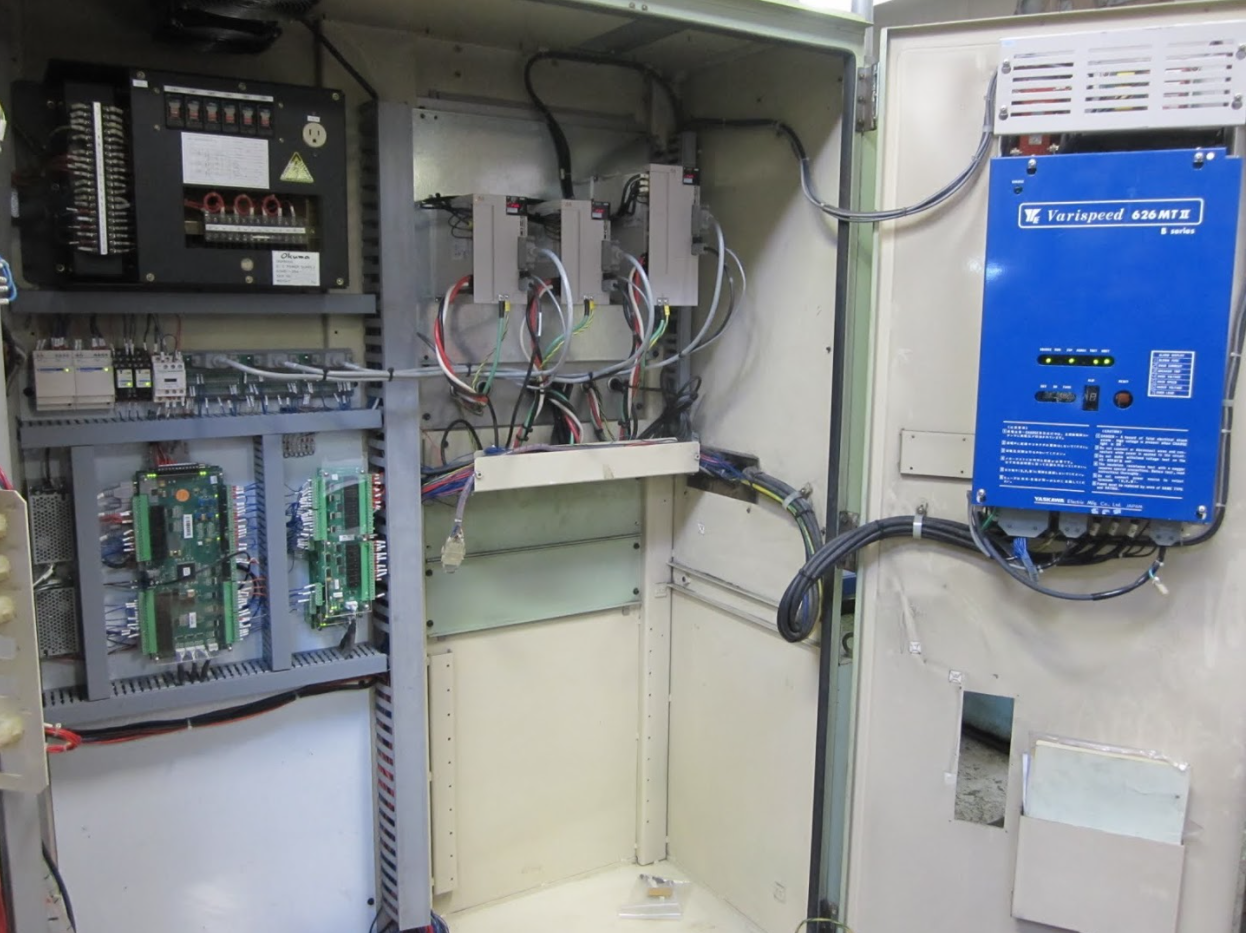

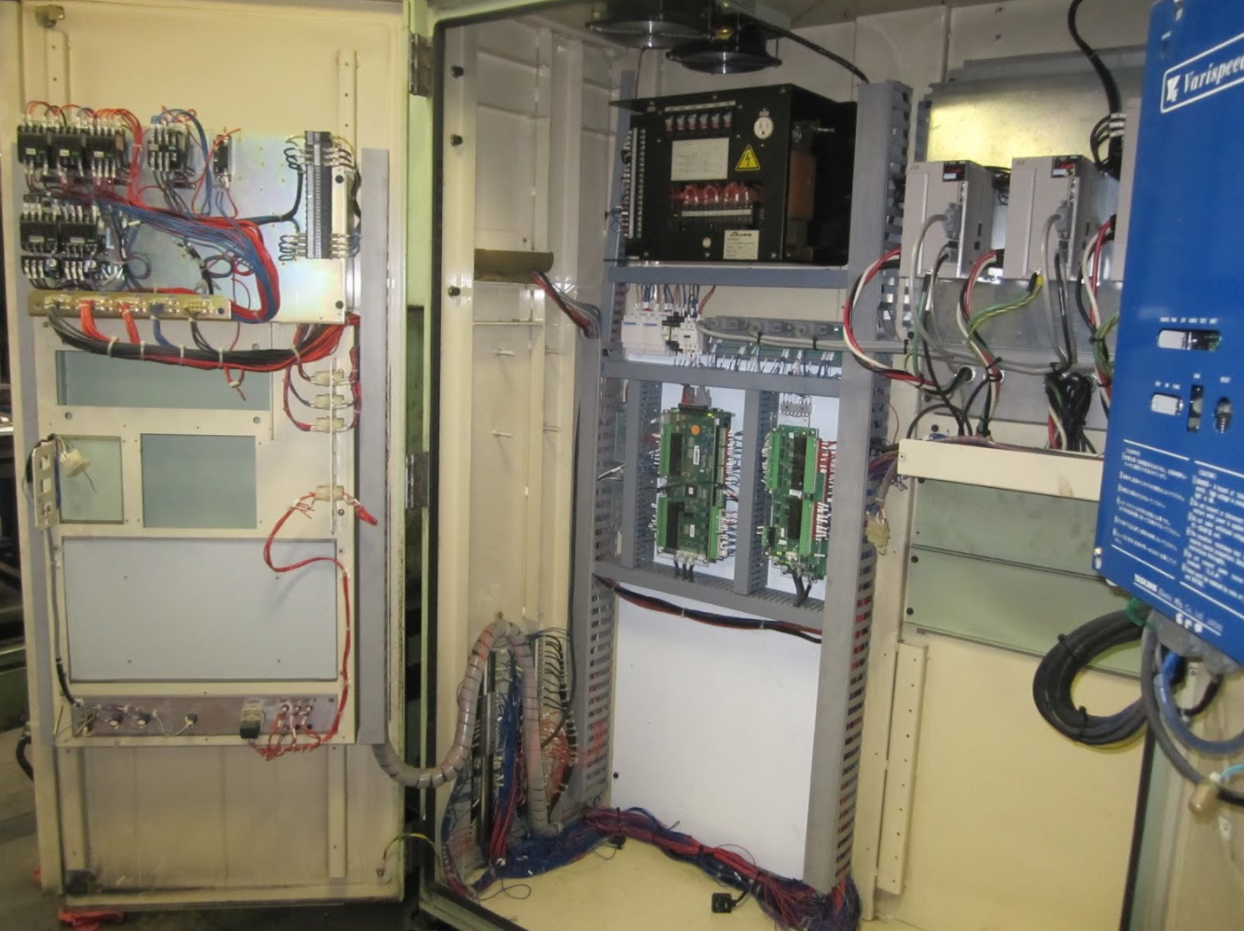

Most of the new electronics installed and wired

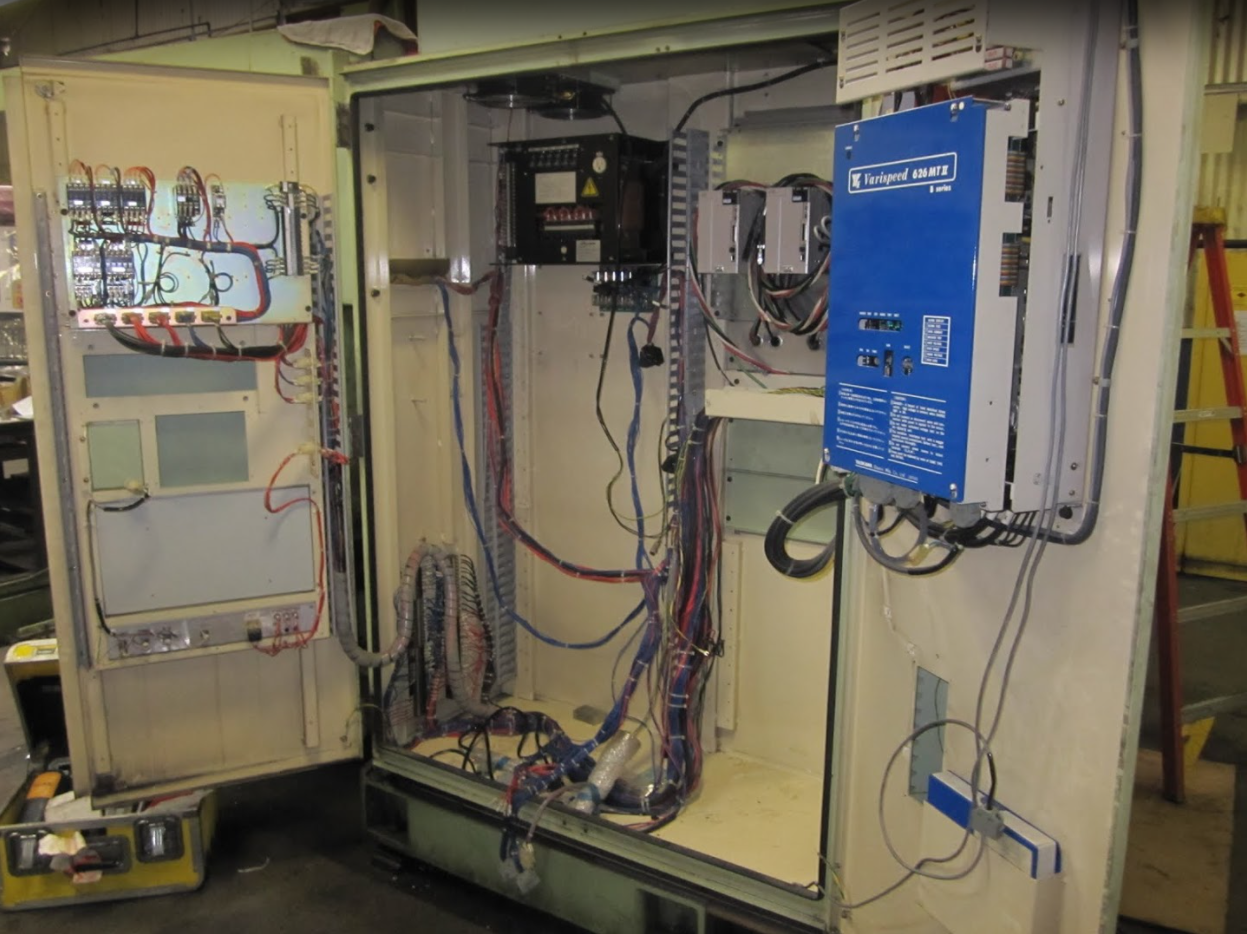

Spindle Variable Frequence Drive wired to new electronics

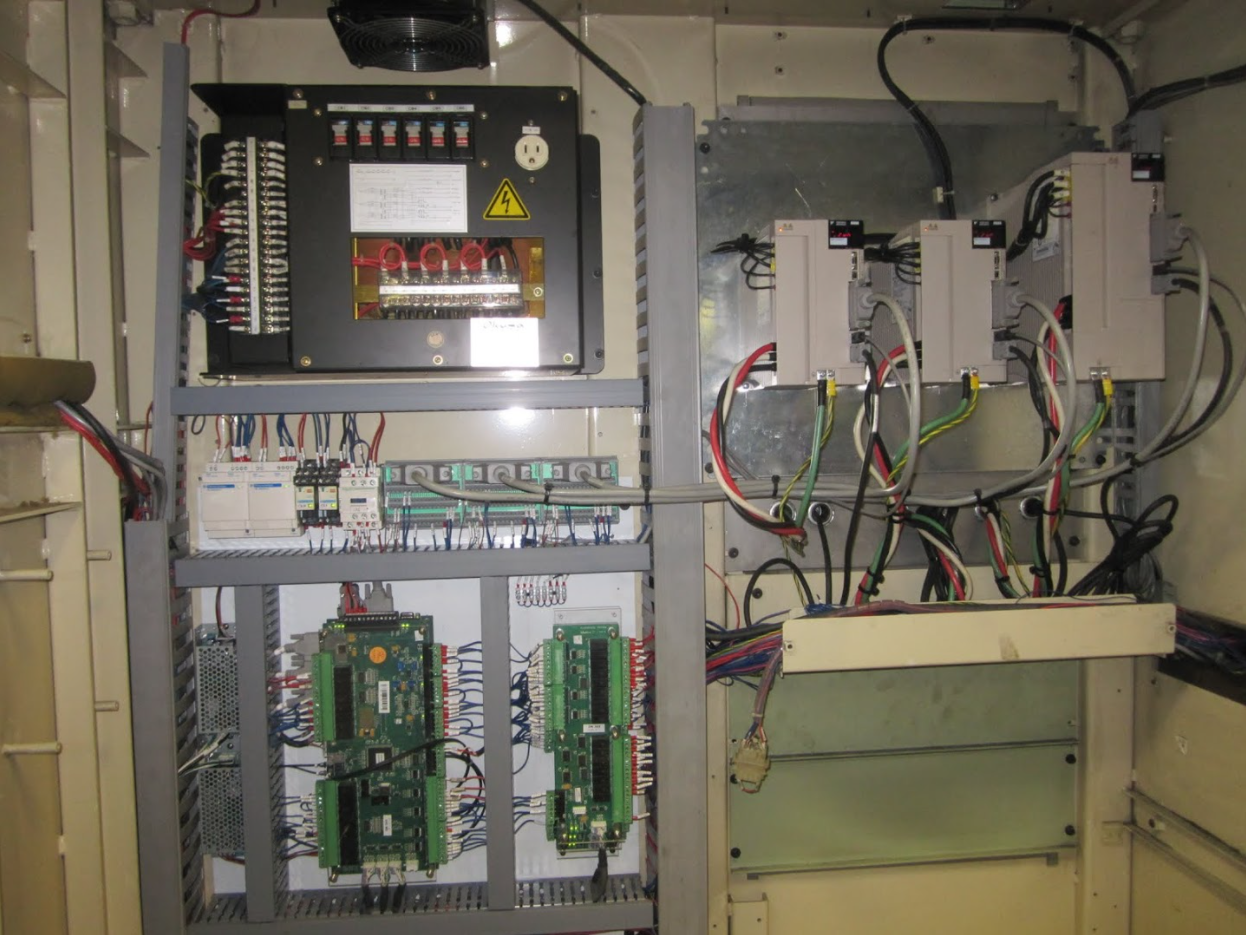

Final control cabinet wiring in place and ready for dressing
HMI pendent arm with old panel removed

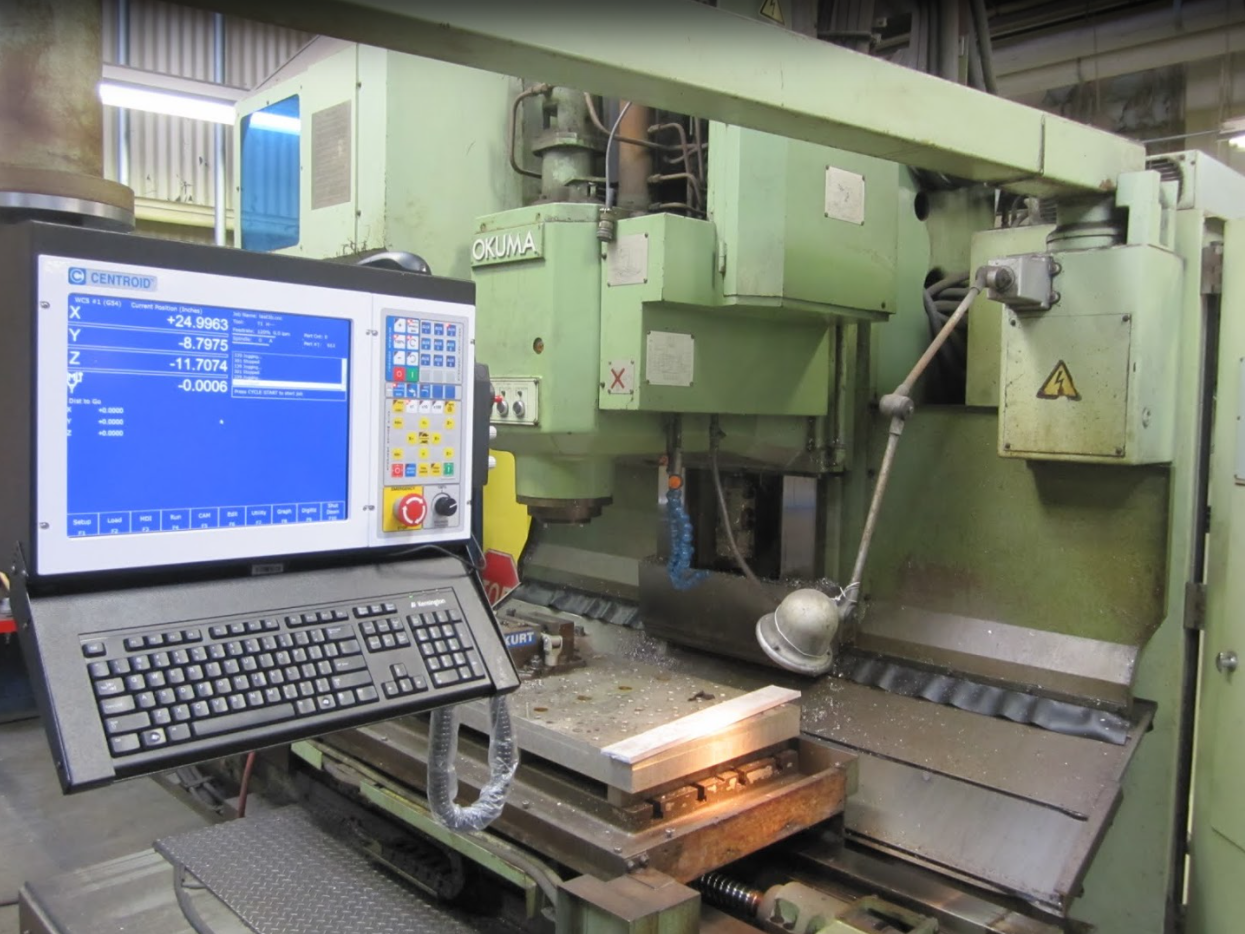

New HMI Human Machine Interface pendant installed

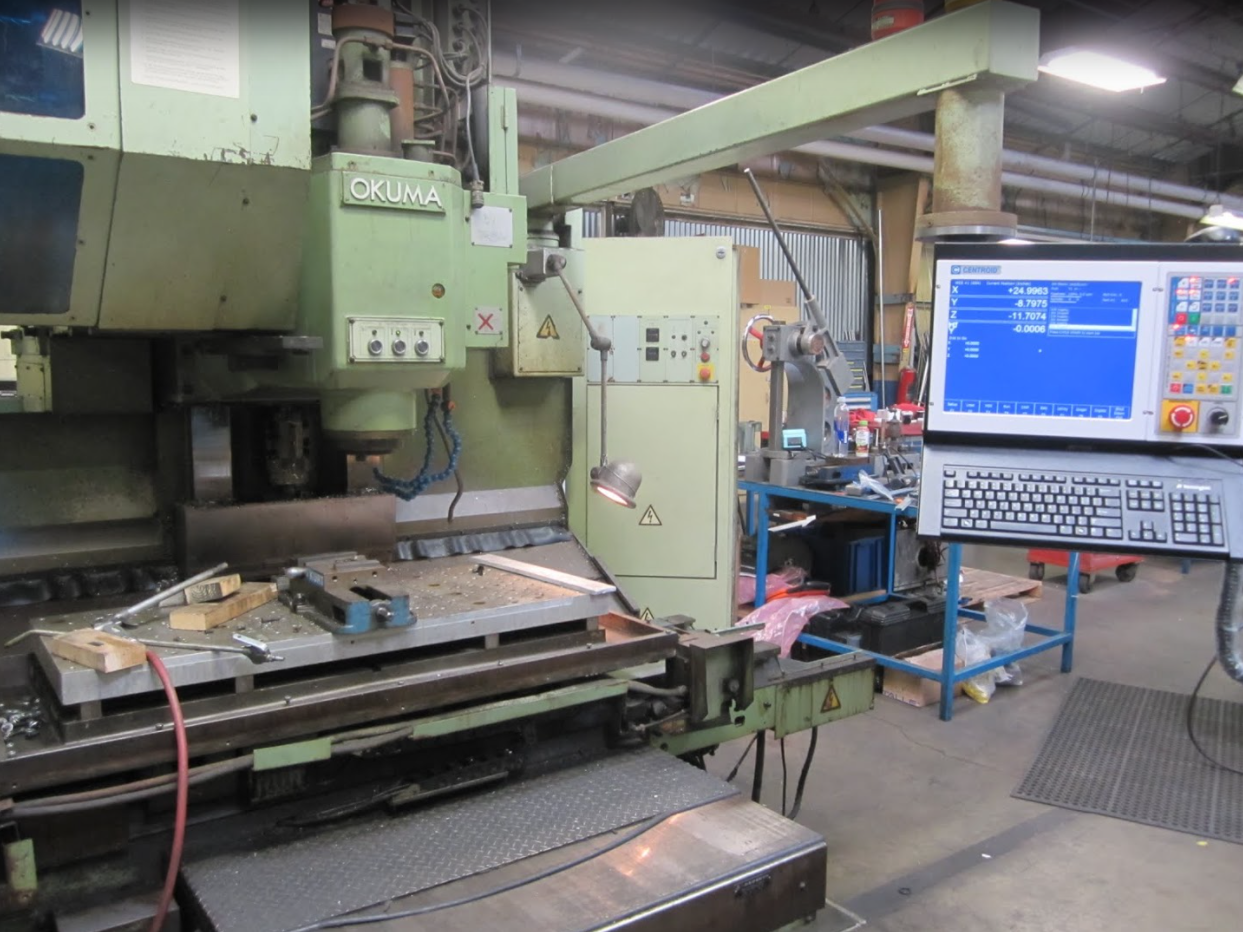

Finished tool undergoing final acceptance testing
Diagram of the control system design. Note that factory prices may change. Labor, drives, motors, and other items are not included in the prices listed.
